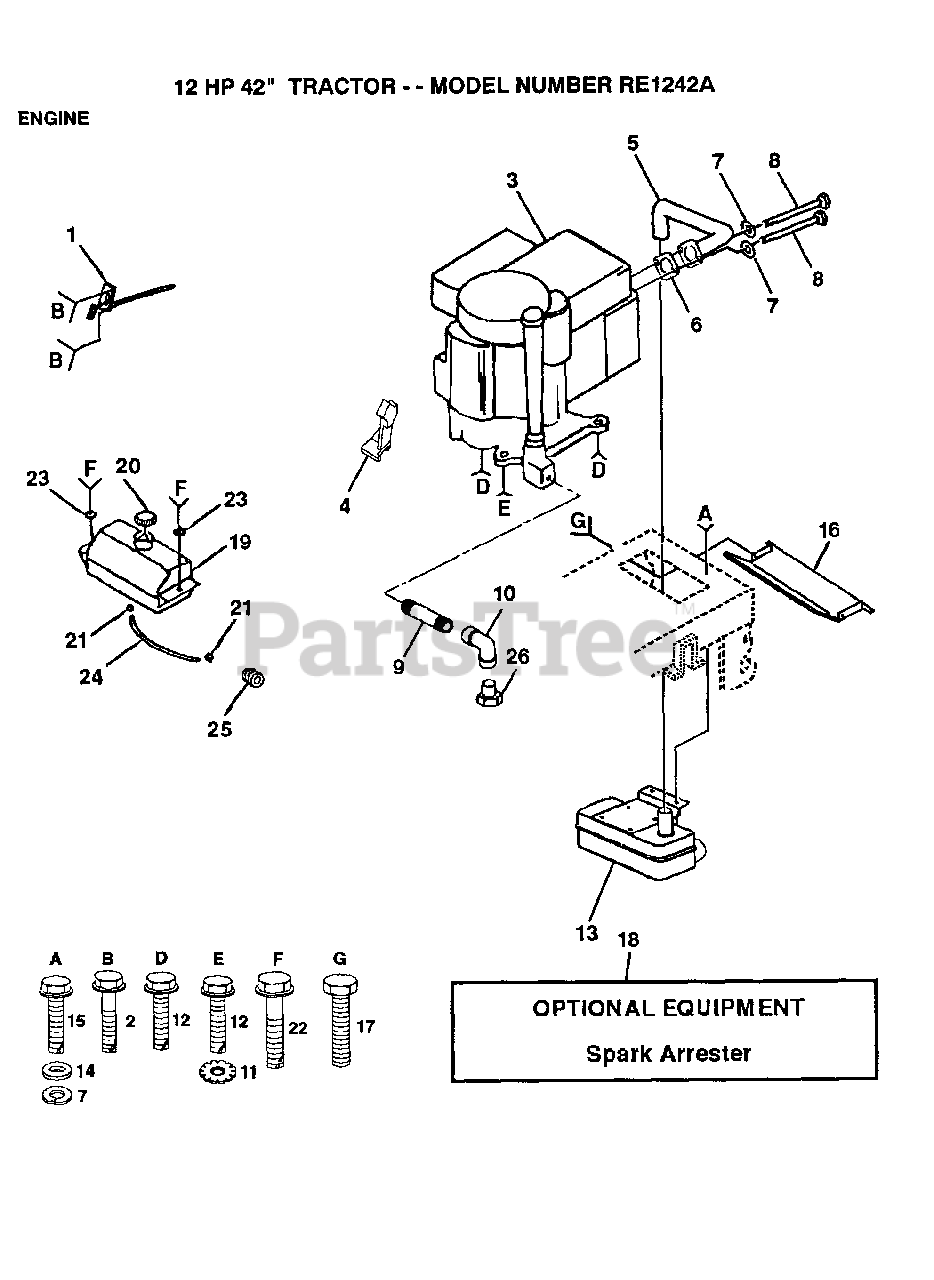

RE 1242 A - Electrolux/AYP Lawn Tractor ENGINE Parts Diagram

Lawn Tractor

ENGINE Parts Diagram

  • Title
1

Electrolux/AYP 132623

SUB= 532132623

$

$

Not available

2

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

3

REFER TO IMAGE

$

$

Not available

4

Electrolux/AYP 133097

SUB= 532133097

$

$

Not available

5

Electrolux/AYP 123074X

PIPE EXHAUST

$30.99

$

Usually ships in 3-10 days

0

6

$

$

Not available

7

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 71070510

SCREW LT
(Superseded to 871070510)

$

$

Not available

9

Electrolux/AYP 13280324

PIPE NIPPLE
(Superseded to 813280324)

$

$

Not available

10

Electrolux/AYP 13200300

ELBOW
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

11

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490620

SCREW
(Superseded to 817060620)

$7.49

$

In Stock, Qty 11

0

13

Electrolux/AYP 123075X

MUFFLER EUROPE

$

$

Not available

14

Electrolux/AYP 19112016

WASHER
(Superseded to 582732301)

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

17

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 14

0

18

Electrolux/AYP 123110X

SPARK ARREST KIT
(Superseded to 532123110)

$

$

Not available

19

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 17490412

SCREW HEX CRT

$2.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 19091416

WASHER
(Superseded to 819091416)

$6.49

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

25

Murray 124028X

SUB= 532124028

$

$

Not available

26

REFER TO IMAGE

$

$

Not available
