RE 1238 C - Electrolux/AYP Lawn Tractor CHASSIS AND ENCLOSURE Parts Diagram

Lawn Tractor

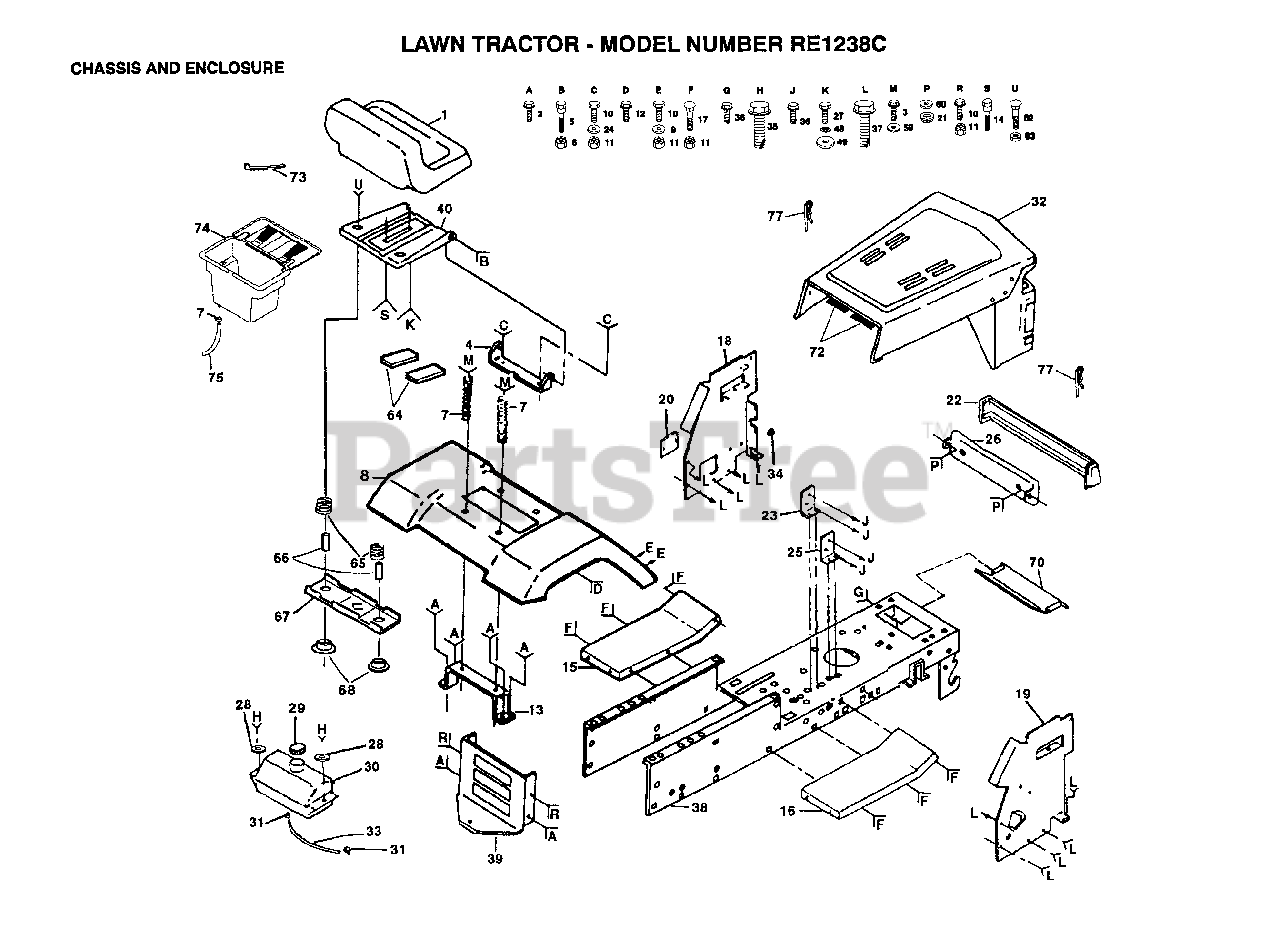

CHASSIS AND ENCLOSURE Parts Diagram

  • Title
1

$

$

Not available

2

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

3

Electrolux/AYP 17490616

SCREW GTV
(Superseded to 817000616)

$7.49

$

In Stock, only 2 left!

0

4

$

$

Not available

5

Electrolux/AYP 105529X

SUB= 139888
(Superseded to 532139888)

$6.49

$

In Stock, only 1 left!

0

6

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

$

$

Not available

9

Electrolux/AYP 19131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

10

Electrolux/AYP 74760612

SUB= 74780612
(Superseded to 874760612)

$4.99

$

In Stock, only 2 left!

0

11

Electrolux/AYP 73680600

SUB= 73690600
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

13

$

$

Not available

14

Electrolux/AYP 127018X

"BOLT,SHOULDER"
(Superseded to 532127018)

$7.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 105476X419

FOOTREST LH
(Superseded to 532182874)

$43.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 105475X419

FOOTREST
(Superseded to 179717X550)

$11.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 72110606

BOLT
(Superseded to 872110606)

$4.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 122795X

PANEL DASH LH

$5.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 124031X

SUB= 155934X010

$

$

Not available

20

Electrolux/AYP 121794X

COVER ACCESS
(Superseded to 532121794)

$

$

Not available

21

Electrolux/AYP 108067X

PAL NUT LT
(Superseded to 532108067)

$

$

Not available

22

$

$

Not available

23

Electrolux/AYP 130890

SWITCH BRACKET

$

$

Not available

24

Electrolux/AYP 19131210

WASHER
(Superseded to 819131210)

$

$

Not available

25

Electrolux/AYP 108236X

BRACKET LT
(Superseded to 532108236)

$2.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 132257

SUB= 918132257
(Superseded to 132257X417)

$

$

Not available

27

Electrolux/AYP 74780814

BOLT
(Superseded to 871110814)

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 19131612

WASHER GT
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 123549X

SUB= 158990
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 109202X

TANK.FUEL.LT.
(Superseded to 532184900)

$45.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 123487X

HOSE CLAMP
(Superseded to 532123487)

$7.49

$

In Stock, only 4 left!

0

32

Electrolux/AYP 126349X419

HOOD&GRILL ASSY

$113.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 8548R

FUEL LINE T
(Superseded to 532008548)

$7.99

$

In Stock, only 1 left!

0

34

Electrolux/AYP 9151R

SNAP BUSHING T
(Superseded to 532009151)

$

$

Not available

35

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 4 left!

0

36

Electrolux/AYP 17021008

SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 16

0

37

Electrolux/AYP 17490608

SCREW LT
(Superseded to 817490608)

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 131052

CHASSIS WELDMENT

$

$

Not available

39

Electrolux/AYP 127866

DRAWBAR LT/YT
(Superseded to 532121306)

$

$

Not available

40

$

$

Not available

48

Electrolux/AYP 10040800

LOCKWASHER
(Superseded to 810040800)

$6.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 19171912

WASHER
(Superseded to 819171912)

$7.49

$

In Stock, only 1 left!

0

59

Murray 19131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 19091216

WASHER PM
(Superseded to 819091216)

$4.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 72170410

BOLT
(Superseded to 872170410)

$4.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 123976X

SUB= 73900400
(Superseded to 586668901)

$4.99

$

In Stock, Qty 18

0

64

Electrolux/AYP 121251X

STRIP FORM
(Superseded to 532121251)

$

$

Not available

65

Electrolux/AYP 121250X

SPRING
(Superseded to 532121250)

$7.49

$

Usually ships in 3-10 days

0

66

Electrolux/AYP 121249X

SPACER SPLIT
(Superseded to 532121249)

$6.49

$

In Stock, only 2 left!

0

67

Electrolux/AYP 121246X

BRKT SWITCH
(Superseded to 532174648)

$10.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 121248X

BUSHING
(Superseded to 532121248)

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 128953

HEAT SHIELD
(Superseded to 532128953)

$

$

Not available

72

Electrolux/AYP 126938X

SUB= 532126938
(Superseded to 532126938)

$

$

Not available

73

$

$

Not available

74

Electrolux/AYP 129965

SUB= 156417

$

$

Not available

75

Electrolux/AYP 105687X

SUB= 109238X

$

$

Not available

76

Electrolux/AYP 109596X

HOSE CLAMP T
(Superseded to 532109596)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 4921H

SPRING.RETAINER
(Superseded to 532004921)

$6.49

$

Usually ships in 3-10 days

0
