RE 11597 (960110307-00) - Husqvarna Lawn Tractor (2012-01) ENGINE Parts Diagram

Lawn Tractor

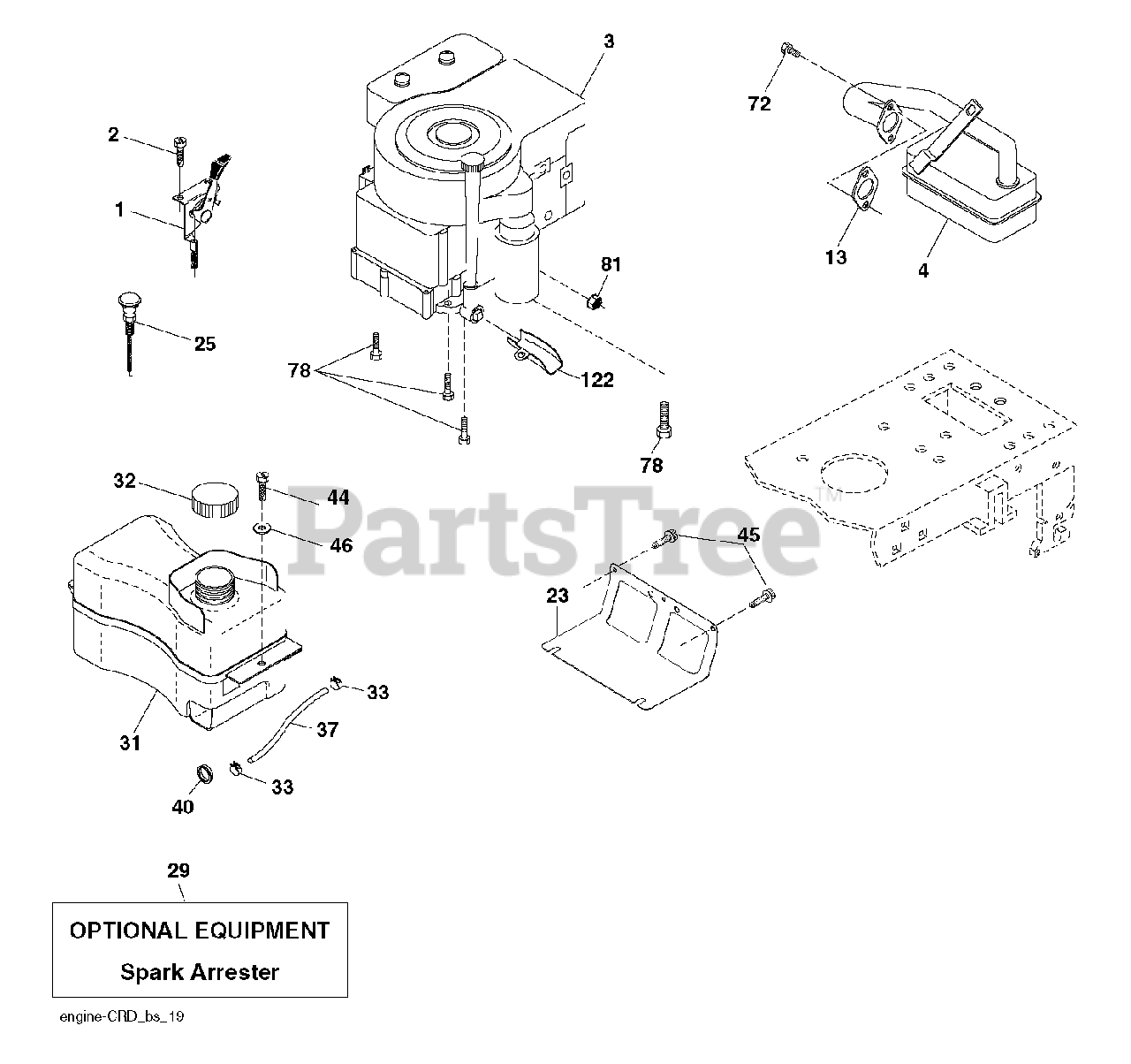

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 532170551

CONTROL TH/CH FLAG

$37.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: ENGINE BRIGGS MODEL 217807-3402-B1 (438614)

$

$

Not available

4

Electrolux/AYP 532179758

MUFFLER

$45.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 532165291

REPL BY 532 27 22-93
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 532169837

SHEILD.BROWNING.DBR.GUARD

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532190695

KNOB.ERGO.EXTENDED.RED (1 2)

$2.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532137180

ARRESTER SPARK (OPTIONAL)
(Superseded to 532121851)

$

$

Not available

31

Electrolux/AYP 532407516

NO LONGER AVAILABLE

$

$

Not available

32

Electrolux/AYP 532430220

CAP ASM.FUEL.2.25"FR.
(Superseded to 581075501)

$26.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 532123487

HOSE CLAMP

$7.49

$

In Stock, only 4 left!

0

37

Electrolux/AYP 532137040

LINE.FUEL.20

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 532124028

GROMMET T

$5.99

$

In Stock, only 3 left!

0

44

Electrolux/AYP 817670412

SCREW HEXWSHR 1/4-20X3/4

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

46

Electrolux/AYP 819091416

WASHER

$6.49

$

Usually ships in 3-10 days

0

72

Electrolux/AYP 532192334

SCREW.SOCKET HD.5/16-1
(Superseded to 596134201)

$3.99

$

In Stock, Qty 13

0

78

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

81

Electrolux/AYP 873510400

NUT
(Superseded to 873640400)

$

$

Not available

122

Electrolux/AYP 532421922

EXTENSION DRAIN OIL

$40.99

$

In Stock, Qty 8

0
