RE 100 (7800954-00) - Snapper 28" Rear-Engine Riding Mower, 10hp Front Axle Group 11" Wheels Parts Diagram

28" Rear-Engine Riding Mower, 10hp

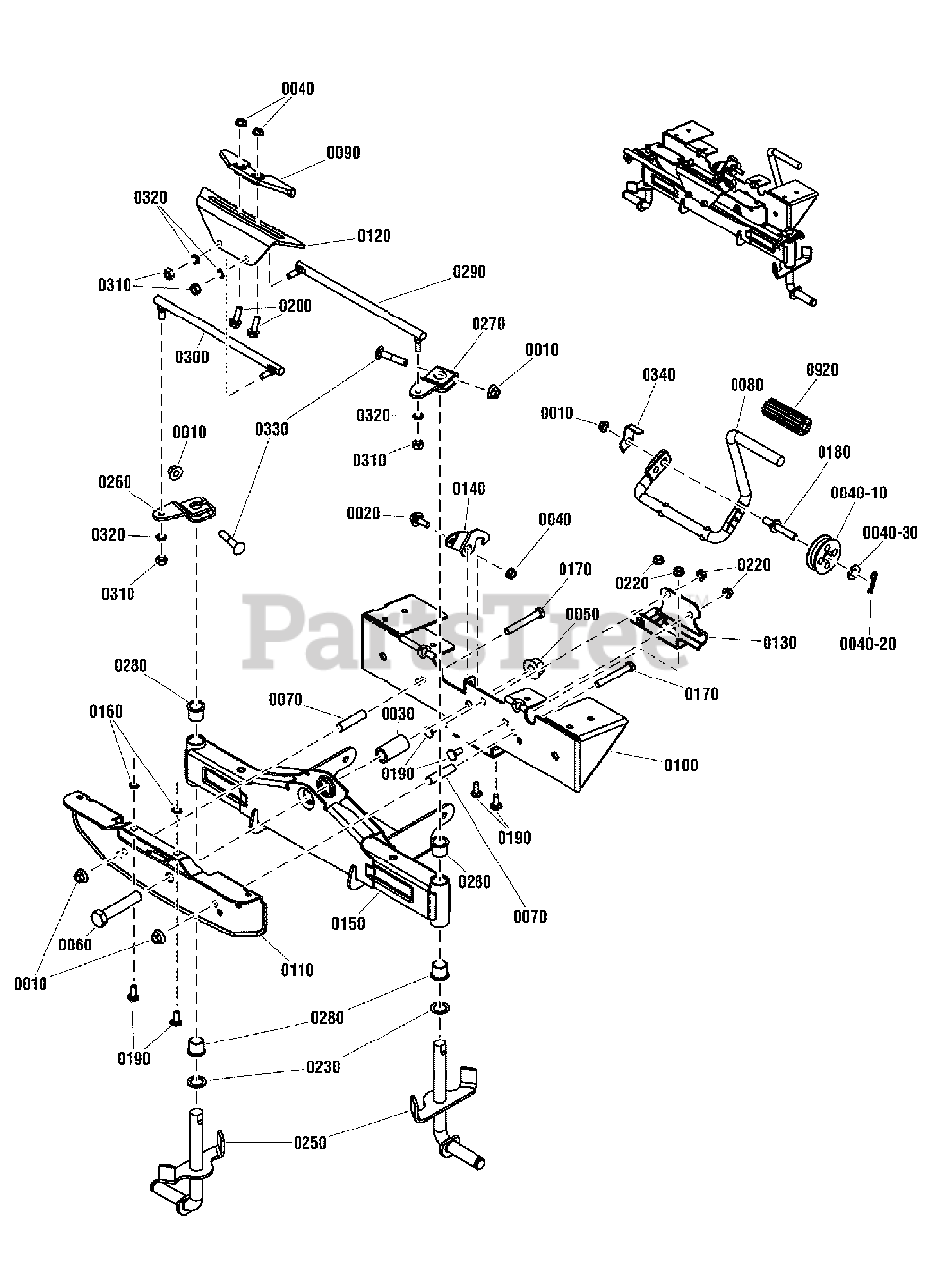

Front Axle Group 11" Wheels Parts Diagram

  • Title

0010

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0020

Snapper 1716654SM

BOLT, 5/16-18 X .75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 2 left!

0

0030

Snapper 1738193YP

SPACER, .641 ID X.980 0D X 2.0 Long

$6.49

$

In Stock, only 1 left!

0

0040

Snapper 704067

NUT, 5/16-18, Hex Flange, Center Lock

$3.99

$

In Stock, Qty 20+

0

0040-10

Snapper 7023182YP

SPOOL

$8.49

$

In Stock, only 1 left!

0

0040-20

Snapper 703430

PIN , 13 X 1.190, Cotter/Hair, Zinc/Clear

$3.49

$

In Stock, only 1 left!

0

0040-30

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 17

0

0050

Snapper 2860646SM

NUT, 5/8-11, Hex Flange Two Way Lock, Yellow

$10.99

$

In Stock, Qty 6

0

0060

Snapper 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0070

Snapper 7026595YP

SPACER, .495 OD X .390 ID X 2.038 Long

$10.99

$

Usually ships in 2-12 days

0

0080

Snapper 7105142YP

PEDAL, Brake

$19.99

$

Usually ships in 2-12 days

0

0090

Snapper 7105857YP

PLATE, Rack Guide

$

$

Not available

0100

Snapper 7301259YP

BRACKET, Rear Axle

$62.99

$

Usually ships in 2-12 days

0

0110

Snapper 7301282YP

BRACKET, Front Axle
(Superseded to 7301432YP)

$102.99

$

In Stock, only 2 left!

0

0120

Snapper 7301283YP

RACK, Steering

$42.99

$

In Stock, only 1 left!

0

0130

Snapper 7301317YP

BRACKET, Brake Pedal

$13.99

$

Usually ships in 2-12 days

0

0140

Snapper 7301351YP

PLATE, Park Brake

$5.99

$

Usually ships in 2-12 days

0

0150

Snapper 7400323YP

WELDMENT, Axle
(Superseded to 1759979BZYP)

$307.99

$

Usually ships in 2-12 days

0

0160

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0170

Snapper 703133

SCREW, 3/8-16 X 2.750, Hex Head Cap, GR5, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0180

Snapper 703956

STUD, 3/8-16 X 2.625, Special Shoulder, GR5

$5.49

$

Usually ships in 2-12 days

0

0190

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0200

Snapper 703410

BOLT, Serrated Flange, 5/16-18 X 1.0

$4.49

$

In Stock, only 2 left!

0

0220

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0230

Snapper 7010935SM

WASHER, .77 x 1.13 x .06, Flat

$3.99

$

In Stock, Qty 20+

0

0250

Snapper 7400345BMYP

WELDMENT, Spindle 11"

$

$

Not available

0260

Snapper 7301337BMYP

ARM, RH Steering

$

$

Not available

0270

Snapper 7301338BMYP

ARM, LH Steering

$

$

Not available

0280

Snapper 2176440SM

BUSHING, .765 ID, .885 OD, .877 LG, Flanged Nylon

$4.99

$

In Stock, Qty 20+

0

0290

Snapper 7105916YP

LINK, Drag 10 Lg, 90° X 5/16-24 Ball Joints, LH

$26.99

$

In Stock, only 1 left!

0

0300

Snapper 7105148YP

LINK, Shift, 10 Lg, 90° X 5/16-24 Ball Joints, RH

$26.99

$

In Stock, only 1 left!

0

0310

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0320

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0330

Snapper 703879

BOLT, Carriage 3/8-16X1-3/4 GR5 YZ

$3.99

$

In Stock, Qty 5

0

0340

Snapper 7301352YP

GUIDE, Clutch Cable

$5.49

$

Usually ships in 2-12 days

0

0920

Snapper 1727261SM

PEDAL, Brake Rubber

$9.99

$

In Stock, only 4 left!

0
