RE 100 (7800918-00) - Snapper 28" Rear-Engine Riding Mower, 10hp Spindle & Housing Assembly Parts Diagram
28" Rear-Engine Riding Mower, 10hp

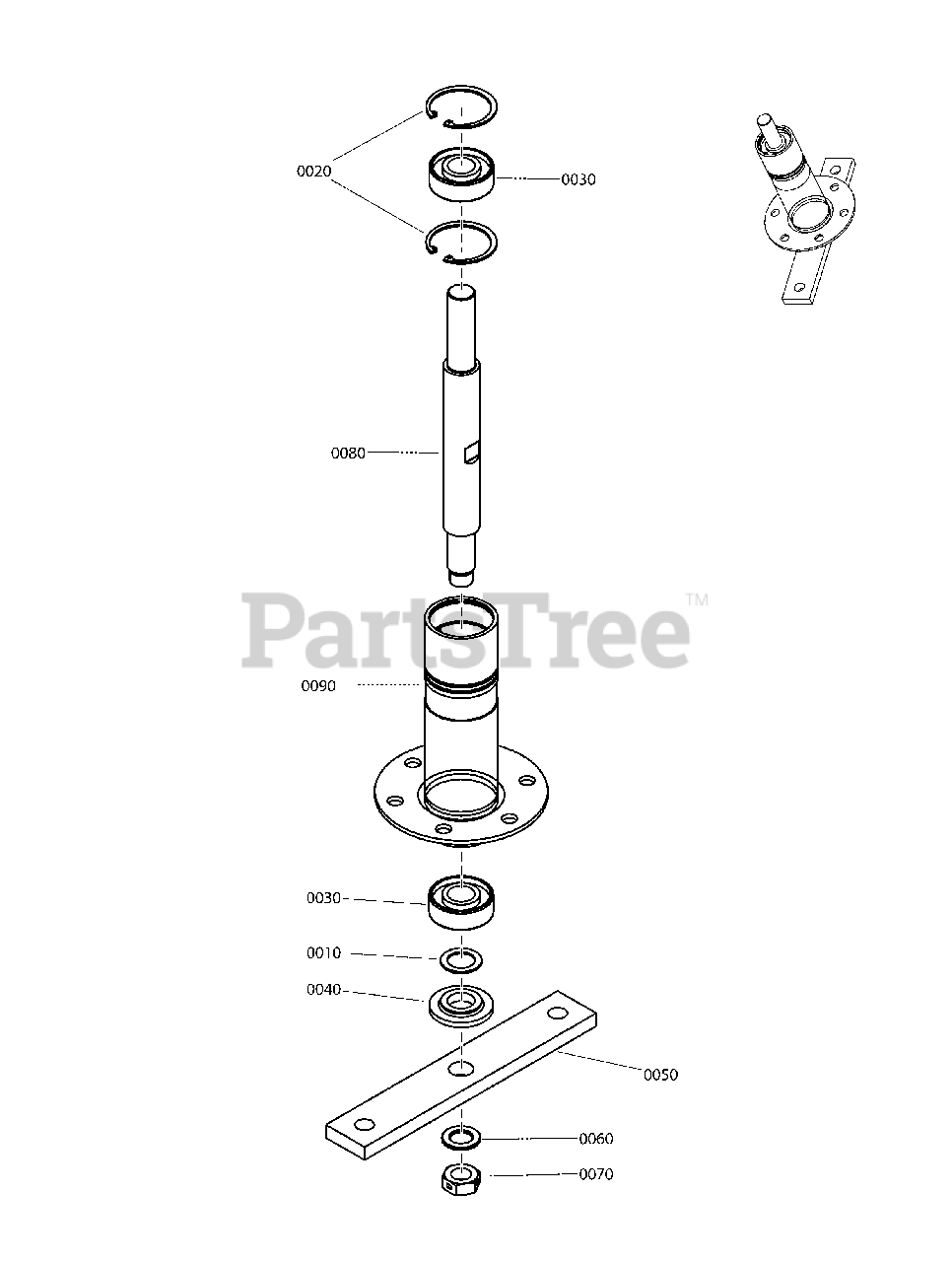

Spindle & Housing Assembly Parts Diagram
Snapper 7010935SM
WASHER, .77 x 1.13 x .06, Flat
$3.99
$
In Stock, Qty 20+
Snapper 7012491SM
RING, 1.85", Internal Retaining
$4.49
$
In Stock, Qty 20+
$11.99
$
In Stock, Qty 20+
Snapper 7014407SM
WASHER, Spindle, .75 ID, 1.75 OD, .28 Thick, PM
$7.49
$
In Stock, Qty 19
$70.99
$
In Stock, only 1 left!
Snapper 7044782YP
SPACER, Blade Centering (.63 X 1.05 X .094)
$4.99
$
Usually ships in 2-12 days
Snapper 7090356YP
NUT, 5/8-18 Hex Center Lock Jam, GR5, ZP
$5.49
$
In Stock, Qty 20+
Snapper 7200147YP
SHAFT, Spindle, 9.737"
$59.99
$
In Stock, only 1 left!
Snapper 7400327YP
WELDMENT, Spindle Housing (7" Tall)
$
$
Not available
