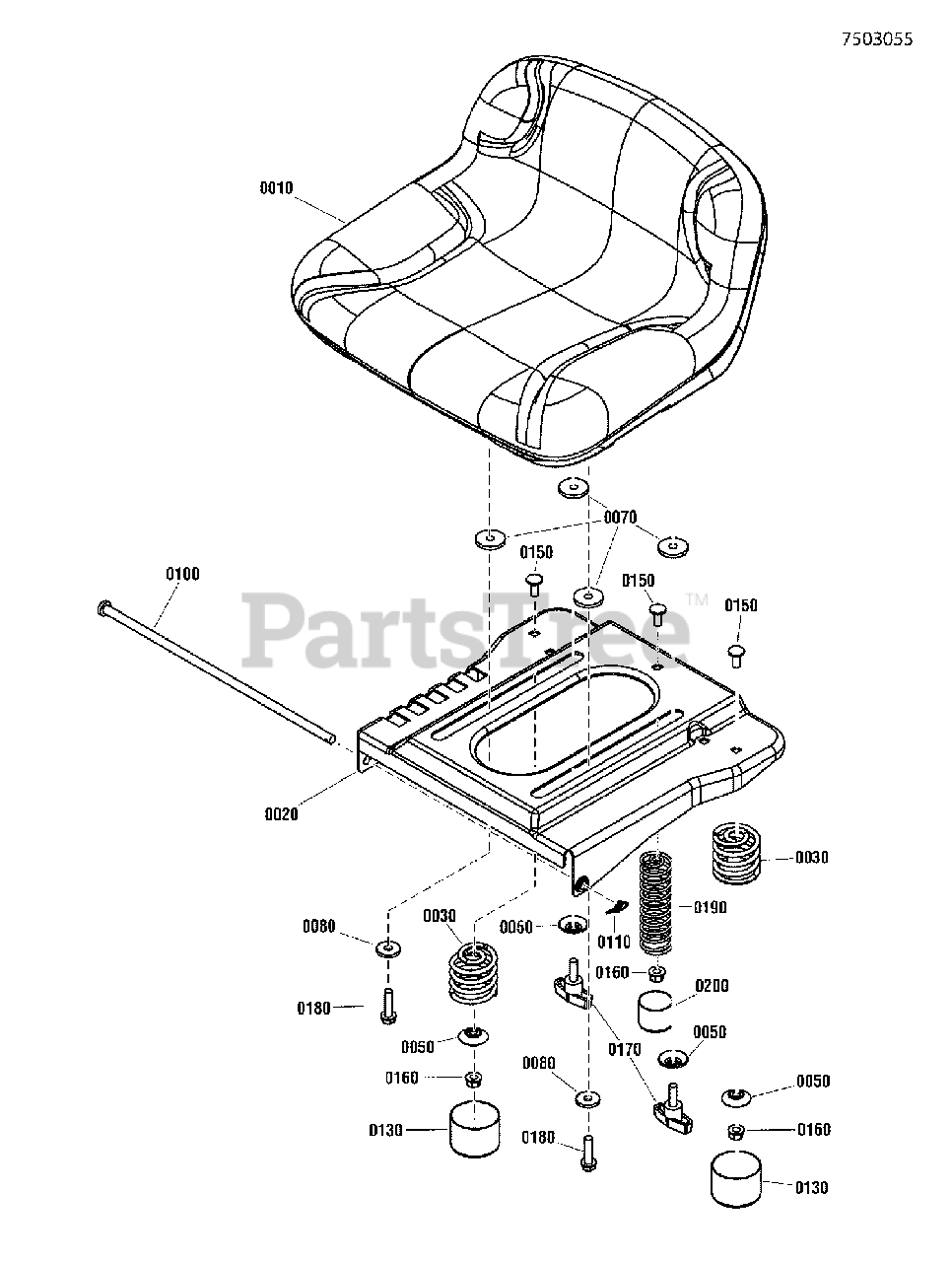

RE 100 (7800918-00) - Snapper 28" Rear-Engine Riding Mower, 10hp Seat Group Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Seat Group Parts Diagram

  • Title

0010

Snapper 7105693YP

SEAT, 9 H, 17 W, Plastic Back

$208.99

$

Usually ships in 2-12 days

0

0020

Snapper 7301219BMYP

SUPPORT, Seat

$92.99

$

Usually ships in 2-12 days

0

0030

Snapper 1704728SM

SPRING, Compression, 19/32 x 2

$9.99

$

In Stock, only 2 left!

0

0050

Snapper 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0070

Snapper 1731300SM

SPACER, 0.32 ID x 1-1/2 OD x 3/10 THK Powdered Metal Yellow

$5.49

$

Usually ships in 2-12 days

0

0080

Snapper 703298

WASHER, 5/16

Note: (Was 80003525)

$4.49

$

In Stock, only 1 left!

0

0100

Snapper 1751493YP

ROD, Seat Pivot, .375 X 13.44 to .109 Hole

$10.99

$

Usually ships in 2-12 days

0

0110

Snapper 703355

PIN, 3/8 Cotter Self Locking, Zinc/Clear

Note: 80004458YP

$3.99

$

In Stock, Qty 14

0

0130

Snapper 1704724SM

COVER, Spring 2 Id X 1-1/2, Black Vinyl

$7.99

$

In Stock, only 2 left!

0

0150

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

Note: (Was 80004072)

$3.49

$

In Stock, Qty 16

0

0160

Snapper 703115

NUT, Flange Nylock, 5/16-18

Note: (Was 80002732)

$3.49

$

In Stock, Qty 20+

0

0170

Snapper 1752056YP

KNOB, 5/16-18 x 3/4 Two Prong

$6.49

$

Usually ships in 2-12 days

0

0180

Snapper 1930595SM

SCREW, Hex Cap Flange Whiz Lock, 5/16-18 x 1-1/4, G5

$3.99

$

In Stock, Qty 5

0

0190

Snapper 7106013YP

SPRING, Compression, 4.57 Free Length

$5.99

$

Usually ships in 2-12 days

0

0200

Snapper 5023274SM

CAP, Vinyl, 1.375 X 1

$5.99

$

Usually ships in 2-12 days

0
