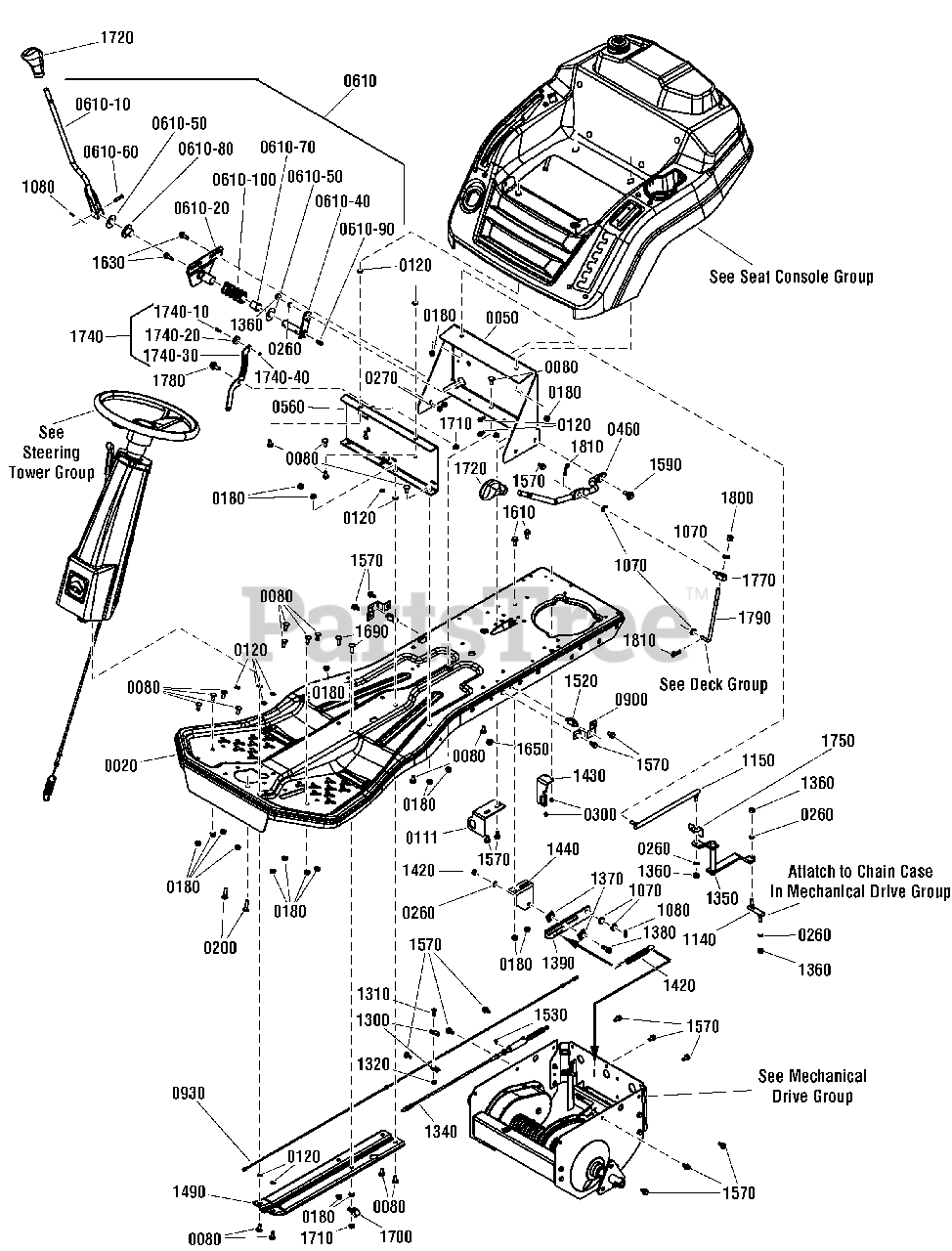

RE 100 (7800918-00) - Snapper 28" Rear-Engine Riding Mower, 10hp Main Frame Group Parts Diagram

28" Rear-Engine Riding Mower, 10hp

Main Frame Group Parts Diagram

  • Title

0020

Snapper 7301311DYP

MAIN FRAME, Mechanical, RER

$319.99

$

Usually ships in 2-12 days

0

0050

Snapper 7301222BMYP

BRACKET, Console Support

$99.99

$

Usually ships in 2-12 days

0

0080

Snapper 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0111

Snapper 7301371BMYP

BRACKET, Reverse Stop Switch

$9.49

$

Usually ships in 2-12 days

0

0120

Snapper 703297

RETAINER, 5/16, GR5 Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0180

Snapper 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 703446

BOLT, 5/16-18 X 1.25, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0260

Snapper 703116

WASHER, .32 X .58 X .08, Split Lock, YZ

$3.49

$

In Stock, Qty 20+

0

0270

Snapper 703465

NUT, 5/16-18, GRB, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

0300

Snapper 7090981YP

SCREW, 10-32 x 1/4 Hex Washer Self-Tap, BZ
(Superseded to 704061)

$3.99

$

In Stock, Qty 16

0

0460

Snapper 7105822BMYP

ROD, Deck Lift, RER

$42.99

$

Usually ships in 2-12 days

0

0560

Snapper 7301330BMYP

BRACKET, Seat Hinge Support

$54.99

$

Usually ships in 2-12 days

0

0610

ASSEMBLY, Speed Selector (Reference)

$

$

Not available

0610-10

Snapper 7400320YP

WELDMENT, Speed Select Lever

$40.99

$

Usually ships in 2-12 days

0

0610-20

Snapper 7400319YP

WELDMENT, Speed Select Bracket

$66.99

$

In Stock, only 1 left!

0

0610-40

Snapper 7043201YP

WELDMENT, Shift Arm
(Superseded to 7043201BMYP)

$51.99

$

In Stock, only 2 left!

0

0610-50

Snapper 7031036YP

WASHER, Thrust .76 ID, 1.62 OD, .025 Thick

$3.99

$

Usually ships in 2-12 days

0

0610-60

Snapper 7023914YP

PIN, .25 X 1.25, Clevis

$

$

Not available

0610-70

Snapper 7019246YP

BUSHING, 3/4 ID, 1 Flange (Nylon)

$4.49

$

Usually ships in 2-12 days

0

0610-80

Snapper 7019245YP

BUSHING, 3/4 ID, 1.62 Flange (Nylon)

$4.49

$

In Stock, Qty 8

0

0610-90

Snapper 7010817SM

FITTING, Lube (Straight press fit for .187 hole, no ball)

$4.49

$

In Stock, Qty 20+

0

0610-100

Snapper 7010754YP

SPRING, Shift Detent

$6.99

$

Usually ships in 2-12 days

0

0900

Snapper 7301336BMYP

BRACKET, Rear Deck Lift

$6.49

$

Usually ships in 2-12 days

0

0930

Snapper 7105152YP

CABLE, Clutch, 56.75 Long (2 floating & 2 fixed furrels)

$23.99

$

In Stock, only 1 left!

0

1070

Snapper 703590

WASHER, .406

$3.99

$

In Stock, Qty 19

0

1080

Snapper 703312

PIN, 3/32 X 3/4, GR5, Cotter, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

1140

Snapper 7011018YP

SHIFT LINK, Short (1.44 Long, 5/16-24 thread)

$18.99

$

In Stock, Qty 16

0

1150

Snapper 7105148YP

LINK, Shift, 10 Lg, 90° X 5/16-24 Ball Joints, RH

$26.99

$

In Stock, only 1 left!

0

1300

Snapper 7034174YP

CONNECTOR, Cable (Single Part)

$4.99

$

In Stock, only 3 left!

0

1310

Snapper 703925

SCREW, 1/4-20 x 3/4 Hex Head Cap, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 7

0

1320

Snapper 703954

NUT, 1/4-20, Center Lock, GR 5, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

1340

Snapper 7105151YP

CABLE, Brake, Snap-in, 40.89"

$39.99

$

In Stock, Qty 5

0

1350

Snapper 7041384BMYP

WELDMENT, Shift Arm

$51.99

$

Usually ships in 2-12 days

0

1360

Snapper 703331

NUT, 5/16-24, Hex, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

1370

Snapper 7014663YP

SLIDE HALF

$4.49

$

In Stock, only 4 left!

0

1380

Snapper 703428

BOLT, 5/16-18 x .530 Shoulder, GR 2, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

1390

Snapper 7047190BMYP

SLIDE, Drive Support

$12.99

$

In Stock, only 1 left!

0

1420

Snapper 7013885YP

SPRING, Clutch / Brake

$

$

Not available

1430

Snapper 7073735YP

BRACKET, Switch

$12.99

$

Usually ships in 2-12 days

0

1440

Snapper 7047189BMYP

BRACKET, Drive Support

$12.99

$

Usually ships in 2-12 days

0

1490

Snapper 7301349BMYP

BRACE, Frame, RER

$33.99

$

Usually ships in 2-12 days

0

1520

Snapper 7105736YP

SWIVEL, .390 Dia., Thru Hole

$5.99

$

Usually ships in 2-12 days

0

1530

Snapper 7012313SM

RETAINING RING, .375, External

$3.99

$

In Stock, Qty 11

0

1570

Snapper 703949

SCREW, 5/16-18 x 5/8 Hex Washer Self-Tap, BP

$3.99

$

In Stock, only 3 left!

0

1590

Snapper 702315

BOLT, 3/8-16 X .88, .513 Dia. Shoulder, GR2, Zinc/Clear

$6.99

$

Usually ships in 2-12 days

0

1610

Snapper 9357MA

SCREW, 5/16-18 X .750, Flanged Whiz-Lock, GR5
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

1630

Snapper 7091841SM

SCREW, 5/16-18 X 1, Hex Washer Self-Tap, GR 5 YZ

$3.49

$

Usually ships in 2-12 days

0

1650

Snapper 703893

NUT, Hex, Flange, Two Way Lock, 3/8-16

$6.99

$

In Stock, Qty 20+

0

1690

Snapper 703483

BOLT, 5/16-18 X 1 Carriage, GR5, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

1700

Snapper 7900020SM

CLIP, Harness, 5/8

$4.49

$

Usually ships in 2-12 days

0

1710

Snapper 1935048SM

NUT, 5/16-18 Hex Flange Two-Way Lk Ga
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

1720

Snapper 7105767YP

KNOB, HOC/Speed Selector, 1/2 Hole

$10.99

$

Usually ships in 2-12 days

0

1740

ASSEMBLY, OPC Roller (Reference)

$

$

Not available

1740-10

Snapper 7106025YP

ROLLER, .265 X 1.312 X .344

$3.49

$

Usually ships in 2-12 days

0

1740-20

Snapper 703960

BOLT, 10-24 X .750, Shoulder, GR8, Zinc/Clear

$4.49

$

Usually ships in 2-12 days

0

1740-30

Snapper 7301367BMYP

PLATE, Roller OPC

$7.99

$

Usually ships in 2-12 days

0

1740-40

Snapper 7091267SM

NUT, 10-24, Hex Center Lock, BZ

$3.99

$

In Stock, Qty 6

0

1750

Snapper 7301370YP

PADDLE, Reverse Switch

$5.49

$

Usually ships in 2-12 days

0

1770

Snapper 7072495SM

SWIVEL, 3/8 W/ Thru Hole, YZ

$24.99

$

In Stock, only 1 left!

0

1780

Snapper 1716654SM

BOLT, 5/16-18 X 0.75, .50 Shoulder G5 YEL

$5.49

$

In Stock, only 3 left!

0

1790

Snapper 7105735YP

LINKAGE, 3/8 Deck Rod

$8.49

$

Usually ships in 2-12 days

0

1800

Snapper 703117

NUT, 3/8-16, Nylock, GR5, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

1810

Snapper 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0
