RD 9C7001 P - Ryobi 7000 Watt Generator, Rev 03 (2018-10) FIGURE D Parts Diagram

7000 Watt Generator, Rev 03

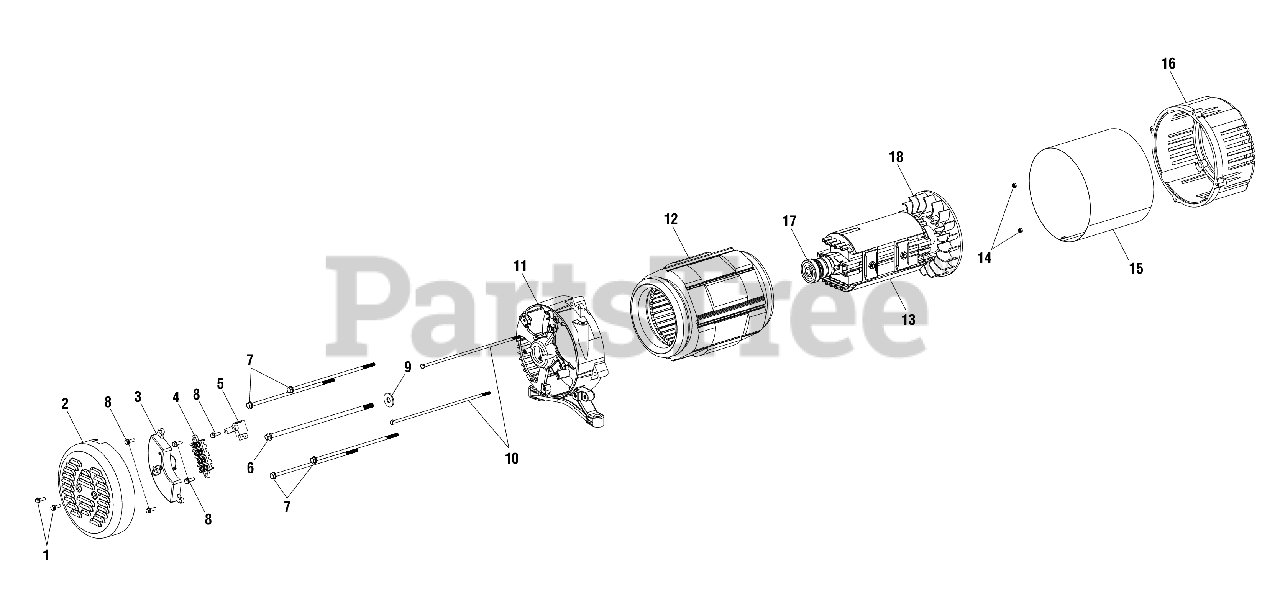

FIGURE D Parts Diagram

  • Title

1

Homelite 660938011

Bolt (M5 x 12 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

2

Homelite 678296004

Brush Cover
(Superseded to 678296002)

$

$

Not available

3

Homelite 290440008

Automatic Voltage Regulator (5000 Watt)
(Superseded to 290440012)

$

$

Not available

4

Homelite 290602003

Terminal Block

$10.99

$

Usually ships in 3-7 days

0

5

Homelite 290441005

Brush Assembly 190 mm

$

$

Not available

6

Homelite 661603030

Bolt (5/16-24 x 235 mm, Hex Washer Hd.)

$15.99

$

Usually ships in 3-7 days

0

7

Homelite 661603031

Bolt (M5 x 170 mm, Hex Washer Hd.)

$4.99

$

Usually ships in 3-7 days

0

8

Homelite 660938012

Bolt (M5 x 16 mm, Hex Flange Hd.)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite 638623002

Washer (ID10.5 x OD25 x 2t)

$

$

Not available

10

Homelite 660938033

Bolt (M5 x 170 mm, Hex Washer Hd.)
(Superseded to 660938012)

$2.49

$

Usually ships in 3-7 days

0

11

Homelite 678865003

Bearing Housing'

$

$

Not available

12

Homelite 310772040

STATOR ASSY RD906814 SHENFA

$

$

Not available

13

Homelite 310771039

ROTOR ASSY RD906814 SHENFA

$

$

Not available

14

Homelite 690840002

Hex Nut (M5)

$3.49

$

Usually ships in 3-7 days

0

15

Homelite 638624020

Generator Head Cover

$11.99

$

Usually ships in 3-7 days

0

16

Homelite 640331005

Generator Head Cover

$

$

Not available

17

Homelite 681963001

Ball Bearing (190 mm)

$17.99

$

Usually ships in 3-7 days

0

18

Homelite 307471001

Fan (190 mm)

$

$

Not available
