RD 9C7001 P - Ryobi 7000 Watt Generator, Rev 03 (2018-10) FIGURE C Parts Diagram

7000 Watt Generator, Rev 03

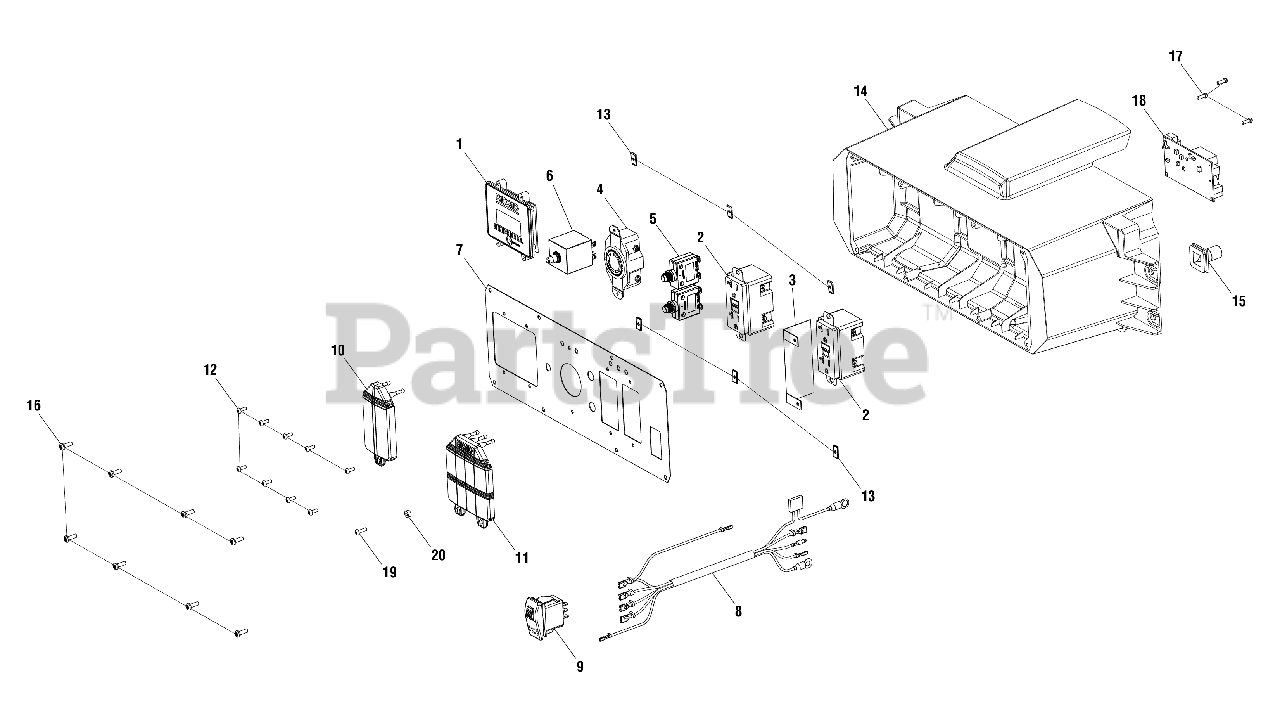

FIGURE C Parts Diagram

  • Title

1

Homelite 290432011

GENSMART 120/240V ENGLISH/FRENCH

$47.99

$

Usually ships in 3-7 days

0

2

Homelite 290400010

Duplex GFCI Receptacle (120 Volt)
(Superseded to 290400024)

$126.99

$

In Stock, only 2 left!

0

3

Homelite 902114002

INSULATOR

$

$

Not available

4

Homelite 290401001

Twist Lock Receptacle (120/240 Volt, 30 Amp, L14-30R)

$25.99

$

Usually ships in 3-7 days

0

5

Homelite 780350009

Circuit Breaker (20 Amp)

$

$

Not available

6

Homelite 780351017

CIRCUIT BREAKER, 30AMP 2 POLE SCREW TYPE

$101.99

$

Usually ships in 3-7 days

0

7

Homelite 638930010

ELECTRICAL FACEPLATE, RD9C7001P

$

$

Not available

8

Homelite 290435020

E-START HARNESS, RD9C7001P

$

$

Not available

9

Homelite 270290008

Start Switch w/Lock

$

$

Not available

10

Homelite 570409002

RAIN SHIELD, 30 AMP TWISTLOCK

$

$

Not available

11

Homelite 570409001

RAIN SHIELD, DUEL GFCI

$9.99

$

In Stock, Qty 7

0

12

Homelite 660901004

Screw (#6-20 x 3/8 in., T15 Torx Pan Hd.)

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 678244002

NUT, SPEED #6-18

$3.49

$

Usually ships in 3-7 days

0

14

Homelite 519815007

WRAPPER BOX W/ HOLE, RIGID

$49.99

$

Usually ships in 3-7 days

0

15

Homelite 561383027

Rubber Grommet

$

$

Not available

16

Homelite 660899002

Screw (#8-18 x 1/2 in., T20 Torx Pan Hd.)

$

$

Not available

17

Homelite 660598001

Screw (6-20 x 3/8 in., Phillips Pan Hd.)

$2.99

$

In Stock, only 2 left!

0

18

Homelite 140173027

Battery Charger

$59.99

$

Usually ships in 3-7 days

0

19

Homelite 660961002

SCREW, #6-10 X 0.5 TYPE B ZINC TORX HD

$2.49

$

Usually ships in 3-7 days

0

20

Homelite 638128005

SPACER 4mm

$2.49

$

Usually ships in 3-7 days

0
