RD 9C7001 P - Ryobi 7000 Watt Generator, Rev 03 (2018-10) FIGURE B Parts Diagram

7000 Watt Generator, Rev 03

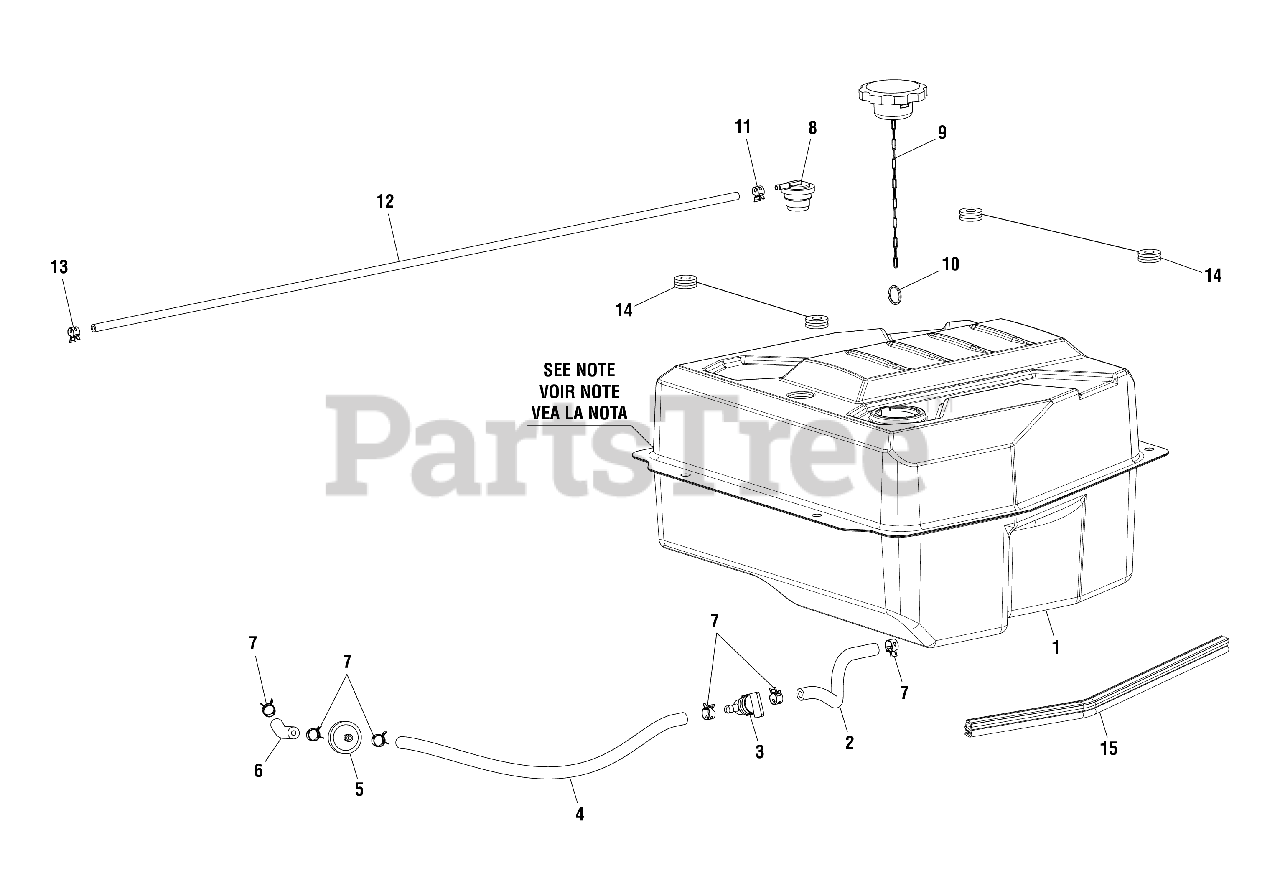

FIGURE B Parts Diagram

  • Title

1

Homelite 310711154

FUEL TANK 8 GALLON W/ BUSHINGS/SPACERS

$

$

Not available

2

Homelite 570358131

FUEL HOSE, 220MM X 1/4IN

$9.49

$

Usually ships in 3-7 days

0

3

Homelite 308459005

FUEL SHUT OFF VALVE 180 DEGREE

$

$

Not available

4

Homelite 570358128

FUEL HOSE, 1/4 X 390MM

$

$

Not available

5

Homelite 308733008

Fuel Filter Inline (1/4 in.)

$7.49

$

In Stock, only 4 left!

0

6

Homelite 570358133

FUEL HOSE, 95MM X 5MM ID

$

$

Not available

7

Homelite 678408006

Fuel Line Clamp (1/2 in.).

$3.49

$

In Stock, only 1 left!

0

8

Homelite 310854002

Fuel Tank Vent Valve (PS905055SA)

$

$

Not available

9

Homelite 310720026

Fuel Cap Assembly

$40.99

$

Usually ships in 3-7 days

0

10

Homelite 678899007

Ring Clip

$2.49

$

In Stock, only 4 left!

0

11

Homelite 678409003

Fuel Line Clamp (7/16 in., BM903611)

$1.99

$

In Stock, Qty 5

0

12

Homelite 570358105

Vapor Hose (590 mm and 30 mm)

$5.49

$

Usually ships in 3-7 days

0

13

Homelite 678408014

Fuel Line Clamp (10.3 mm)

$2.49

$

Usually ships in 3-7 days

0

14

Homelite 310225001

Bushing w/Insert

$9.49

$

Usually ships in 3-7 days

0

15

Homelite 570818002

BONDED RUBBER, WEATHER STRIPPING

$4.49

$

Usually ships in 3-7 days

0
