RD 300 B - Electrolux/AYP Tiller TRANSMISSION, TINE SHIELD Parts Diagram

Tiller

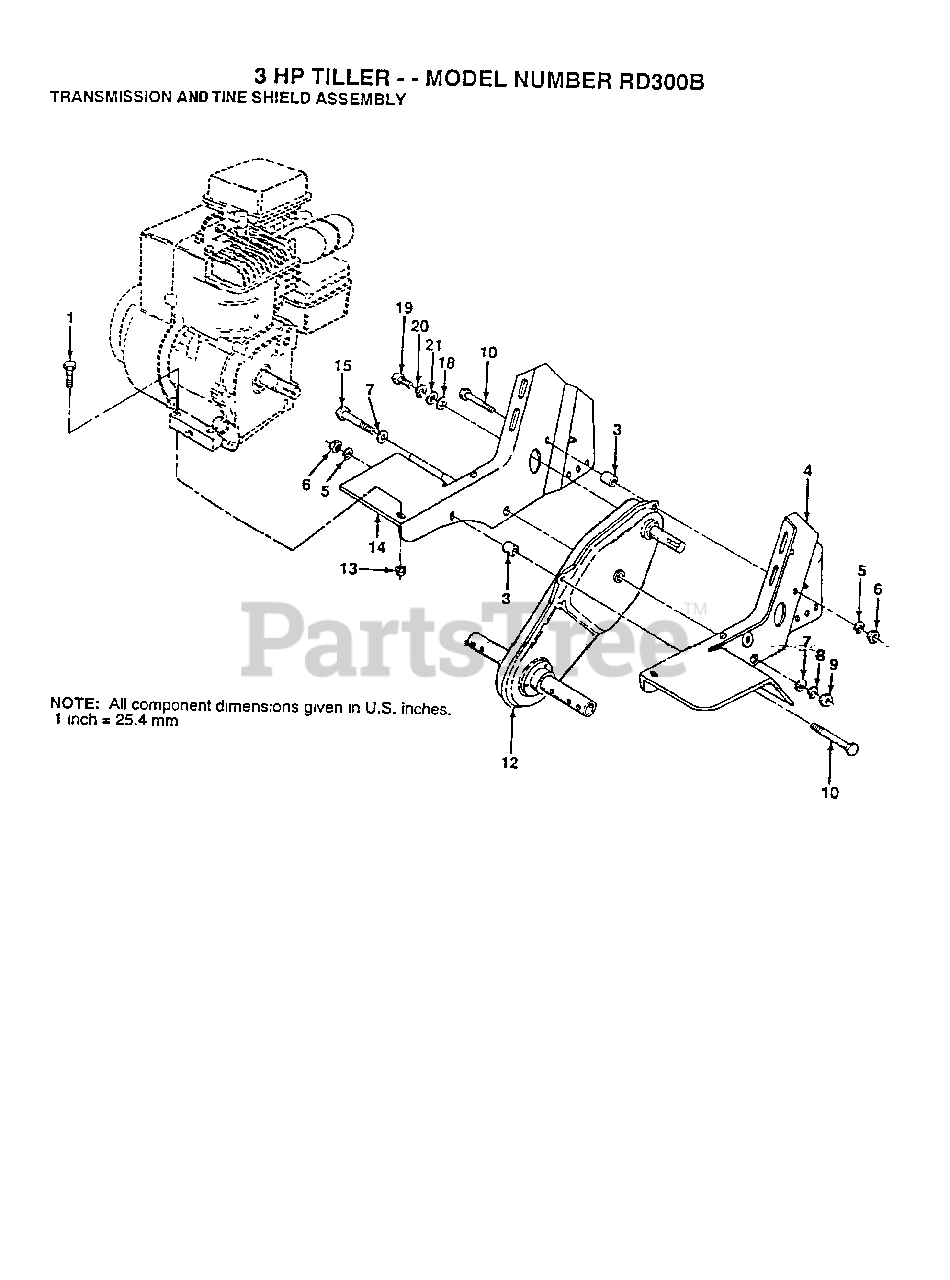

TRANSMISSION, TINE SHIELD Parts Diagram

  • Title
1

Electrolux/AYP 74760524

BOLT.HEX.5/16-1.5

$2.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 9173R

SPLIT SPACER RT
(Superseded to 583779801)

$6.49

$

Usually ships in 3-10 days

0

4

$

$

Not available

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 73220500

NUT.HEX.5/16-18
(Superseded to 873220500)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 19131311

WASHER
(Superseded to 582732401)

$6.99

$

In Stock, Qty 12

0

8

Electrolux/AYP 10040600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 7810H

GRIPCO NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 74760544

SUB= 74780544
(Superseded to 874760544)

$

$

Not available

12

Electrolux/AYP 105391X

SUB= 918105391X
(Superseded to 165809)

$

$

Not available

$2.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 2606J419

"BRKT,ENG RH"
(Superseded to 583730301)

$18.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 74610652

BOLT.3/8-24X3.75
(Superseded to 583613901)

$2.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 19091412

WASHER
(Superseded to 582732101)

$

$

Not available

19

Electrolux/AYP 74610412

BOLT
(Superseded to 582738901)

$4.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 10040400

LOCKWASHER
(Superseded to 810040400)

$3.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 19092016

WASHER
(Superseded to 819092016)

$6.99

$

In Stock, only 1 left!

0

Electrolux/AYP 110612X

DECAL TI
(Superseded to 532110612)

$

$

Not available

Electrolux/AYP 126230X

"DECAL,ENG HP"

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 120076X

SUB= 120075X
(Superseded to 532120075)

$5.99

$

Usually ships in 3-10 days

0
