LT300 Series 40" Lawn Tractor, 21hp

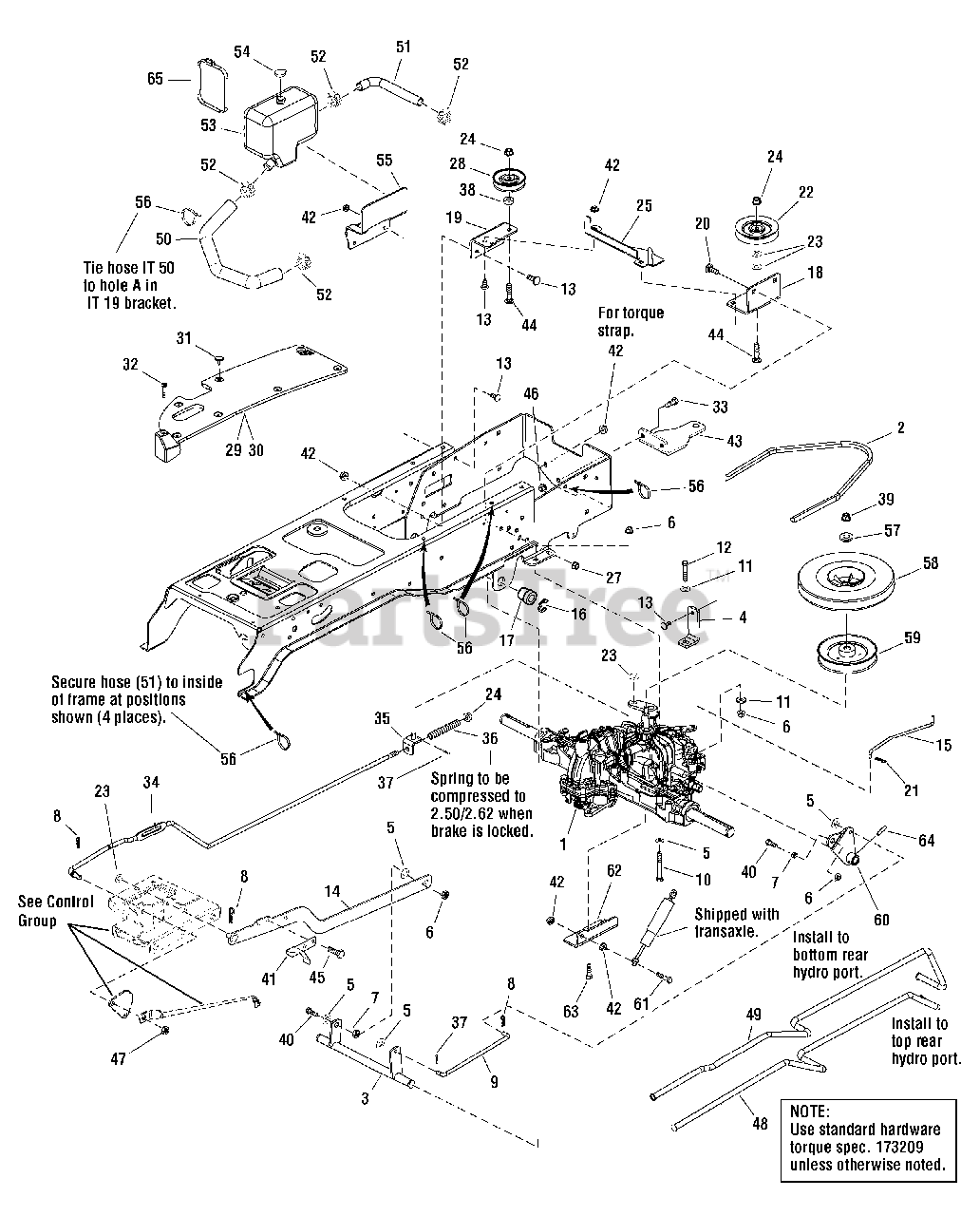

Transmission Group - Tuff Torq K-4664 Parts Diagram

  • Title

1

Snapper 1735070

TRANSMISSION ASSEMBLY, Tuff Torq K664
(Superseded to 1735070YP)

$2507.99

$

Usually ships in 2-12 days

0

2

Snapper 1719911

V-BELT, 117.0" EL HA
(Superseded to 1719911SM)

Note: -117

$56.99

$

In Stock, only 3 left!

0

3

Snapper 1727552

SHAFT & ARMS ASSEMBLY, Control
(Superseded to 1727552SM)

$47.99

$

Usually ships in 2-12 days

0

4

Snapper 1734956

STRAP. Torque

$

$

Currently unavailable

5

Snapper 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 1919326

NUT, Hex, CON, Lock, 5/16-18
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 1666697

SPACER, Powered Metal
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

8

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

9

Snapper 1734965

ROD, Control
(Superseded to 1734965SM)

$12.99

$

Usually ships in 2-12 days

0

10

Snapper 1923141

CAPSCREW, Hex Head, 5/16-18 x 2-3/4 G5
(Superseded to 703869)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 1960141

WASHER, 5/16
(Superseded to 1960141SM)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 1921978

CAPSCREW, Hex Head 5/16-18 x 2 G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

13

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

14

Snapper 1727473

ARM & PIN ASSEMBLY, Speed Control
(Superseded to 1727473SM)

$35.99

$

Usually ships in 2-12 days

0

15

Snapper 1734970

ROD, Free Wheel
(Superseded to 1734970SM)

$18.99

$

Usually ships in 2-12 days

0

16

Snapper 2827794

RING, E Retaining
(Superseded to 2827794SM)

$3.49

$

In Stock, Qty 16

0

17

Snapper 2176440

BUSHING, Nylon
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

18

Snapper 1734966A

SUPPORT, Transmission, LH
(Superseded to 1734966AYP)

$27.99

$

Usually ships in 2-12 days

0

19

Snapper 1734967A

SUPPORT, Transmission, RH
(Superseded to 1734967AYP)

$27.99

$

Usually ships in 2-12 days

0

20

Snapper 1931350

CARRIAGE BOLT, 3/8-16 x 1 G5
(Superseded to 703815)

$4.49

$

In Stock, only 4 left!

0

21

Snapper 1960221

CLIP, Hair Pin Spring
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

22

Snapper 1710545

PULLEY, Idler, 4 in.
(Superseded to 1710545SM)

$42.99

$

Usually ships in 2-12 days

0

23

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 1960687

NUT, Hex Flange 3/8-16 ESNA
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

25

Snapper 17324958A

BRACKET, Chute Locator

$

$

Currently unavailable

26

Snapper 1922755

WASHER, Flat 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

27

Snapper 1950537

NUT, Lock, KEPS, 3/8-16

$

$

Currently unavailable

28

Snapper 1721134

PULLEY, V Idler
(Superseded to 1721134SM)

Note: -3

$30.99

$

In Stock, Qty 20+

0

29

Snapper 1722173

PAD, Footrest, RH Black Vinyl Textured
(Superseded to 1722173SM)

$32.99

$

Usually ships in 2-12 days

0

30

Snapper 1722174

PAD, Footrest with Differential Lock, LH Black Vinyl Texture
(Superseded to 1722174SM)

$30.99

$

Usually ships in 2-12 days

0

31

Snapper 1704351

FASTENER, Panel 3/4 Head
(Superseded to 1704351SM)

$4.99

$

In Stock, only 4 left!

0

32

Snapper 1960676

SCREW, Pnhd Torx tt, 1/4-20 x 1.25
(Superseded to 1960676SM)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 1921210

CAPSCREW, Hex, 3/8-16 x 1.0
(Superseded to 703407)

$11.99

$

In Stock, Qty 7

0

34

Snapper 1735108

ROD, Brake
(Superseded to 1735108SM)

$61.99

$

Usually ships in 2-12 days

0

35

Snapper 1735110

BRAKE, Bracket Assembly
(Superseded to 1735110YP)

$31.99

$

Usually ships in 2-12 days

0

36

Snapper 1729277

SPRING, Compression
(Superseded to 1729277SM)

$6.99

$

In Stock, only 1 left!

0

37

Snapper 1918447

PIN, Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

38

Snapper 1960315

BOLT, Carriage, 3/8-16 x 2
(Superseded to 1960315SM)

$6.49

$

In Stock, only 1 left!

0

39

Snapper 1719968

NUT, Flange, Nylock, M10
(Superseded to 1719968SM)

$3.49

$

In Stock, only 1 left!

0

40

Snapper 1921333

CAPSCREW, Hex Head, 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

41

Snapper 1727215A

ACTUATOR, Switch
(Superseded to 1727215ASM)

$21.99

$

Usually ships in 2-12 days

0

42

Snapper 1960684

NUT, Hex Keps Conical Washer, 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

43

Snapper 1734980A

DRAWBAR
(Superseded to 1734980AYP)

$47.99

$

Usually ships in 2-12 days

0

44

Snapper 1931353

CARRIAGE BOLT, 3/8-16 x 1-3/4 G5
(Superseded to 703858)

$4.99

$

In Stock, Qty 6

0

45

Snapper 1924856

CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

46

Snapper 1928352

NUT, Hex Flange, 3/8-16 Whiz Lock Large
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

47

Snapper 1960103

WASHER, 3/8
(Superseded to 1960103SM)

$4.49

$

In Stock, Qty 7

0

48

Snapper 1735081

TUBE, Hydro, Front-Outside
(Superseded to 1735081SM)

$76.99

$

Usually ships in 2-12 days

0

49

Snapper 1735082

TUBE, Hydro, Rear-Inside
(Superseded to 1735082SM)

$76.99

$

Usually ships in 2-12 days

0

50

Snapper 1735558

HOSE, Tank
(Superseded to 1735558SM)

Note: (To Transmission)

$41.99

$

Usually ships in 2-12 days

0

51

Snapper 1735097

HOSE, Return
(Superseded to 1735097SM)

$38.99

$

Usually ships in 2-12 days

0

52

Snapper 1723214

CLAMP, Hose
(Superseded to 1723214SM)

$5.99

$

Usually ships in 2-12 days

0

53

Snapper 1735557

TANK, Reservoir
(Superseded to 1735557YP)

$80.99

$

Usually ships in 2-12 days

0

54

Snapper 1722711

CAP, Tank
(Superseded to 1722711SM)

$7.99

$

Usually ships in 2-12 days

0

55

Snapper 1735066A

BRACKET, Tank Support
(Superseded to 1735066AYP)

$29.99

$

Usually ships in 2-12 days

0

56

Snapper 2825094

TIE, Wire
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

57

Snapper 1736019

SPACER, Fan
(Superseded to 1736019SM)

$14.99

$

Usually ships in 2-12 days

0

58

Snapper 1735634

FAN, 9
(Superseded to 1735634SM)

$13.99

$

Usually ships in 2-12 days

0

59

Snapper 1735636

PULLEY ASSEMBLY
(Superseded to 1735636SM)

$61.99

$

Usually ships in 2-12 days

0

60

Snapper 1735568

ARM ASSEMBLY, Control
(Superseded to 1735568SM)

$74.99

$

Usually ships in 2-12 days

0

61

Snapper 1921221

CAPSCREW, Hex 5/16-18 x 1.50
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

62

Snapper 1735576A

BRACKET, Dampener, MTG
(Superseded to 1735576ASM)

$16.99

$

Usually ships in 2-12 days

0

63

Snapper 2860765

CAPSCREW, THD Cut, M8, 1.25 x 30
(Superseded to 2860765YP)

$3.99

$

Usually ships in 2-12 days

0

64

Snapper 1736066

PIN, Drive
(Superseded to 1736066YP)

$3.99

$

Usually ships in 2-12 days

0

65

Snapper 1723893

WIRE, Tie

$

$

Not available

66

Snapper 2860266

CLAMP, Worm Drive
(Superseded to 2860266SM)

$7.49

$

Usually ships in 2-12 days

0
