RD 2140 (2690774) - Snapper LT300 Series 40" Lawn Tractor, 21hp 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

LT300 Series 40" Lawn Tractor, 21hp

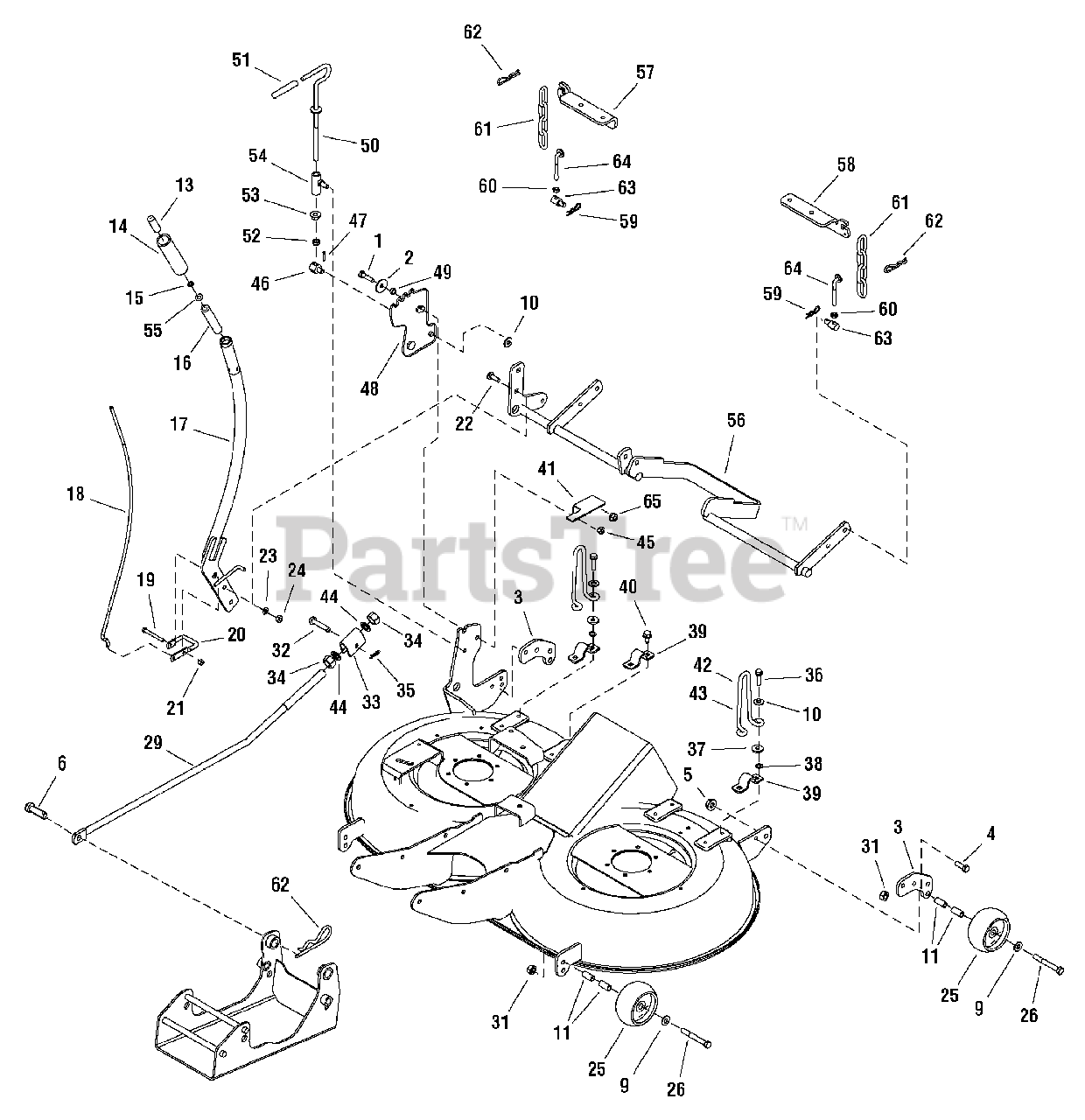

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Snapper 1921977

CAPSCREW, Hex Head 5/16-18 x 1-1/4 G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

2

Snapper 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

3

Snapper 1733899A

BRACKET, Flat Mounting
(Superseded to 1733899ASM)

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 1921333

CAPSCREW, Hex Head 5/16-18 x 1 G5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 1960686

NUT, Hex Flange 5/16-18 Esna
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

6

Snapper 1960116

PIN, Clevis
(Superseded to 1960116SM)

$3.99

$

In Stock, only 2 left!

0

9

Snapper 1960170

WASHER, Flat. .5
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

10

Snapper 1924940

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1960687

NUT, Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 1723124

BUTTON
(Superseded to 1723124SM)

$5.99

$

In Stock, Qty 20+

0

14

Snapper 1713995

GRIP
(Superseded to 1713995SM)

$12.99

$

In Stock, only 1 left!

0

15

Snapper 1960674

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 1723321

SPRING, Compression
(Superseded to 1723321SM)

$6.99

$

In Stock, only 4 left!

0

17

Snapper 1732751A

HANDLE ASSEMBLY, Lift Curved
(Superseded to 1732751ASM)

$112.99

$

Usually ships in 2-12 days

0

18

Snapper 1732754

ROD, Curved
(Superseded to 1732754SM)

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 1921159

CAPSCREW, Hex Head 1/4-20 x 2-1/4 G5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 1720599

LATCH
(Superseded to 1720599SM)

$22.99

$

Usually ships in 2-12 days

0

21

Snapper 1920397

NUT, Hex Lock Esna Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1931335

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

23

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 1917372

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 1714760

WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

26

Snapper 2108765

CAPSCREW, Hex Head 3/8-16 x 3 G5
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

29

Snapper 1722661

ROD
(Superseded to 1722661SM)

$24.99

$

Usually ships in 2-12 days

0

31

Snapper 2860681

NUT, Hex Toplock Spiralock Flange 3/8-16
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

32

Snapper 2118053

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

33

Snapper 1706645A

TRUNNION
(Superseded to 1706645ASM)

$8.49

$

Usually ships in 2-12 days

0

34

Snapper 1915726

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

35

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

36

Snapper 1931202

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

37

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 1933988

NUT, Push Pal 5/16 Diameter Thread
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 1665374

STRAP, Rocker Shaft
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

40

Snapper 1664847

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

41

Snapper 1720931A

BRACKET, Height of Cut
(Superseded to 1720931ASM)

$10.99

$

Usually ships in 2-12 days

0

43

Snapper 1719929

UPSTOP
(Superseded to 1719929SM)

$16.99

$

Usually ships in 2-12 days

0

44

Snapper 1960703

WASHER, 5/8
(Superseded to 1960703SM)

$4.49

$

In Stock, only 2 left!

0

45

Snapper 1919438

NUT, Hex Lock ESNA Light, 5/16-18
(Superseded to 1919438SM)

$3.99

$

In Stock, Qty 20+

0

46

Snapper 2108512

PIVOT, 3/4 Hex & 3/8
(Superseded to 2108512SM)

$36.99

$

In Stock, only 1 left!

0

47

Snapper 1918447

PIN, Cotter 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

48

Snapper 1723409A

BRACKET, Adjusting
(Superseded to 1723409ASM)

$14.99

$

Usually ships in 2-12 days

0

49

Snapper 1666697

SPACER
(Superseded to 1666697SM)

$6.49

$

In Stock, only 2 left!

0

50

Snapper 1720704

ROD & WASHER ASSEMBLY
(Superseded to 1720704SM)

$22.99

$

Usually ships in 2-12 days

0

51

Snapper 1651820

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

52

Snapper 1917421

NUT, Hex Jam 3/8-16
(Superseded to 1917421SM)

$4.99

$

In Stock, Qty 9

0

53

Snapper 1960601

NUT, Hex Flange 3/8-16
(Superseded to 1960601SM)

$3.49

$

Usually ships in 2-12 days

0

54

Snapper 2108241

GUIDE ASSEMBLY, Rod
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

55

Snapper 1918265

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

56

Snapper 1733065A

SHAFT ASSEMBLY, Rocker 40"
(Superseded to 1735095ASM)

$245.99

$

Usually ships in 2-12 days

0

57

Snapper 1727102A

HANGER, R.H.
(Superseded to 1727102ASM)

$30.99

$

Usually ships in 2-12 days

0

58

Snapper 1727103A

HANGER, L.H.
(Superseded to 1727103ASM)

$24.99

$

Usually ships in 2-12 days

0

59

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

60

Snapper 1920161

NUT, Hex Jam 5/16-18
(Superseded to 1920161SM)

$4.49

$

In Stock, only 2 left!

0

61

Snapper 1708088A

CHAIN, Link
(Superseded to 1708088ASM)

$11.99

$

In Stock, only 1 left!

0

62

Snapper 1960033

CLIP, Hair Pin
(Superseded to 1960033SM)

$3.49

$

In Stock, Qty 20+

0

63

Snapper 1731382

TRUNNION
(Superseded to 1731382SM)

$34.99

$

In Stock, only 2 left!

0

64

Snapper 1731384

ROD, Height Adjusting
(Superseded to 1737124YP)

$

$

Not available

65

Snapper 1930645

NUT, Hex Flange 3/8-16 Two-Way Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
