RD 2040 (2690114) - Snapper LT300 Series 40" Lawn Tractor, 20hp Mulching Group Parts Diagram

LT300 Series 40" Lawn Tractor, 20hp

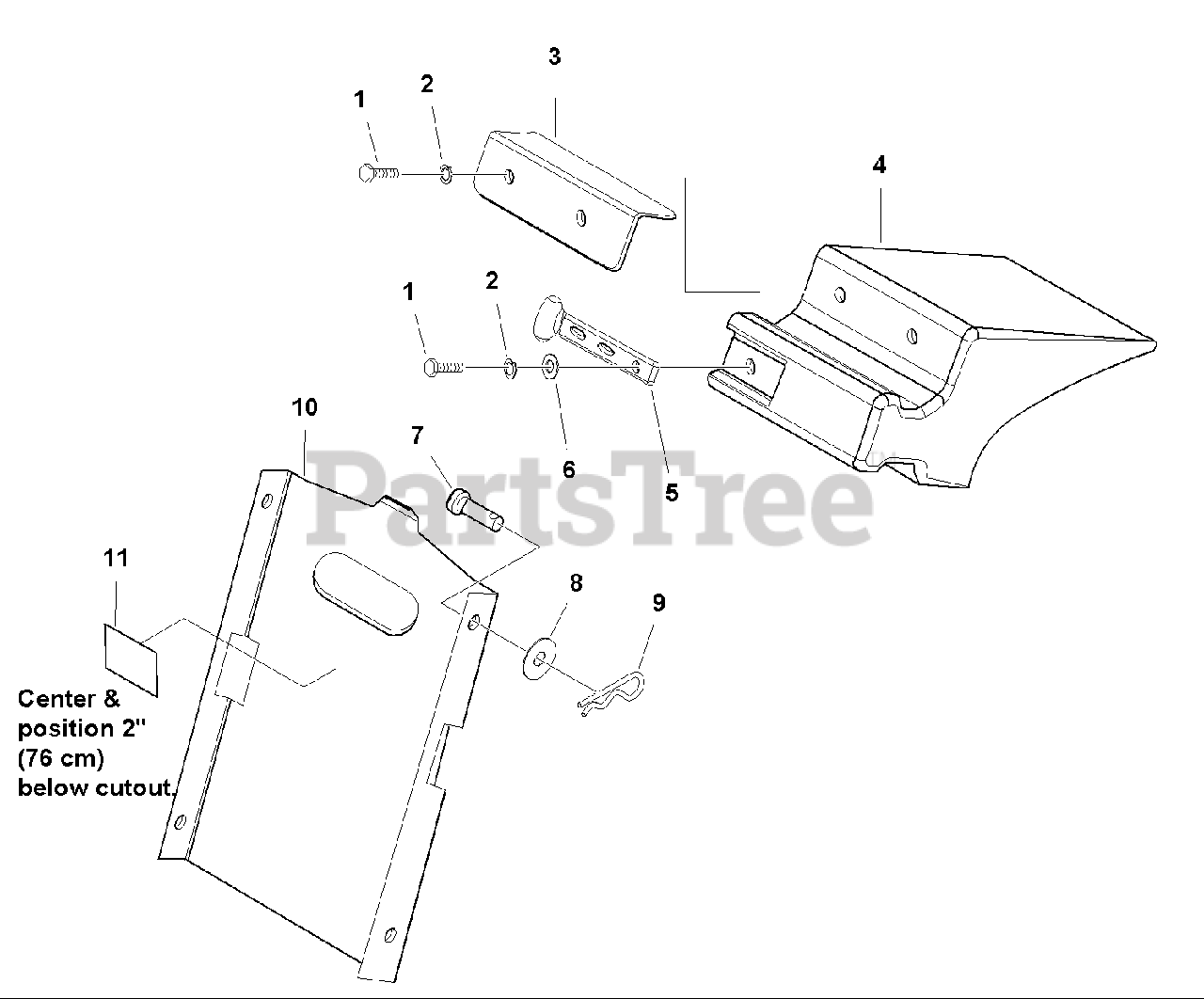

Mulching Group Parts Diagram

  • Title
1

Snapper 1923341

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

2

Snapper 1916964

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

3

Snapper 1723652

BRACKET, Mulching Plug
(Superseded to 1723652ASM)

$10.99

$

Usually ships in 2-12 days

0

4

Snapper 1723651

PLUG, Mulching
(Superseded to 1723651SM)

$71.99

$

Usually ships in 2-12 days

0

5

Snapper 2171600

STRAP, Hood, Black Rubber
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

6

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 1723683

PIN, Clevis
(Superseded to 1723683SM)

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 1919381

WASHER, 5/16
(Superseded to 1919381SM)

$4.49

$

In Stock, only 2 left!

0

9

Snapper 1960074

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 1724638

GUARD & DEFLECTOR ASSEMBLY

$

$

Not available

11

Snapper 1720391

DECAL, Danger
(Superseded to 1720391SM)

$28.99

$

Usually ships in 2-12 days

0
