RD 18S40 (2690624) - Snapper LT300 Series 40" Lawn Tractor, 18hp Engine Group - 18 HP INTEK Single Cyl. Parts Diagram

LT300 Series 40" Lawn Tractor, 18hp

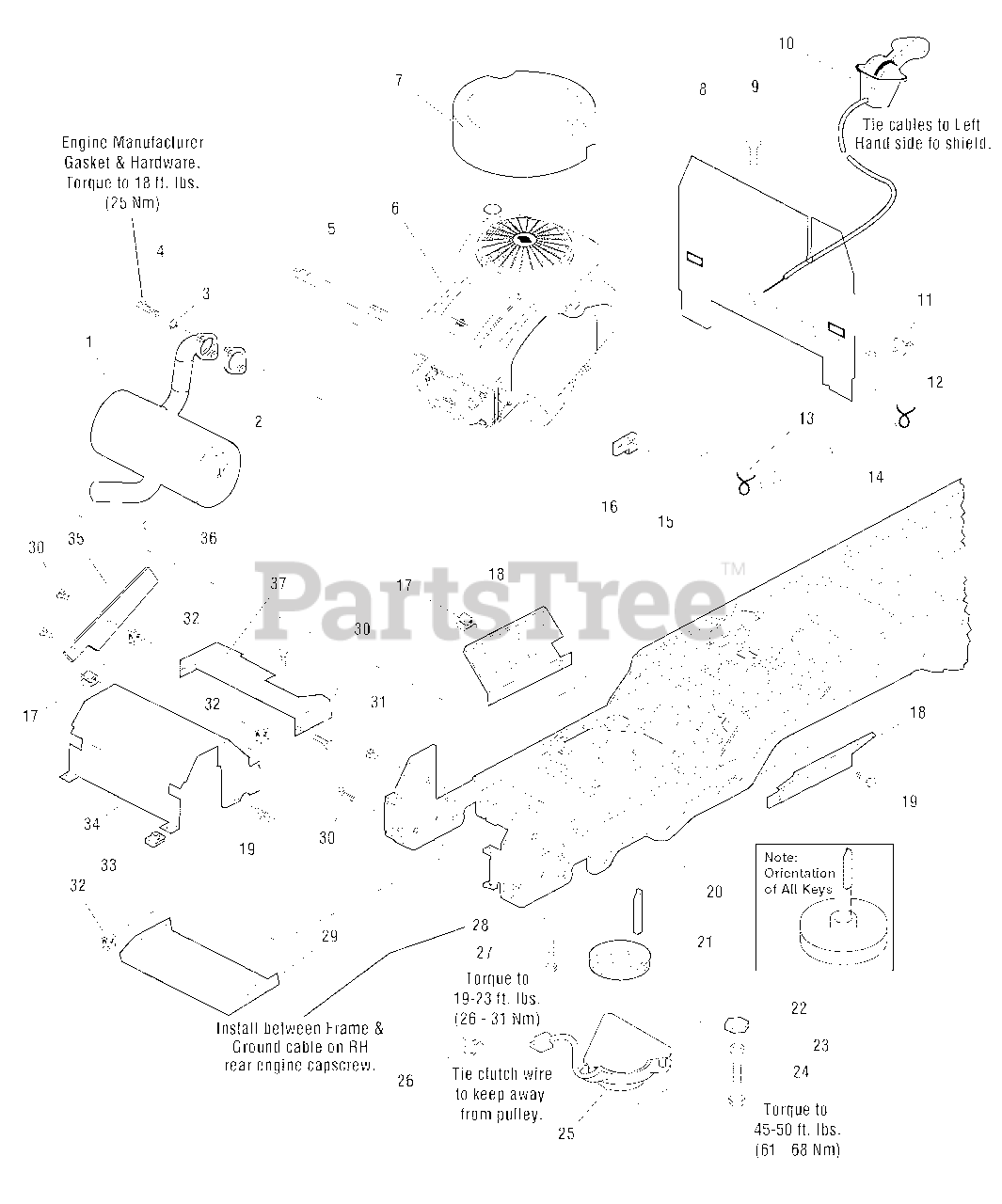

Engine Group - 18 HP INTEK Single Cyl. Parts Diagram

  • Title

1

Snapper 1723467

MUFFLER
(Superseded to 1723467SM)

$131.99

$

Usually ships in 2-12 days

0

2

* GASKET

$

$

Not available

3

Snapper 1917356

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

4

Snapper 2960660

CAPSCREW, Socket Head, 5/16-18 x 7/8, G8
(Superseded to 2960660YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 1723165

HOSE, Oil Drain
(Superseded to 1723165SM)

$20.99

$

In Stock, Qty 8

0

6

* ENGINE, 18HP B&S INTEK Single Mod. 31H777-0118-E1

$

$

Not available

7

Snapper 1722950

SEAL, Circle
(Superseded to 1722950SM)

$54.99

$

In Stock, only 2 left!

0

8

Snapper 1722388A

BULKHEAD
(Superseded to 1722388ASM)

$39.99

$

Usually ships in 2-12 days

0

9

Snapper 1925003

CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

10

Snapper 1724013

CONTROL, Throttle/Choke
(Superseded to 1724013SM)

$78.99

$

Usually ships in 2-12 days

0

11

Snapper 2925094

TIE
(Superseded to 1701011SM)

$5.49

$

In Stock, only 2 left!

0

12

Snapper 1723894

EDGING, Rubber
(Superseded to 1723894SM)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 2960112

CLAMP, Hose Type E
(Superseded to 2860112SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper 1723174

HOSE, 59" Long

$

$

Not available

15

Snapper 1726466

SCREW, Trox Head Taptite, #8-32 x 1/2
(Superseded to 1726466SM)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper 1726465

PLATE, Limiter RPM
(Superseded to 1726465SM)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 2934683

CLIP, Wire
(Superseded to 703176)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 1722392A

SHIELD
(Superseded to 1722392ASM)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 1929000

SCREW, Hex Head Taptite, 1/4-20 x 3/8
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

20

Snapper 1720463

KEY
(Superseded to 1720463SM)

$8.99

$

In Stock, only 1 left!

0

21

Snapper 1722288

PULLEY & HUB ASSEMBLY, 4-1/2 OD
(Superseded to 1739847YP)

$42.99

$

In Stock, only 1 left!

0

22

Snapper 1708264

WASHER, Hex
(Superseded to 1708264SM)

$8.99

$

In Stock, Qty 5

0

23

Snapper 1918199

LOCKWASHER, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

24

Snapper 1960648

CAPSCREW, Hex Head, 7/16-20 x 2-3/4
(Superseded to 1960648SM)

$6.49

$

Usually ships in 2-12 days

0

25

Snapper 1720532

CLUTCH, Electric, OGURA
(Superseded to 1687746YP)

$376.99

$

In Stock, only 1 left!

0

26

Snapper 2932747

TIE
(Superseded to 2832747SM)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 2930598

CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2
(Superseded to 704010)

$4.99

$

Usually ships in 2-12 days

0

28

Snapper 2920427

LOCKWASHER, External Tooth, 3/8
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper 1722414A

SHIELD, Muffler Bottom
(Superseded to 1722414ASM)

$20.99

$

Usually ships in 2-12 days

0

30

Snapper 1960295

CAPSCREW, Hex Head Flange Lock1/4-20 x 5/8
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

31

Snapper 1924856

CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

32

Snapper 1960368

NUT, Speed, 1/4-20
(Superseded to 705876)

$4.49

$

In Stock, Qty 20+

0

33

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, only 2 left!

0

34

Snapper 1722389A

DUCT, Muffler Top
(Superseded to 1722389ASM)

$80.99

$

Usually ships in 2-12 days

0

35

Snapper 1723897A

GUARD, Manifold Pipe
(Superseded to 1723897ASM)

$10.99

$

Usually ships in 2-12 days

0

36

Snapper 2172434

CLIP, Wire
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

37

Snapper 1722390A

DUCT, Muffler Extension
(Superseded to 1722390ASM)

$12.99

$

Usually ships in 2-12 days

0
