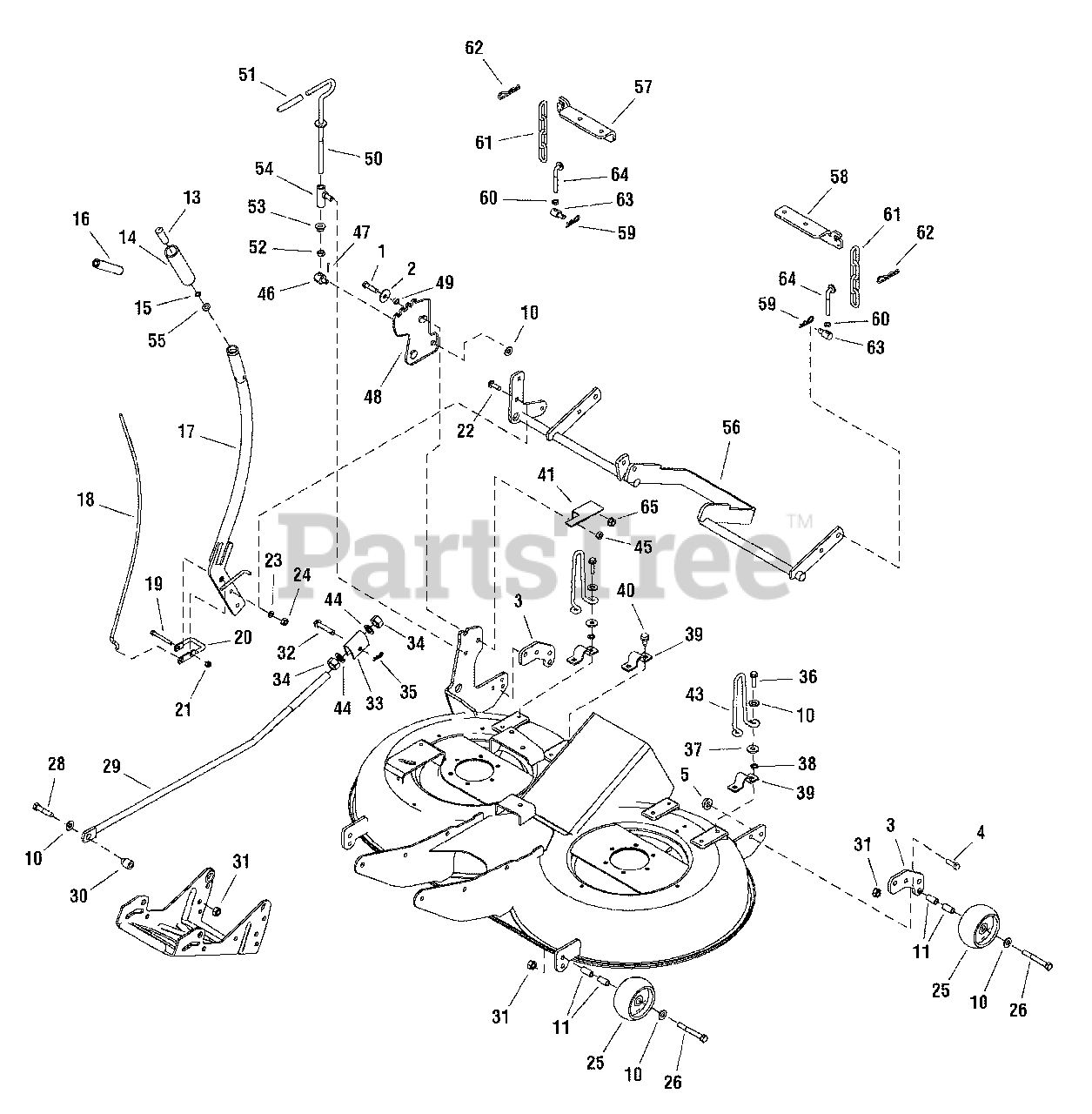

RD 18S40 (2690624) - Snapper LT300 Series 40" Lawn Tractor, 18hp 40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

LT300 Series 40" Lawn Tractor, 18hp

40" Mower Deck - Height Adjustment & Roller Bar Parts Diagram

  • Title

1

Snapper 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 7

0

2

Snapper 1960044SM

WASHER, 5/16

$4.49

$

In Stock, only 3 left!

0

3

Snapper 1733899ASM

BRACKET, Flat Mounting

$8.99

$

Usually ships in 2-12 days

0

4

Snapper 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

5

Snapper 1960686SM

NUT, Hex Flange 5/16-18 Esna
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1669585SM

SPACER

$6.49

$

Usually ships in 2-12 days

0

13

Snapper 1723124SM

BUTTON,

$5.99

$

In Stock, Qty 20+

0

14

Snapper 1713995SM

GRIP

$12.99

$

In Stock, only 1 left!

0

15

Snapper 1960674SM

NUT, Push Pal 1/4 Diameter Thread
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 1723321SM

SPRING, Compression

$6.99

$

In Stock, only 4 left!

0

17

Snapper 1732751ASM

HANDLE ASSEMBLY, Lift Curved

$112.99

$

Usually ships in 2-12 days

0

18

Snapper 1732754SM

ROD, Curved

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 1921159SM

CAPSCREW, Hex Head 1/4-20 x 2-1/4 G5
(Superseded to 704291)

$5.49

$

Usually ships in 2-12 days

0

20

Snapper 1720599SM

LATCH

$22.99

$

Usually ships in 2-12 days

0

21

Snapper 1920397SM

NUT, Hex Lock Esna Light 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

22

Snapper 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

23

Snapper 1917356SM

LOCKWASHER, Spring 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 1917372SM

NUT, Hex 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 1714760SM

WHEEL

$6.49

$

In Stock, Qty 20+

0

26

Snapper 1923903SM

CAPSCREW, Hex Head 3/8-16 x 3 G5

$4.49

$

In Stock, only 1 left!

0

28

Snapper 1922606SM

CAPSCREW, Hex Head, 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 12

0

29

Snapper 1722661SM

ROD

$24.99

$

Usually ships in 2-12 days

0

30

Snapper 1706644SM

SPACER, 3/8 x 3/4 x 15/16

$8.49

$

In Stock, only 1 left!

0

31

Snapper 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

32

Snapper 2118053SM

PIN, Round Head Drilled 3/8 x 2
(Superseded to 704241)

$9.99

$

In Stock, only 2 left!

0

33

Snapper 1706645ASM

TRUNNION
(Superseded to 84003858)

$8.49

$

Usually ships in 2-12 days

0

34

Snapper 1915726SM

NUT, Hex 5/8-11
(Superseded to 703912)

$3.49

$

In Stock, Qty 5

0

35

Snapper 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 1 left!

0

36

Snapper 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, only 3 left!

0

37

Snapper 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 1933988SM

NUT, Push Pal 5/16 Diameter Thread
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

39

Snapper 1665374SM

STRAP
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

40

Snapper 1664847SM

SCREW, Hex Washer Head Taptite 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

41

Snapper 1720931ASM

BRACKET, Height of Cut

$10.99

$

Usually ships in 2-12 days

0

42

Snapper 1719846ASM

BAR

$20.99

$

Usually ships in 2-12 days

0

43

Snapper 1719929SM

STOP, Up

$16.99

$

Usually ships in 2-12 days

0

44

Snapper 1960703SM

WASHER, 5/8

$4.49

$

In Stock, only 2 left!

0

45

Snapper 1919438SM

NUT, Hex Lock Esna Light 5/6-18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

46

Snapper 2108512SM

PIVOT, 3/4 Hex & 3/8

$36.99

$

In Stock, only 1 left!

0

47

Snapper 1918447SM

COTTER PIN,
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

48

Snapper 1723409ASM

BRACKET, Adjusting

$14.99

$

Usually ships in 2-12 days

0

49

Snapper 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

50

Snapper 1720704SM

ROD & WASHER ASSEMBLY

$22.99

$

Usually ships in 2-12 days

0

51

Snapper 1651820SM

GRIP
(Superseded to 5023198SM)

$4.49

$

In Stock, only 2 left!

0

52

Snapper 1917421SM

NUT, Hex Jam 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

53

Snapper 1960601SM

NUT, Hex Flange 3/8-16

$3.49

$

Usually ships in 2-12 days

0

54

Snapper 2108241SM

GUIDE ASSEMBLY, Rod
(Superseded to 2108241AYP)

$50.99

$

Usually ships in 2-12 days

0

55

Snapper 1918265SM

WASHER, 5/16
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

56

Snapper 1733065ASM

SHAFT ASSEMBLY, Rocker 40"
(Superseded to 1735095ASM)

$245.99

$

Usually ships in 2-12 days

0

57

Snapper 1727102ASM

HANGER, R.H.

$30.99

$

Usually ships in 2-12 days

0

58

Snapper 1727103ASM

HANGER, L.H.

$24.99

$

Usually ships in 2-12 days

0

59

Snapper 1960074SM

CLIP, Hair Pin
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

60

Snapper 1920161SM

NUT, Hex Jam 5/16-18

$4.49

$

In Stock, only 2 left!

0

61

Snapper 1708088ASM

CHAIN, Link

$11.99

$

In Stock, only 1 left!

0

62

Snapper 1960033SM

CLIP, Hair Pin

$3.49

$

In Stock, Qty 20+

0

63

Snapper 1731382SM

TRUNNION

$34.99

$

In Stock, only 2 left!

0

64

Snapper 1731384SM

ROD, Height Adjusting
(Superseded to 1737124YP)

$

$

Not available

65

Snapper 1930645SM

NUT, Hex Flange 3/8-16 Two-Way Lock
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
