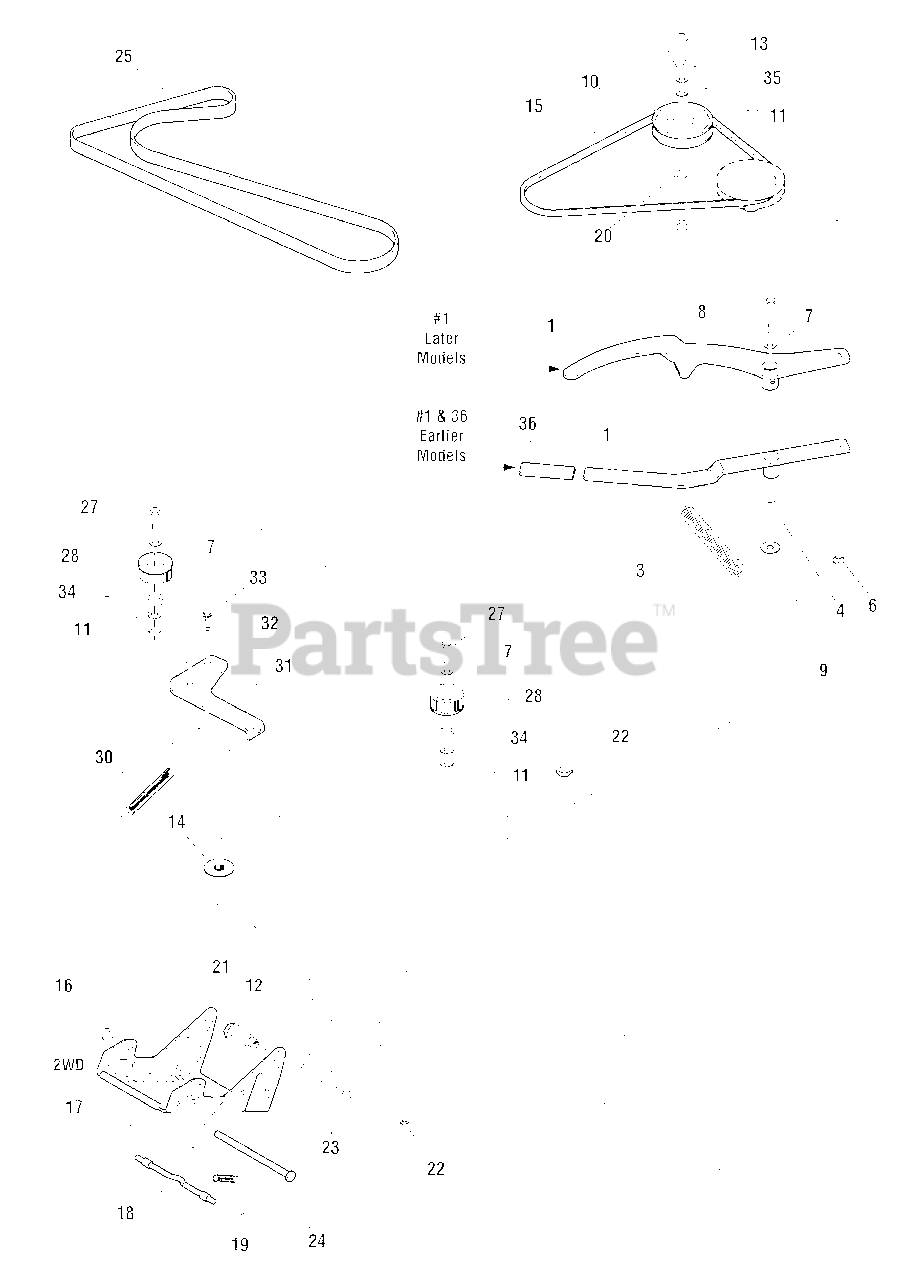

RD 18S40 (2690624) - Snapper LT300 Series 40" Lawn Tractor, 18hp 40" Mower Deck - Belt, Idle Arm & Hitch Parts Diagram

LT300 Series 40" Lawn Tractor, 18hp

40" Mower Deck - Belt, Idle Arm & Hitch Parts Diagram

  • Title

1

Snapper 1720444SM

IDLER ARM ASSEMBLY, w/Bushings
(Superseded to 1734495SM)

$90.99

$

Usually ships in 2-12 days

0

1

Snapper 1734495SM

IDLER ARM ASSEMBLY, w/Bushings

$90.99

$

Usually ships in 2-12 days

0

3

Snapper 1715435SM

SPRING, Extension

$9.49

$

In Stock, Qty 20+

0

4

Snapper 1657242SM

SPACER

$10.99

$

In Stock, Qty 10

0

6

Snapper 1960615SM

BOLT, Carriage, 3/8-16 X 2 1/2

$5.49

$

In Stock, only 1 left!

0

7

Snapper 1922755SM

WASHER
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

8

Snapper 1960614SM

CAPSCREW, Hex Head, 3/8-16 x 3, G8

$4.99

$

In Stock, only 1 left!

0

9

Snapper 1933263SM

WASHER
(Superseded to 703990)

$6.99

$

In Stock, Qty 20+

0

10

Snapper 2101096SM

PULLEY, 4-1/2 OD

$59.99

$

In Stock, only 3 left!

0

11

Snapper 1924940SM

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

12

Snapper 1732443SM

SPACER, 3/8 x 3/4 x 3/4

$5.99

$

In Stock, Qty 20+

0

13

Snapper 1919439SM

NUT, Hex Lock ESNA, 3/8-16
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

14

Snapper 1721425SM

WASHER & LOCK NUT ASSEMBLY, 3/8-16

$

$

Not available

15

Snapper 1735714SM

V-BELT

$49.99

$

Usually ships in 2-12 days

0

16

Snapper 1960519SM

NUT, Push
(Superseded to 703179)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 1720044ASM

HITCH, Mower
(Superseded to 1760192AYP)

$155.99

$

In Stock, only 1 left!

0

18

Snapper 1715759SM

ROD, 3/8 x 8

$7.99

$

In Stock, Qty 10

0

19

Snapper 2156302SM

SPRING, Extension

$6.49

$

In Stock, Qty 20+

0

20

Snapper 2157081SM

SPACER

$8.99

$

In Stock, only 4 left!

0

22

Snapper 1928352SM

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703793)

$4.49

$

In Stock, only 3 left!

0

21

Snapper 2860681SM

NUT, Hex Flange, 3/8-16

$4.49

$

In Stock, Qty 7

0

23

Snapper 1921968SM

CAPSCREW, Hex, 3/8-16 x 1-3/8

$4.49

$

In Stock, only 3 left!

0

24

Snapper 1713578SM

ROD

$15.99

$

In Stock, only 1 left!

0

25

Snapper 1724626SM

BELT, Timing

$179.99

$

Usually ships in 2-12 days

0

27

Snapper 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

28

Snapper 1731892SM

PULLEY, Idler

$67.99

$

Usually ships in 2-12 days

0

30

Snapper 1674671SM

SPRING, Extension

$24.99

$

In Stock, Qty 5

0

31

Snapper 1726387ASM

ARM, Idler

$55.99

$

Usually ships in 2-12 days

0

32

Snapper 1666697SM

SPACER

$6.49

$

In Stock, only 2 left!

0

33

Snapper 1930601SM

CAPSCREW, Hex Head Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

34

Snapper 1719221SM

HUB, Pulley

$23.99

$

Usually ships in 2-12 days

0

35

Snapper 1719842ASM

STOP, Belt

$17.99

$

Usually ships in 2-12 days

0

36

Snapper 1719965SM

Grip, Black

$5.49

$

Usually ships in 2-12 days

0
