RD 18S40 (2690508) - Snapper LT300 Series 40" Lawn Tractor, 18hp Lift Group Parts Diagram

LT300 Series 40" Lawn Tractor, 18hp

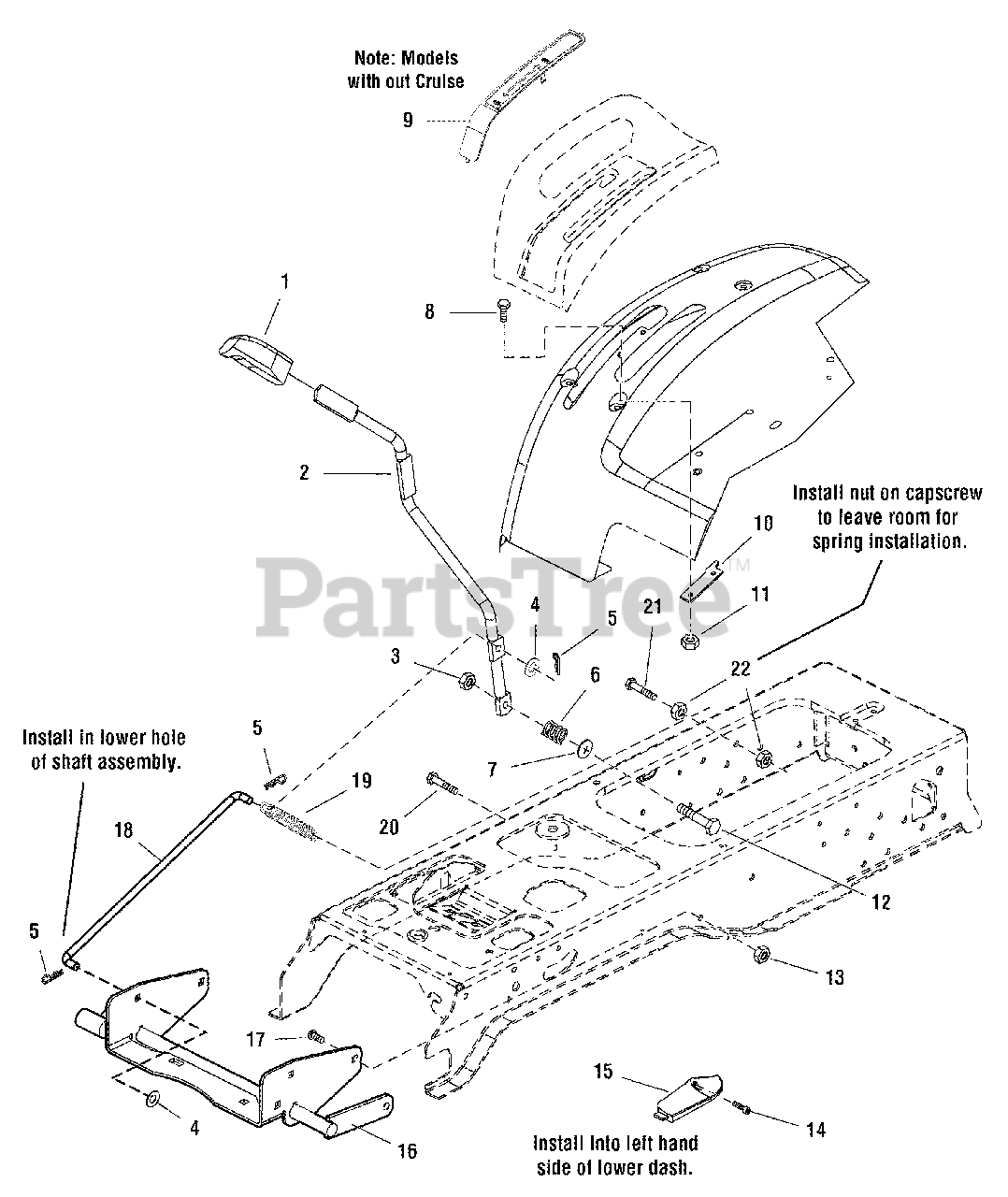

Lift Group Parts Diagram

  • Title

1

Snapper 1722302

GRIP, Black Vinyl
(Superseded to 1722302SM)

$8.49

$

In Stock, Qty 10

0

2

Snapper 1722024A

ROD, Lift Lever
(Superseded to 1722024ASM)

$37.99

$

In Stock, only 1 left!

0

3

Snapper 1930645

NUT, Hex Flange Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Snapper 1924940

WASHER
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

6

Snapper 2162085

SPRING, Compression
(Superseded to 2162085SM)

$6.99

$

In Stock, Qty 7

0

7

Snapper 1723866

NUT, Push, 3/8
(Superseded to 1723866SM)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 1923341

CAPSCREW, Hex Head, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0

9

Snapper 1722313

COVER, W/Lift Icon, models without cruise
(Superseded to 1722313SM)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 1722284A

QUADRANT
(Superseded to 1722284ASM)

$6.49

$

Usually ships in 2-12 days

0

11

Snapper 1920397

NUT, Hex Lock ESNA, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

12

Snapper 1923701

CAPSCREW, Hex Head, 3/8-16 x 2
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 1960636

NUT, KEPS Lock, 5/16-18
(Superseded to 1960636SM)

$4.99

$

In Stock, only 1 left!

0

14

Snapper 1722607

SCREW, Torx Head, # 8-16 x 1/2
(Superseded to 1722607SM)

$3.99

$

In Stock, only 1 left!

0

15

Snapper 1722285

COVER, Dash, modles without cruise
(Superseded to 1722285SM)

$6.99

$

Usually ships in 2-12 days

0

16

Snapper 1726404

LIFT SHAFT ASSEMBLY
(Superseded to 1726404ASM)

$125.99

$

Usually ships in 2-12 days

0

17

Snapper 1931333

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

18

Snapper 1725037

ROD, Lift
(Superseded to 1725037SM)

$19.99

$

Usually ships in 2-12 days

0

19

Snapper 2156302

SPRING
(Superseded to 2156302SM)

$6.49

$

In Stock, Qty 20+

0

20

Snapper 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

21

Snapper 1921971

CAPSCREW, Hex Head, 3/8-16 x 1-3/4
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

22

Snapper 1960680

NUT, KEPS Lock, 3/8-16
(Superseded to 1960680SM)

$6.49

$

Usually ships in 2-12 days

0
