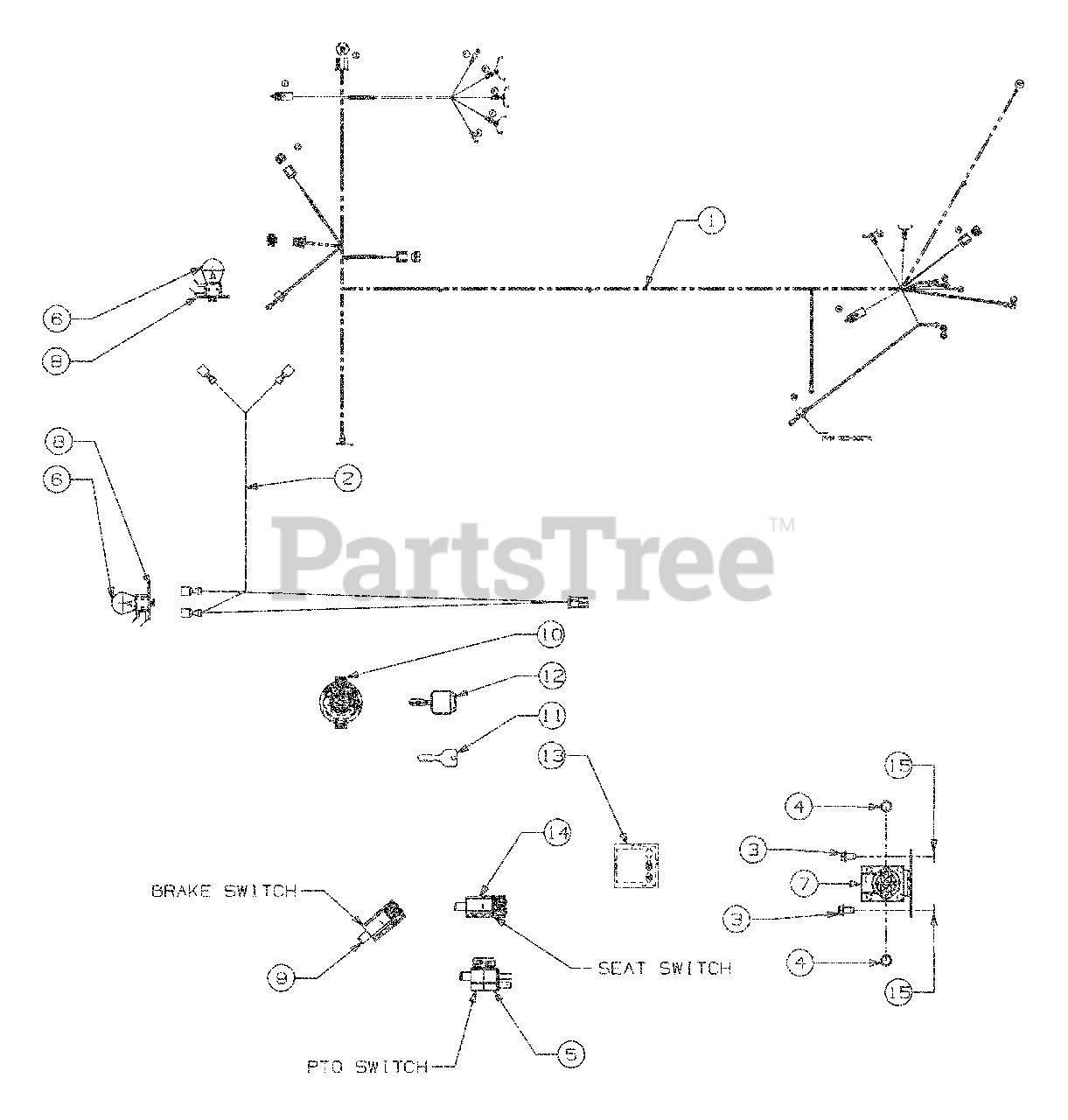

RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2004) Electrical Parts Diagram

42" Lawn Tractor

Electrical Parts Diagram

  • Title

15

White Outdoor 736-0222

EXTERN L-WASH 1/4

$5.99

$

In Stock, only 3 left!

0

14

725-2013

SW:INTLK:NO/NO SNAP MT

$

$

Not available

13

White Outdoor 725-1758

IND:MONITOR:W/AMMETER

$39.99

$

In Stock, only 1 left!

0

12

White Outdoor 725-1745

KEY:DELTA PLASTIC
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

11

White Outdoor 725-1744

KEY:SW:DELTA
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

10

White Outdoor 725-1741

SW:KEY:4 POS DELTA
(Superseded to 925-1741)

$45.99

$

In Stock, Qty 7

0

9

White Outdoor 725-1657A

SW:INTLK:NO/NC SNAP MT
(Superseded to 925-1657A)

$24.99

$

In Stock, only 4 left!

0

8

White Outdoor 725-1649

SOC:LAM:NYLON 1/4 TURN
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

7

White Outdoor 725-1426

SOL:12V:100 AMP
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

6

White Outdoor 725-0963

MINIATURE LAMP 12V SOCKET TYPE
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

5

White Outdoor 725-04038

SW:DELTA:NO/NC/NC SNAP MT
(Superseded to 925-04038)

$20.99

$

In Stock, only 1 left!

0

4

White Outdoor 712-0271

NUT:HEX:1/4-20:SEMS

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-0599

SCR:TT:1/4-20:0.500:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

2

White Outdoor 629-0469B

HARN ASM:UNIVERSAL:HEADLIGHT
(Superseded to 929-0469B)

$55.99

$

Usually ships in 3-6 days

0

1

629-04021

HARN ASM:500:MANPTO W/MON

$

$

Not available
