RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2004) Drive Parts Diagram

42" Lawn Tractor

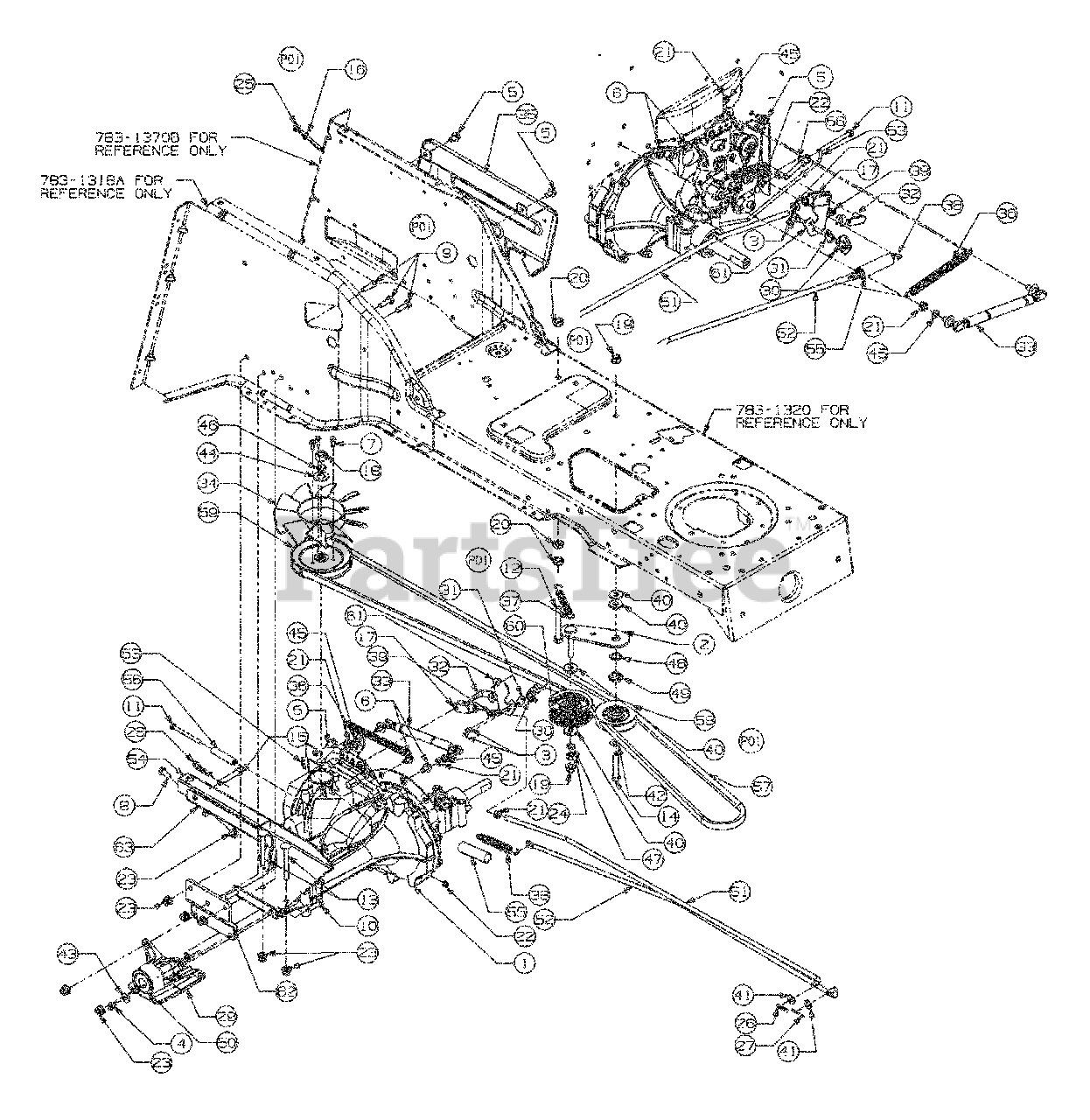

Drive Parts Diagram

  • Title

1

618-0389A

TRANS ASM:HYDRO

$

$

Not available

2

683-0604A

BRKT ASM:IDLR:DBL

$

$

Not available

3

White Outdoor 710-0227

SCR:AB:#8-18:0.500:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0599

SCR:TT:1/4-20:0.500:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0604A

SCR:TT:5/16-18:0.625:HXINDWSH

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 710-0607

SCR:TT:5/16-18:0.500:HXINDWSH

$6.99

$

In Stock, Qty 11

0

7

White Outdoor 710-1189

SCR:C:#12-24:0.625:HXINDWSH

$

$

Not available

8

White Outdoor 710-1681

HHCS:M8-1.25:20.00:GR8.8:STD

$5.99

$

Usually ships in 3-6 days

0

9

MTD 710-1682

HHCS:M8-1.25:25.00 LG DIN 933

$

$

Not available

10

White Outdoor 710-1683

HHCS:M8-1.25:30.00 LG DIN 933

$

$

Not available

11

710-1766

HHCS:M6-1:70.00:DIN 931

$

$

Not available

12

710-1771

BOLT:M10 X 70MM LG

$

$

Not available

13

710-1895

SCR:CARR:M8-1.25:75 LG DIN 603

$

$

Not available

14

White Outdoor 710-3144

HHCS:3/8-16:2.00:GR5:STD

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 711-0679A

PIN:CLEVIS:3/8 DIA X 2.015

$14.99

$

In Stock, only 2 left!

0

16

White Outdoor 711-0747

PIN:GDE:.250 DIA X 1.68 LG

$10.99

$

Usually ships in 3-6 days

0

17

711-1407

FRL:M8-32 X 18 DIA DIN 71752

$

$

Not available

18

White Outdoor 712-0333

NUT:HEX:1/2-20:GR2
(Superseded to 912-0333)

$

$

Not available

19

White Outdoor 712-0431

NUT:FLGLK:3/8-16:GRF:TOP LK
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

712-0637

NUT:M10 X 1.25

$

$

Not available

21

White Outdoor 712-0690

NUT:HEX:M8-1.25 DIN 934

$

$

Not available

22

MTD 712-0691

NUT:HEXLK:M6-1:NYLON DIN 985

$6.99

$

Usually ships in 3-6 days

0

23

White Outdoor 712-0714

NUT:FLGLK:M8-1.25 DIN 6926

$3.99

$

Usually ships in 3-6 days

0

24

White Outdoor 712-3017

NUT:HEX:3/8-16:GR8

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 712-3027

NUT:1/4-20:HEXFLG:LOK:GRF
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

26

White Outdoor 714-0104

PIN:COT:.072 DIA. X 1.13 LG

$4.49

$

In Stock, Qty 20+

0

27

White Outdoor 714-0111

PIN:COT:3/32:1.0

$4.99

$

In Stock, Qty 13

0

28

White Outdoor 714-0147

PIN:COT:.125 X 1.75 INTERNAL

$4.99

$

In Stock, Qty 6

0

29

719-0534

SUPT:CSTG

$

$

Not available

30

White Outdoor 725-1773

SW:SPR:SHORT

$

$

Not available

31

White Outdoor 726-0320

PLATE: INSULATOR NUT
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

32

726-0457

CLIP:M8-32 DIN 71752

$

$

Not available

33

MTD 727-0626

CYL: DAMPER
(Superseded to 927-0626A)

$153.99

$

Usually ships in 3-6 days

0

34

White Outdoor 731-1449A

FAN:BLADE:10
(Superseded to 931-1449A)

$35.99

$

In Stock, Qty 8

0

35

731-2542A

CVR:HYDRO

$

$

Not available

36

White Outdoor 732-0308

SPR:EXTN:.50 DIA X 6.37 LG
(Superseded to 732-0308A)

$11.99

$

In Stock, only 2 left!

0

37

White Outdoor 732-0429A

SPR:EXTN:.50 DIA X 3.97 LG
(Superseded to 932-0429A)

$8.99

$

In Stock, Qty 20+

0

38

White Outdoor 732-0716

SPR:EXT:.59 OD X 4.00 LG
(Superseded to 732-0716D)

$13.99

$

Usually ships in 3-6 days

0

39

732-0891A

SPR:CMPRS:9.6 MM OD X 21.5 LG

$

$

Not available

40

White Outdoor 736-0258

WASH:FLAT:.385 X 1.0 X .135

$4.49

$

In Stock, only 2 left!

0

41

White Outdoor 736-0275

WASH:FLAT:.344 X .688 X .065

$6.99

$

Usually ships in 3-6 days

0

42

White Outdoor 736-0300

WASH:FLAT:.406 X .875 X .059

$4.49

$

In Stock, Qty 20+

0

43

White Outdoor 736-0685

WASH:FLAT:6.4 IDX18 OD DIN9021

$3.49

$

In Stock, only 1 left!

0

44

736-0707

WASH:FLAT:15 ID X 28 OD DIN125

$

$

Not available

45

736-0708

WASH:SCHNORR:8MM

$

$

Not available

46

736-0751

WASH:LOCK:SCHNORR 13 X 18 X1.7

$

$

Not available

47

736-0755

WASH:LOCK:SCHNORR 10.5X16X1.6

$

$

Not available

48

736-0773

WASH:FLAT:16 X 21 X 1 DIN 988

$

$

Not available

49

White Outdoor 738-0372B

SPCR:SHLDR:1.00 X .38 X .38

$9.49

$

In Stock, Qty 20+

0

50

741-0998

BRG:BALL:.75ID X 40MM OD X12MM

$

$

Not available

51

747-1301

ROD:CONT:HYDRO 500 LG

$

$

Not available

52

747-1302B

ROD:BRAKE:HYDRO 500 LONG

$

$

Not available

53

747-1315

ROD:HYDRO:BYPASS 500 LWB

$

$

Not available

54

749-04013

TUBE:SQ:30MM X 30MM X 216MM LG

$

$

Not available

55

White Outdoor 750-0802

SPCR:.640 ID X .76 OD X 2.63

$6.99

$

Usually ships in 3-6 days

0

56

750-1329

SPCR:.275 ID X .50 OD X 2.28

$

$

Not available

57

White Outdoor 754-0125A

BELT:V TYP:1/2 X 105 LG POLY
(Superseded to 954-0125A)

$55.99

$

In Stock, Qty 5

0

58

White Outdoor 756-0236

V-IDLER 6.06 OD-NH#VH-39-AB

$65.99

$

In Stock, only 1 left!

0

59

756-1052

PUL:TRANS:4.50 DIA.

$

$

Not available

60

MTD 756-3054

FLAT IDLER WITH FLANGES 2.75
(Superseded to 956-3054)

$52.99

$

In Stock, only 2 left!

0

61

783-0786

BRKT:ACTR:SW EURO

$

$

Not available

62

783-1371

BRKT:MT:HYDRO

$

$

Not available

63

783-1372

BRKT:HITCH:500

$

$

Not available
