RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2004) Clutch Parts Diagram

42" Lawn Tractor

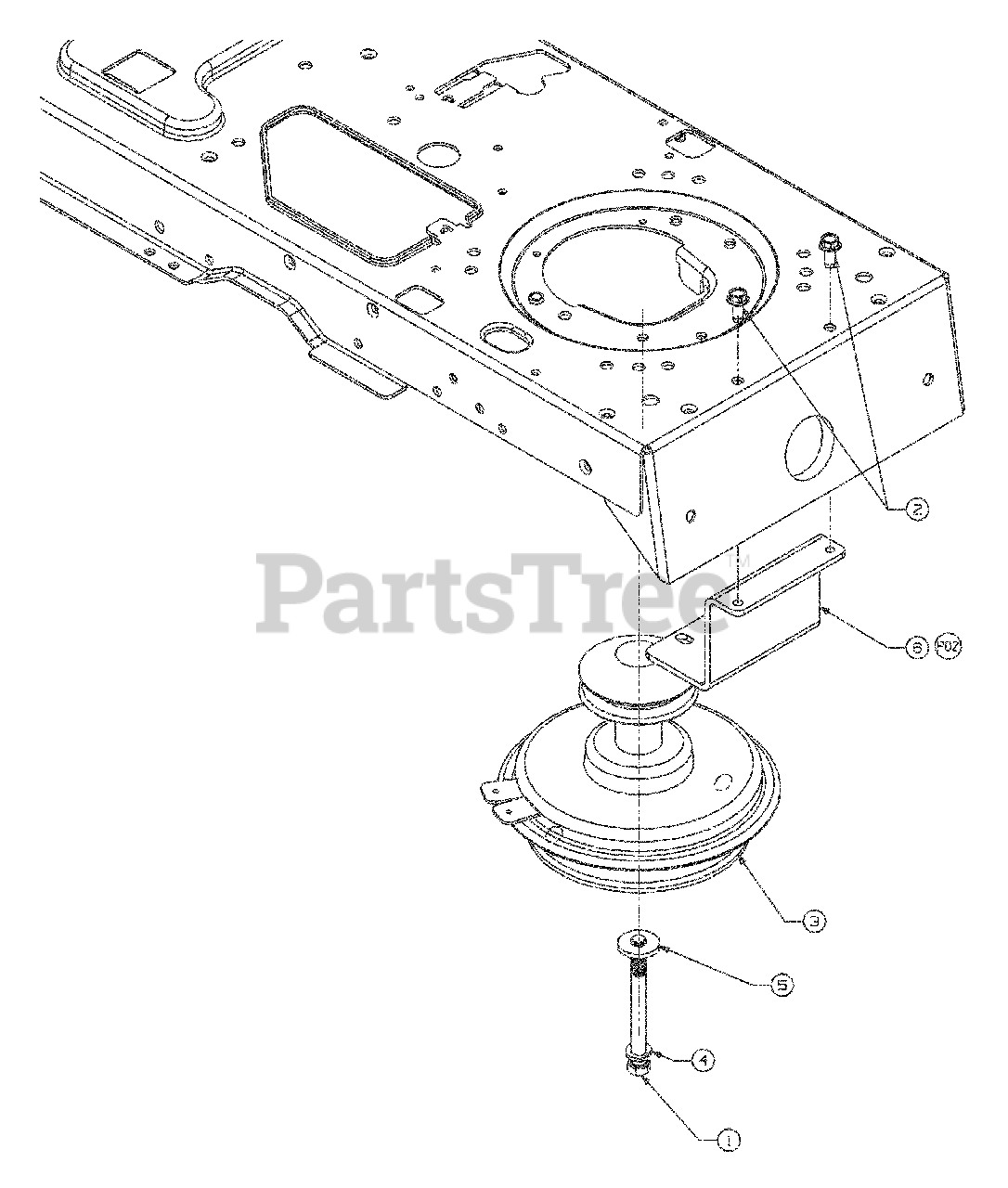

Clutch Parts Diagram

  • Title
6

White Outdoor 783-04000A

BRKT:STOP
(Superseded to 783-04000A-0637)

Variations

White Outdoor 783-04000A-0637

BRACKET-STOP - POWDER BLACK (0637)

$

$

Not available

$

$

5

White Outdoor 736-0322

WASH:FL:.450 IDX 1.250 ODX .164

$9.49

$

In Stock, Qty 8

0

4

White Outdoor 736-0171

WASH:LOCK: 7/16 : REGULAR DUTY

$4.49

$

In Stock, only 4 left!

0

3

White Outdoor 717-1788A

CLU:HYDRO:BRC
(Superseded to 917-1788A)

$562.99

$

Usually ships in 3-6 days

0

2

White Outdoor 710-1260A

SCR:LD:5/16-18:0.750:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

1

White Outdoor 710-04002

HHCS:7/16-20:4.50:GR5:STD

$

$

Not available
