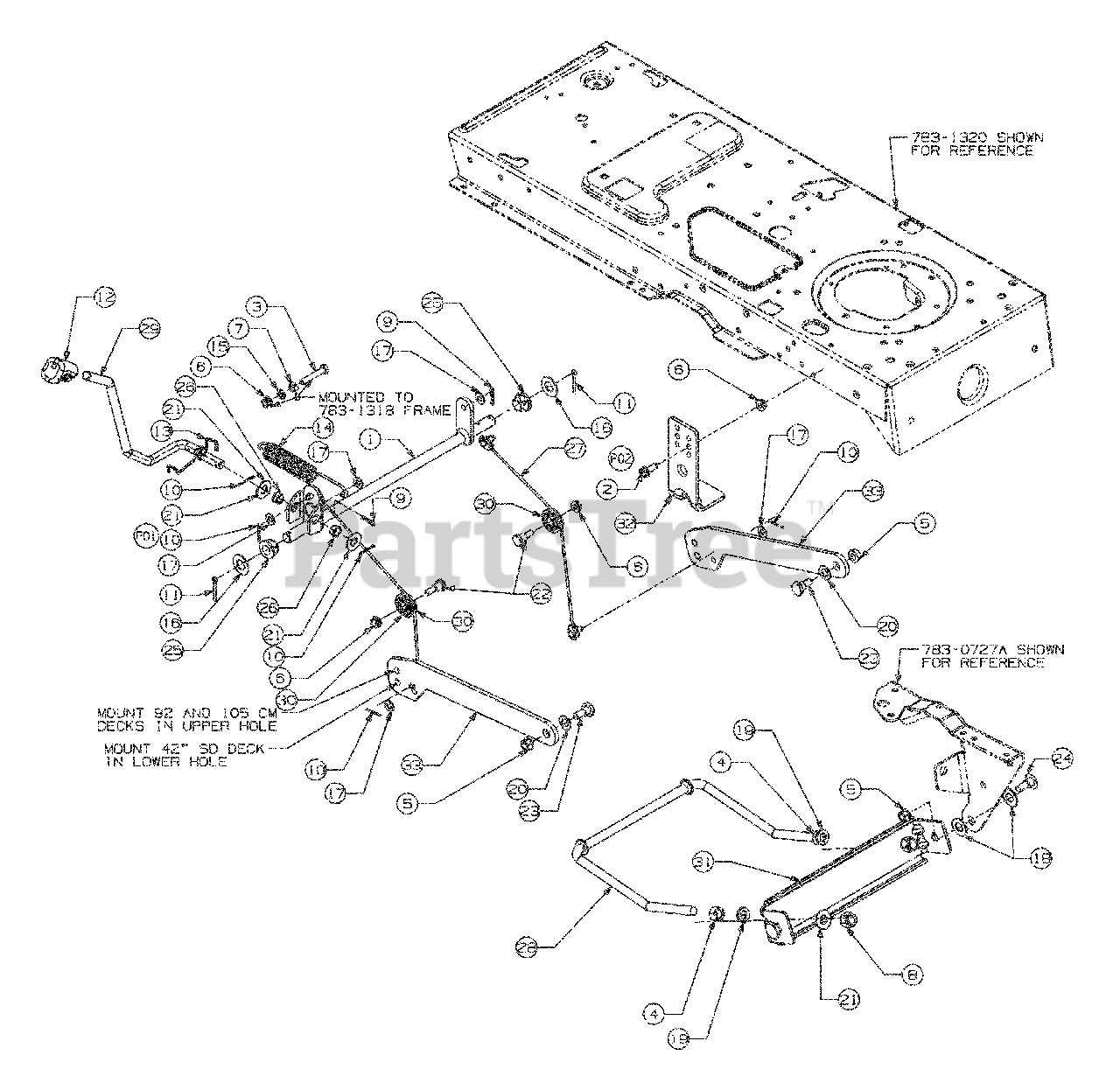

RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2003) Lift Assembly Parts Diagram

42" Lawn Tractor

Lift Assembly Parts Diagram

  • Title

33

783-1328

ARM:LIFT

$

$

Not available

32

White Outdoor 783-0891B

BRKT:DECK:UP STOP

Variations

White Outdoor 783-0891B-0637

Deck Up-Stop Bracket - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0665

Deck Up-Stop Bracket - YARDMAN GREEN (0665)

$37.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0498

BRACKET-DECK UP STOP - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0691

BRACKET-DECK STOP - BLACK JACK (0691)

$34.99

$

Usually ships in 3-6 days

0

White Outdoor 783-0891B-0650

BRACKET-DECK STOP - RED METALLIC (0650)

$

$

Not available

$30.99

$

Usually ships in 3-6 days

0

31

White Outdoor 783-0720A

BRKT:ADJ:FRT DECK ROD
(Superseded to 783-0720C)

Variations

White Outdoor 783-0720A-0637

Deck Adjustment Bracket, Front - POWDER BLACK (0637)

$45.99

$

In Stock, only 2 left!

0

White Outdoor 783-0720A-4008

BRACKET-ADJ:FRT DE - WINE RED (4008)

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

30

White Outdoor 756-1154

PUL:RLR

$7.99

$

In Stock, only 2 left!

0

29

White Outdoor 747-1280

LIFT:ARM

$

$

Not available

28

White Outdoor 747-1130B

ROD:DECK:FRT ADJ .5" DIA

$41.99

$

In Stock, only 3 left!

0

27

White Outdoor 746-1139

CBL:LIFT:14.06 LG

$14.99

$

Usually ships in 3-6 days

0

26

White Outdoor 741-0715

BRG:FLG:SNAP .500 ID
(Superseded to 941-0715)

$

$

Not available

25

White Outdoor 741-0225

BRG:HEX FLNG
(Superseded to 941-0225)

$7.49

$

In Stock, Qty 20+

0

24

White Outdoor 738-0507B

SCR:SHLDER:.500 DIA X .434

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 738-0143

SHLD SCR: 3/8-16

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 738-0138A

SCR:HEX CAP:5/16-18 X .620 GR2

$6.99

$

In Stock, only 2 left!

0

21

White Outdoor 736-3084

WASH:FLAT:.510 X 1.120 X .060

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 736-3068

WASH:FLAT:1/2X.875X.060

$6.99

$

In Stock, only 2 left!

0

19

White Outdoor 736-0921

WASH:LOCK: 1/2 : REGULAR DUTY

$4.49

$

In Stock, Qty 6

0

18

White Outdoor 736-0414

WASH:FLAT:.570X1.120X.062:TEFL

$4.49

$

In Stock, Qty 13

0

17

White Outdoor 736-0275

WASH:FLAT:.344 X .688 X .065

$6.99

$

Usually ships in 3-6 days

0

16

White Outdoor 736-0187

WASH:FL .64 ID X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 736-0119

WASH:LOCK:5/16:REGULAR DUTY
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

14

White Outdoor 732-0971

SPR:EXTN:1.010 OD X 6.500 LG

$23.99

$

In Stock, only 1 left!

0

13

White Outdoor 732-04004

SPR:LIFT 500

$

$

Not available

12

White Outdoor 720-0311

GRIP:HNDL:1/2

$15.99

$

In Stock, only 1 left!

0

11

White Outdoor 714-0162

PIN:COT:5/32:1.25

$4.99

$

In Stock, Qty 20+

0

10

White Outdoor 714-0111

PIN:COT:3/32:1.0

$4.99

$

In Stock, Qty 13

0

9

White Outdoor 714-0104

PIN:COT:.072 DIA. X 1.13 LG

$4.49

$

In Stock, Qty 20+

0

8

White Outdoor 712-3083

NUT:HXLK:1/2-13:GR8:NYLON

$4.49

$

In Stock, Qty 20+

0

7

White Outdoor 712-3010

NUT:HEX:5/16-18:GR5

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-3004A

NUT:FLGLK:5/16-18:GR5:SD LK

$3.99

$

In Stock, Qty 20+

0

5

White Outdoor 712-0431

NUT:FLGLK:3/8-16:GRF:TOP LK
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

4

White Outdoor 712-0206

NUT:HEX:1/2-13:GR5

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-3180

HHCS:5/16-18:1.75:GR5:STD

$5.49

$

In Stock, Qty 20+

0

2

White Outdoor 710-0650

SCR:TT:5/16-18:0.875:HXINDWSH

$3.99

$

In Stock, Qty 20+

0

1

White Outdoor 683-0587

SHF ASM:LIFT

Variations

White Outdoor 683-0587-0637

SHAFT ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$
