RD-1750 (13B4516N190) - White Outdoor 42" Lawn Tractor (2003) Bagger Assembly Parts Diagram

42" Lawn Tractor

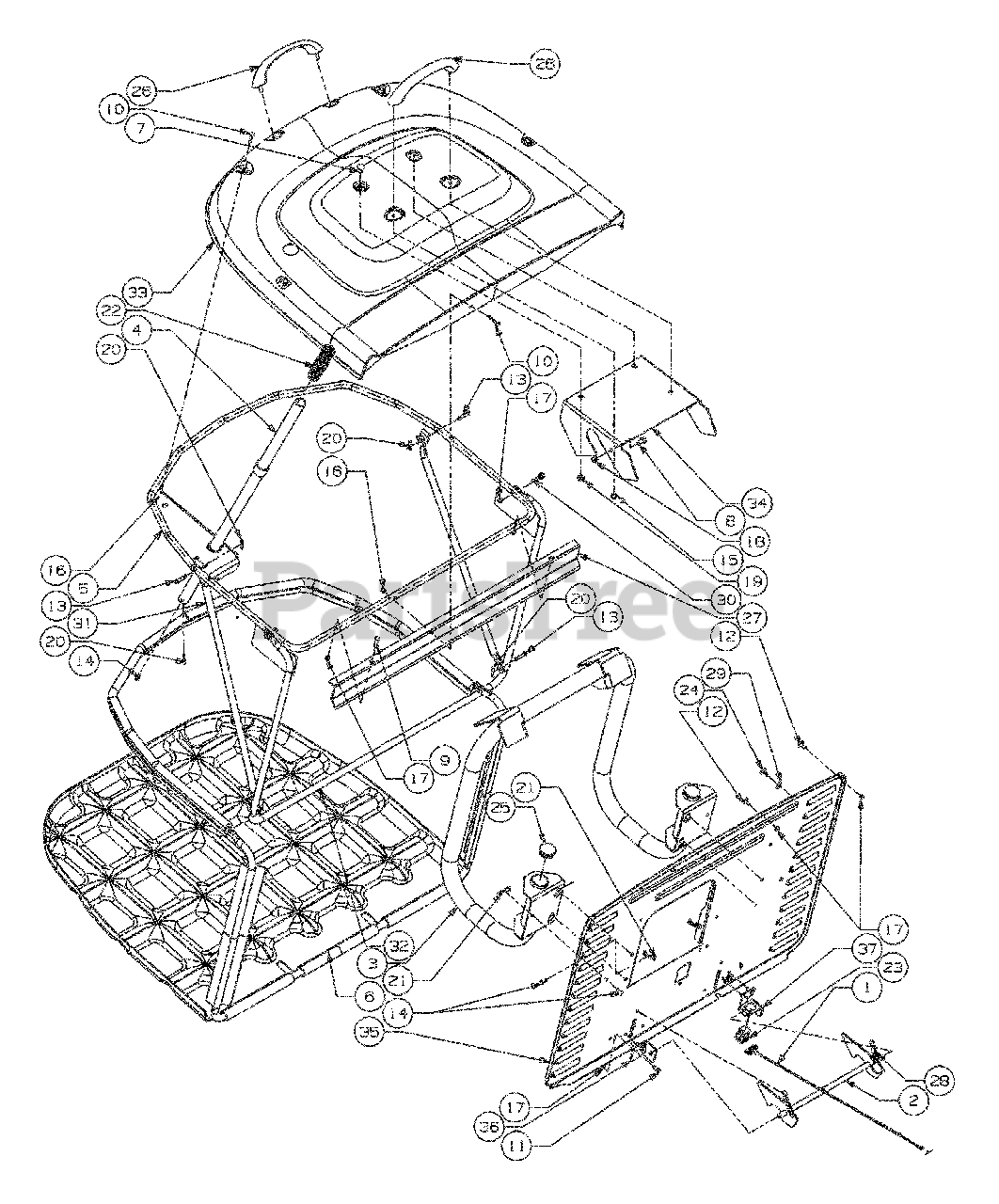

Bagger Assembly Parts Diagram

  • Title

37

White Outdoor 783-1392

BRKT:LATCH:MT:SW BAG 250L/300L

Variations

White Outdoor 783-1392-0637

BRACKET-MOUNT SWITCH - POWDER BLACK (0637)

$

$

Not available

$

$

36

White Outdoor 783-1391

BRKT:MT:LATCH BAG 250L/300L

Variations

White Outdoor 783-1391-0637

BRACKET-MOUNT LATCH - POWDER BLACK (0637)

$

$

Not available

$

$

35

White Outdoor 783-1358A

PLT:END:RR DIS:500 SERIES
(Superseded to 783-1358A-0650)

Variations

White Outdoor 783-1358A-0650

PLATE-END RD 1750 - RED METALLIC (0650)

$

$

Not available

$

$

34

783-04180

BRKT:HOOK:BAG 300L

$

$

Not available

33

783-04179

CVR:BAG:HT:300L

$

$

Not available

32

White Outdoor 749-1412

TUBE:FRM:FRT:BAG 250 L/300 L
(Superseded to 749-1412-0637)

Variations

White Outdoor 749-1412-0637

TUBE-FRAME FRT - POWDER BLACK (0637)

$

$

Not available

$

$

31

White Outdoor 749-04010

TUBE:SUPT:CROSS GRSBG 250/300
(Superseded to 749-04010-0637)

Variations

White Outdoor 749-04010-0637

TUBE-SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 738-1183

SCR:SHLDR:9.5MMX5MM:M6-1X24 LG
(Superseded to 938-1183)

$

$

Not available

29

White Outdoor 736-0463

WASH:FLAT .25 X.630 X.0515

$4.49

$

In Stock, Qty 12

0

28

White Outdoor 732-0264

EXTENSION SPRING
(Superseded to 932-0264)

$4.99

$

In Stock, Qty 20+

0

27

White Outdoor 731-2835A

EXTRS:SEAL:BAG 250L/300L
(Superseded to 931-2835A)

$

$

Not available

26

MTD 731-04174

HNDL:BAG:W/SCR 400/500 S

$33.99

$

Usually ships in 3-6 days

0

25

731-04048

CAP:TUBE:SUPT 300L/250L BAG

$

$

Not available

24

White Outdoor 726-3046

CLIP:RTCHT:.250 DIA

$3.99

$

In Stock, Qty 16

0

23

MTD 725-3167

SW:MT:SNAP NO
(Superseded to 925-3167)

$14.99

$

In Stock, only 2 left!

0

22

White Outdoor 720-0204

GRIP: 1.0 ID X 4.7 LG

$13.99

$

Usually ships in 3-6 days

0

21

White Outdoor 714-0145

PIN:CLICK:.092 X 1.64 LG

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 714-0104

PIN:COT:.072 DIA. X 1.13 LG

$4.49

$

In Stock, Qty 20+

0

19

White Outdoor 712-3004A

NUT:FLGLK:5/16-18:GR5:SD LK

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 712-0692

NUT:HEXLK:M8-1.25:NYLON DIN985

$6.99

$

In Stock, only 1 left!

0

17

MTD 712-0691

NUT:HEXLK:M6-1:NYLON DIN 985

$6.99

$

Usually ships in 3-6 days

0

16

MTD 712-0642

NUT:FLGLK:M5-0.8

$3.49

$

Usually ships in 3-6 days

0

15

White Outdoor 712-0271

NUT:HEX:1/4-20:SEMS

$4.49

$

In Stock, Qty 20+

0

14

White Outdoor 711-0701

PIN:CLV:.25X.50
(Superseded to 911-0701)

$6.99

$

In Stock, only 1 left!

0

13

White Outdoor 711-04138

PIN:CLV:.25 DIA X 1.25 LG
(Superseded to 911-04138)

$

$

Not available

12

710-1765

SCR:TORX:M6-1 X 15.00

$

$

Not available

11

White Outdoor 710-1690

SCR:M6-1:16.00 LG DIN 933

$2.99

$

Usually ships in 3-6 days

0

10

710-1612

BOLT:CRG:5MM X 30.0 LG

$

$

Not available

9

White Outdoor 710-1399

HHCS:M6-1X25:DIN 933 8.8

$2.99

$

Usually ships in 3-6 days

0

8

White Outdoor 710-1376

HHCS:M8-1.25:16.00:GR8.8:STD

$6.99

$

Usually ships in 3-6 days

0

7

White Outdoor 710-0260A

BOLT:CRG:5/16-18:.62:GR1

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 664-0110

GRSBAG ASM:RR DIS:300L 500S

$

$

Not available

5

White Outdoor 649-04008

FRM ASM:TOP:GRSBG 300L
(Superseded to 649-04008-0637)

Variations

White Outdoor 649-04008-0637

FRAME ASSY-GRASSBAG TOP - POWDER BLACK (0637)

$

$

Not available

$

$

4

White Outdoor 649-0138A

TUBE ASM:LVR:BAG 250L/300L
(Superseded to 649-0138A-0637)

Variations

White Outdoor 649-0138A-0637

TUBE ASSY-LEVER - POWDER BLACK (0637)

$

$

Not available

$

$

3

White Outdoor 649-0132

FRM ASM:PIVOT:300L BAG
(Superseded to 649-0132-0637)

Variations

White Outdoor 649-0132-0637

FRAME ASSY-PIVOT BACK - POWDER BLACK (0637)

$

$

Not available

$

$

2

White Outdoor 647-0063

LATCH ASM:BAG 250L/300L
(Superseded to 647-0063-0637)

Variations

White Outdoor 647-0063-0637

LATCH ASSY-BAG - POWDER BLACK (0637)

$

$

Not available

$

$

1

White Outdoor 629-1101A

HARN ASM:500:BAG PRESENT
(Superseded to 929-1101A)

$

$

Not available
