RC 72 (59A40063727) - Cub Cadet Yanmar Tractor 72" Rotary Cutter Gearbox Version 03 Parts Diagram

Tractor 72" Rotary Cutter

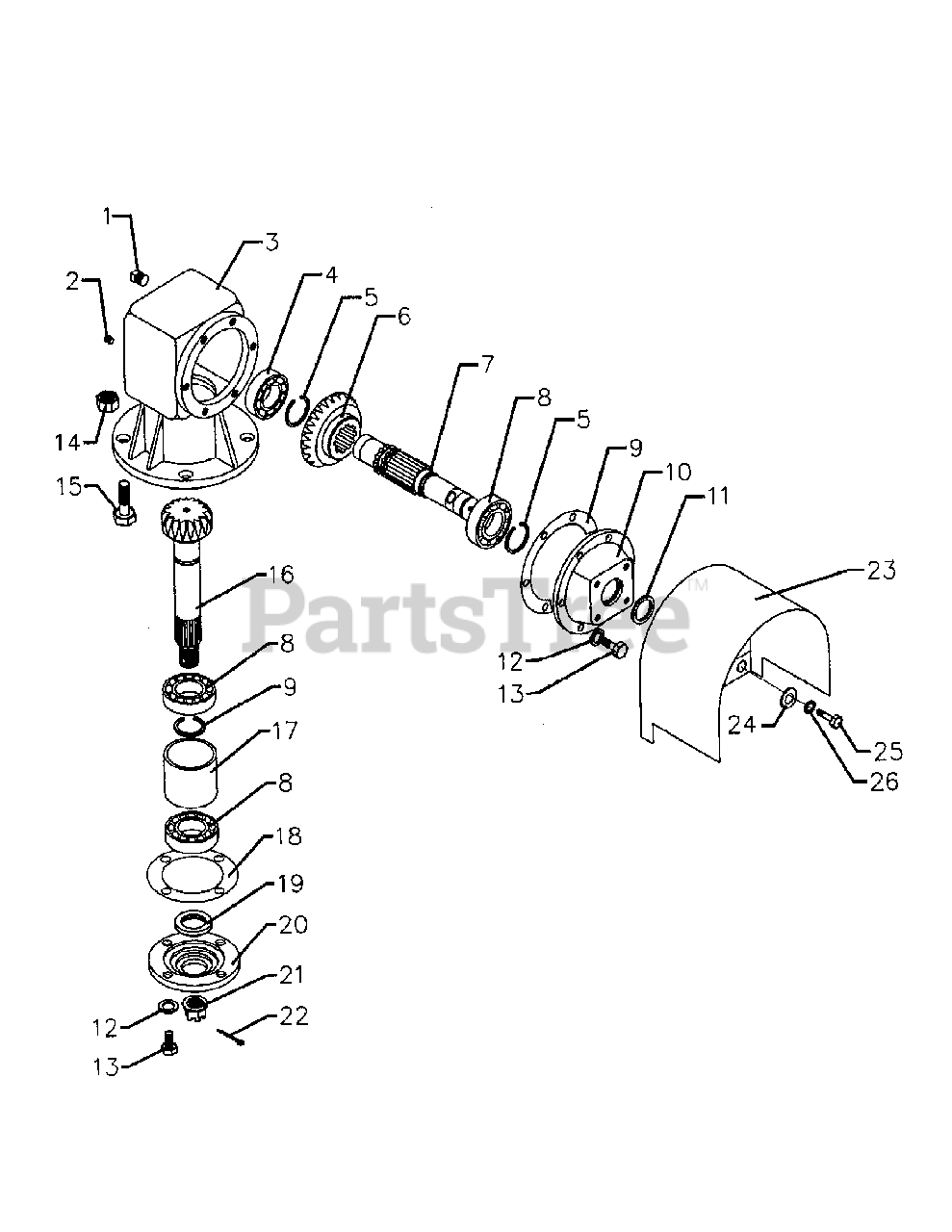

Gearbox Version 03 Parts Diagram

  • Title
1

Cub Cadet YS-502-257B

Fill plug
(Superseded to BF-502-257B)

$

$

Not available

2

Cub Cadet YS-503-428B

Check plug
(Superseded to BF-503-428B)

$

$

Not available

3

Cub Cadet YS-503-429B

Gearbox housing
(Superseded to BF-503-429B)

$

$

Not available

4

Cub Cadet YS-002-5332

Bearing 6207
(Superseded to BF-002-5332)

$

$

Not available

5

Cub Cadet YS-503-430B

Outer snap ring
(Superseded to BF-503-430B)

$

$

Not available

6

Cub Cadet YS-503-431B

Ring gear (RC60 & RC72)

$

$

Not available

7

Cub Cadet YS-503-432B

Input shaft
(Superseded to BF-503-432B)

$

$

Not available

8

Cub Cadet YS-001-2149

Bearing 6208
(Superseded to BF-001-2149)

$

$

Not available

9

Cub Cadet YS-503-433B

Shim
(Superseded to BF-503-433B)

$

$

Not available

10

Cub Cadet YS-503-434B

Gearbox cover
(Superseded to BF-503-434B)

$

$

Not available

11

Cub Cadet YS-003-0211

Oil seal
(Superseded to BF-003-0211)

$

$

Not available

12

Cub Cadet YS-000-1280

Lock washer Ø10
(Superseded to BF-000-1280)

$

$

Not available

13

Cub Cadet YS-503-837B

Cap screw 3/8"-16x1"

$

$

Not available

14

Cub Cadet YS-000-5581

Stover nut M16
(Superseded to BF-000-5581)

$

$

Not available

15

Cub Cadet YS-003-3218

Bolt M16x55
(Superseded to BF-003-3218)

$

$

Not available

16

Cub Cadet YS-503-436B

Pinion gear (RC60 & RC72)

$

$

Not available

17

Cub Cadet YS-503-437B

Spacer
(Superseded to BF-503-437B)

$

$

Not available

18

Cub Cadet YS-503-438B

Shim
(Superseded to BF-503-438B)

$

$

Not available

19

Cub Cadet YS-503-439B

Oil seal
(Superseded to BF-503-439B)

$

$

Not available

20

Cub Cadet YS-503-440B

Output cover
(Superseded to BF-503-440B)

$

$

Not available

21

Cub Cadet YS-503-441B

Castle nut
(Superseded to BF-503-441B)

$

$

Not available

22

Cub Cadet YS-502-259B

Cotter pin
(Superseded to BF-502-259B)

$

$

Not available

23

Cub Cadet YS-503-715B

Slip clutch shielding complete (on models w/slip clutch only)

$

$

Not available

24

Cub Cadet YS-001-4514

Flat washer Ø8 (on models w/slip clutch only)

$

$

Not available

25

Cub Cadet YS-001-5012

Bolt M8x20 (on models w/slip clutch only)
(Superseded to BF-001-5012)

$

$

Not available

26

Cub Cadet YS-000-3144

Lock washer Ø8 (on models w/slip clutch only)
(Superseded to BF-000-3144)

$

$

Not available

Cub Cadet YS-050-0619

Gearbox 540 rpm complete (RC60 & RC72)

Note: Not shown

$

$

Not available
