RC 72 (59A40063727) - Cub Cadet Yanmar Tractor 72" Rotary Cutter Frame Version 03 Parts Diagram

Tractor 72" Rotary Cutter

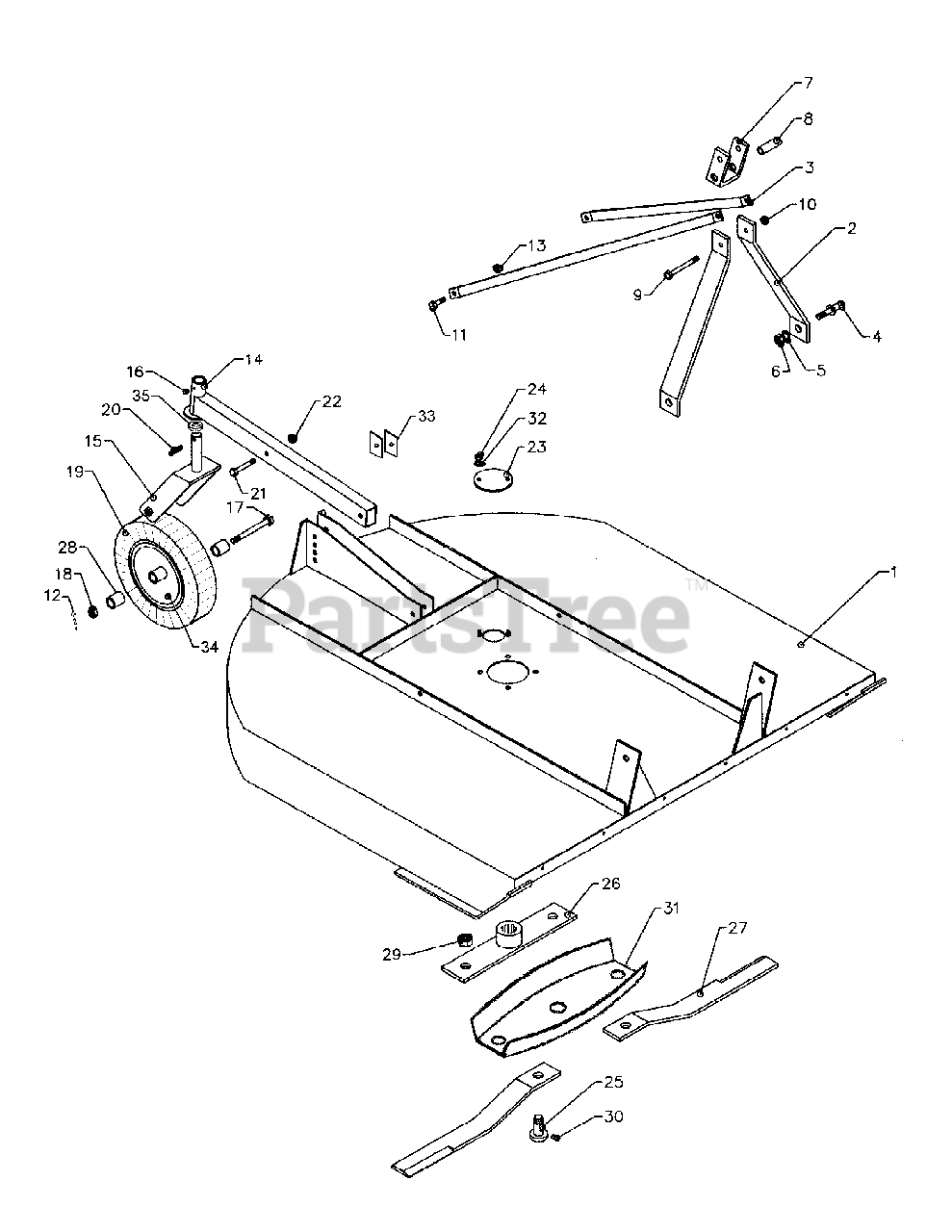

Frame Version 03 Parts Diagram

  • Title

1

Cub Cadet YS-503-804B

Frame RC60 (round back deck)

$

$

Not available

1

Cub Cadet YS-503-805B

Frame RC72 (round back deck)

$

$

Not available

2

Cub Cadet YS-005-5803

Vertical support
(Superseded to BF-005-5803)

$

$

Not available

3

Cub Cadet YS-025-5804

Horizontal support (RC60 & RC72)

$

$

Not available

4

Cub Cadet YS-502-858B

Hitch pin 7/8"x3"
(Superseded to BF-502-858B)

$

$

Not available

5

Cub Cadet YS-502-859B

Lock washer 7/8"
(Superseded to BF-502-859B)

$

$

Not available

6

Cub Cadet YS-502-860B

Hex nut 7/8"
(Superseded to BF-502-860B)

$

$

Not available

7

Cub Cadet YS-000-6828

Top hitch plate
(Superseded to BF-000-6828)

$

$

Not available

8

Cub Cadet YS-000-6829

Inner spacer
(Superseded to BF-000-6829)

$

$

Not available

9

Cub Cadet YS-190-1228

Bolt 5/8"x6.5"
(Superseded to BF-190-1228)

$

$

Not available

10

Cub Cadet YS-502-856B

Stover nut 5/8"

$

$

Not available

11

Cub Cadet YS-007-4232

Bolt M14x40
(Superseded to BF-007-4232)

$

$

Not available

12

Cub Cadet YS-502-259B

Cotter pin
(Superseded to BF-502-259B)

$

$

Not available

13

Cub Cadet YS-003-0358

Stover nut M14
(Superseded to BF-003-0358)

$6.99

$

Usually ships in 3-6 days

0

14

Cub Cadet YS-503-720B

Wheel arm (RC60 & RC72)

$

$

Not available

15

Cub Cadet YS-503-911B

Wheel yoke

$

$

Not available

16

Cub Cadet YS-000-6635

Grease fitting
(Superseded to BF-000-6635)

$

$

Not available

17

Cub Cadet YS-503-912B

Bolt M24x185

$

$

Not available

18

Cub Cadet YS-503-909B

Nut M24

$

$

Not available

19

Cub Cadet YS-503-961B

Laminated wheel complete

$

$

Not available

20

Cub Cadet YS-000-5522

Roll pin Ø10x50

$

$

Not available

21

Cub Cadet YS-000-8029

Bolt M16x90
(Superseded to BF-000-8029)

$

$

Not available

22

Cub Cadet YS-000-5581

Stover nut M16
(Superseded to BF-000-5581)

$

$

Not available

23

Cub Cadet YS-005-5826

Access plate (RC60 & RC72)
(Superseded to BF-005-5826)

$

$

Not available

24

Cub Cadet YS-001-4106

Nylock nut M10 (RC60 & RC72)
(Superseded to BF-001-4106)

$

$

Not available

25

Cub Cadet YS-000-5960

Blade bolt (RC60 & RC72)

$

$

Not available

26

Cub Cadet YS-005-5831

Rotor (RC60 & RC72)

$

$

Not available

27

Cub Cadet YS-000-5628

Blade (RC60)

$

$

Not available

27

Cub Cadet YS-000-5629

Blade (RC72)

$

$

Not available

28

Cub Cadet YS-503-913B

Wheel bushing

$

$

Not available

29

Cub Cadet YS-000-5570

Nut M27
(Superseded to BF-000-5570)

$

$

Not available

30

Cub Cadet YS-000-5635

Blade stop pin
(Superseded to BF-000-5635)

$

$

Not available

31

Cub Cadet YS-000-5965

Stump jumper (RC60 & RC72)

$

$

Not available

32

Cub Cadet YS-000-2034

Flat washer M10 (RC60 & RC72)
(Superseded to BF-000-2034)

$

$

Not available

34

Cub Cadet YS-000-020E

Grease fitting
(Superseded to BF-000-020E)

$

$

Not available

35

Cub Cadet YS-503-915B

Flat washer Ø33x56x4

$

$

Not available

Cub Cadet YS-950-109B

Decal "DANGER - Avoid injury from PTO"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-116B

Decal "DANGER - Rotating blades; Thrown objects"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-407B

Decal "WARNING - Crushing and pinching hazard"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-406B

Decal "WARNING - Falling off"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-111B

Decal "CAUTION - To avoid serious injury"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-366B

Red reflective decal

Note: Not shown

$

$

Not available

Cub Cadet YS-950-445B

Decal "Cub Cadet Yanmar" Large

Note: Not shown

$

$

Not available

Cub Cadet YS-950-460B

Decal "60 inch"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-461B

Decal "72 inch"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-457B

Decal "RC60"

Note: Not shown

$

$

Not available

Cub Cadet YS-950-470B

Decal "RC72"

Note: Not shown

$

$

Not available
