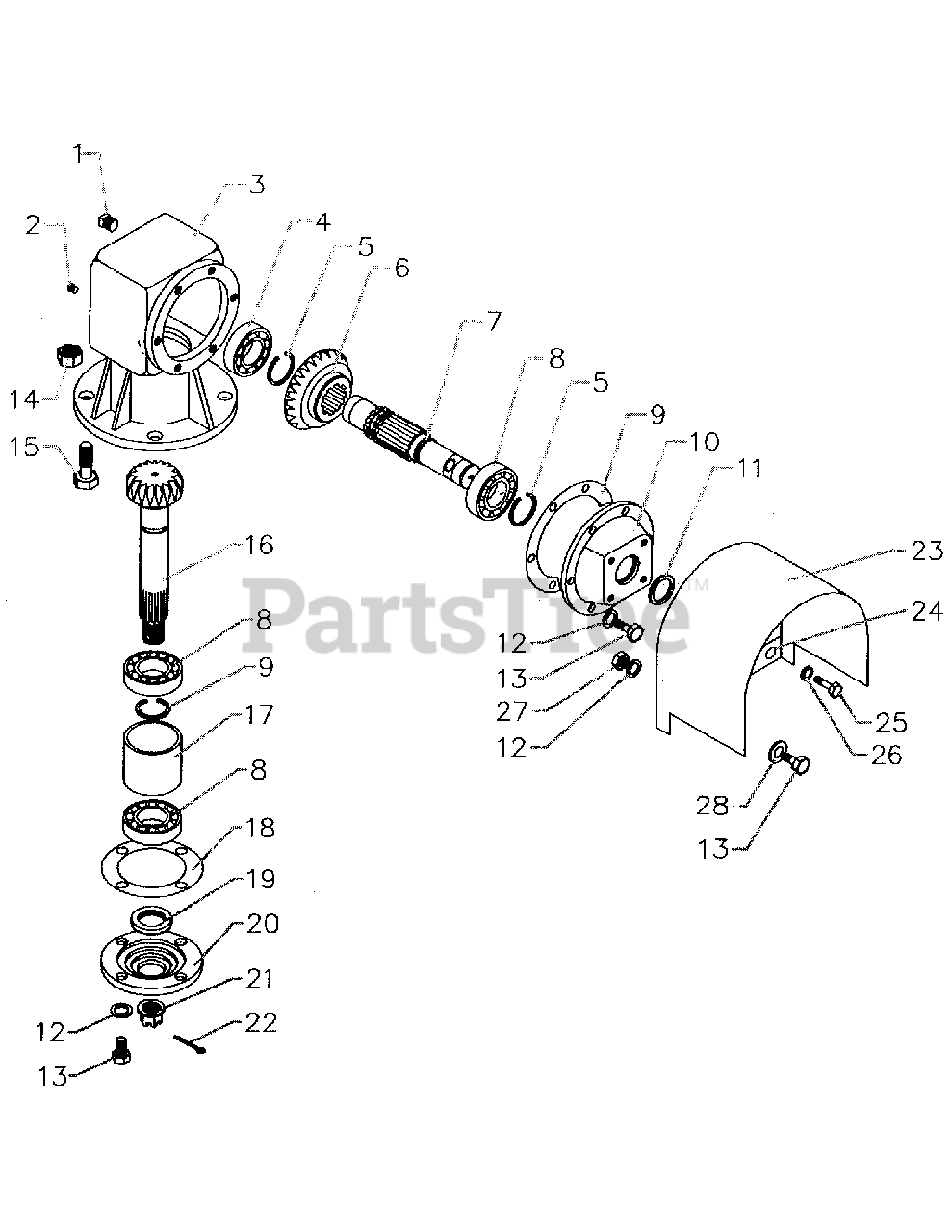

RC 60 (59A40034727) - Cub Cadet Yanmar Tractor 60" Rotary Cutter Gearbox Version 01 Parts Diagram

Tractor 60" Rotary Cutter

Gearbox Version 01 Parts Diagram

  • Title

1

Cub Cadet YS-503-427B

FILL PLUG
(Superseded to BF-503-427B)

$

$

Not available

2

Cub Cadet YS-503-428B

CHECK PLUG
(Superseded to BF-503-428B)

$

$

Not available

3

Cub Cadet YS-503-429B

GEARBOX HOUSING
(Superseded to BF-503-429B)

$

$

Not available

4

Cub Cadet YS-002-5332

BEARING 6207
(Superseded to BF-002-5332)

$

$

Not available

5

Cub Cadet YS-503-430B

SNAP RING OUTER
(Superseded to BF-503-430B)

$

$

Not available

6

Cub Cadet YS-503-659B

RING GEAR
(Superseded to BF-503-659B)

$

$

Not available

7

Cub Cadet YS-503-432B

INPUT SHAFT
(Superseded to BF-503-432B)

$

$

Not available

8

Cub Cadet YS-001-2149

BEARING 6208
(Superseded to BF-001-2149)

$

$

Not available

9

Cub Cadet YS-503-433B

SHIM
(Superseded to BF-503-433B)

Note: AS REQUIRED

$

$

Not available

10

Cub Cadet YS-503-434B

GEARBOX COVER
(Superseded to BF-503-434B)

$

$

Not available

11

Cub Cadet YS-503-435B

OIL SEAL
(Superseded to BF-503-435B)

$

$

Not available

12

Cub Cadet YS-000-1280

LOCKWASHER 10MM
(Superseded to BF-000-1280)

$

$

Not available

13

Cub Cadet YS-003-3176

BOLT 10 X 25
(Superseded to BF-003-3176)

$

$

Not available

14

Cub Cadet YS-000-5581

STOVER NUT 16MM
(Superseded to BF-000-5581)

$

$

Not available

15

Cub Cadet YS-003-3176

BOLT 16 X 55
(Superseded to BF-003-3176)

$

$

Not available

16

Cub Cadet YS-503-436B

PINION GEAR

$

$

Not available

17

Cub Cadet YS-503-437B

SPACER
(Superseded to BF-503-437B)

$

$

Not available

18

Cub Cadet YS-503-438B

SHIM
(Superseded to BF-503-438B)

Note: AS REQUIRED

$

$

Not available

19

Cub Cadet YS-503-439B

OIL SEAL
(Superseded to BF-503-439B)

$

$

Not available

20

Cub Cadet YS-503-440B

OUTPUT COVER
(Superseded to BF-503-440B)

$

$

Not available

21

Cub Cadet YS-503-441B

CASTLE NUT
(Superseded to BF-503-441B)

$

$

Not available

22

Cub Cadet YS-503-442B

COTTER PIN
(Superseded to BF-503-442B)

$

$

Not available

23

Cub Cadet YS-503-443B

SLIP CLUTCH SHIELDING
(Superseded to BF-503-443B)

$

$

Not available

24

Cub Cadet YS-503-444B

SHIELDING BRACKET
(Superseded to BF-503-444B)

$

$

Not available

24

Cub Cadet YS-503-715B

SLIP CLUTCH SHIELDING COMPLETE

$

$

Not available

25

Cub Cadet YS-004-6454

BOLT 8 X 16
(Superseded to BF-004-6454)

$

$

Not available

26

Cub Cadet YS-000-3144

LOCKWASHER 8MM
(Superseded to BF-000-3144)

$

$

Not available

27

Cub Cadet YS-000-1279

HEX NUT 10MM
(Superseded to BF-000-1279)

$

$

Not available

28

Cub Cadet YS-000-2034

FLAT WASHER 10MM
(Superseded to BF-000-2034)

$

$

Not available

Cub Cadet YS-050-0619

GEARBOX COMPLETE

Note: Not shown

$

$

Not available
