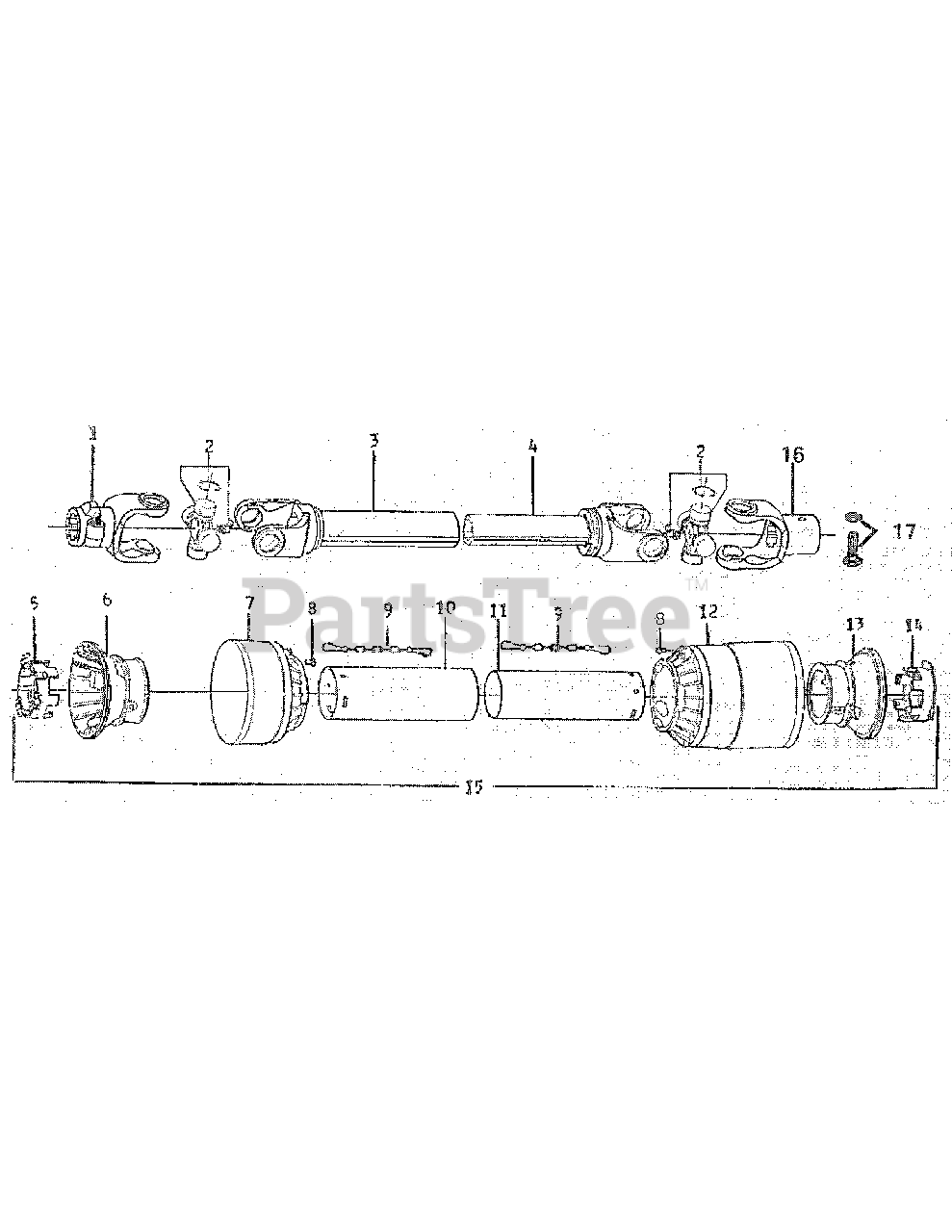

RC 60 (59A40034727) - Cub Cadet Yanmar Tractor 60" Rotary Cutter Driveline Version 01 Parts Diagram

Tractor 60" Rotary Cutter

Driveline Version 01 Parts Diagram

  • Title

1

Cub Cadet YS-024-001E

YOKE ASSEMBLY (TRACTOR END)
(Superseded to BF-024-001E)

$

$

Not available

2

Cub Cadet YS-014-130E

CROSS & BEARING
(Superseded to BF-014-130E)

$

$

Not available

3

Cub Cadet YS-1944062C

OUTER TUBE W/YOKE

$

$

Not available

4

Cub Cadet YS-1954064C

INNER TUBE W/YOKE
(Superseded to BF-1954064C)

$

$

Not available

5

Cub Cadet YS-1784210C

OUTER TUBE BEARING
(Superseded to BF-1784210C)

$

$

Not available

6

Cub Cadet YS-1784201C

OUTER TUBE RIGID CONE
(Superseded to BF-1784201C)

$26.99

$

In Stock, only 1 left!

0

7

Cub Cadet YS-1784203C

SOFT CONE
(Superseded to BF-1784203C)

$

$

Not available

8

Cub Cadet YS-1784212C

PIN
(Superseded to BF-1784212C)

$

$

Not available

9

Cub Cadet YS-016-025E

CHAIN
(Superseded to BF-016-025E)

$

$

Not available

10

Cub Cadet YS-1773060C

OUTER SHIELD

$

$

Not available

11

Cub Cadet YS-1872060C

INNER SHIELD

$

$

Not available

12

Cub Cadet YS-1784205C

SOFT CONE
(Superseded to BF-1784205C)

$

$

Not available

13

Cub Cadet YS-1784202C

INNER SHIELD RIGID CONE
(Superseded to BF-1784202C)

$

$

Not available

14

Cub Cadet YS-1784211C

INNER TUBE BEARING
(Superseded to BF-1784211C)

$

$

Not available

15

Cub Cadet YS-9054060C

COMPLETE PROTECTION

$

$

Not available

16

Cub Cadet YS-1074566C

YOKE ASSEMBLY (IMPLEMENT END)

$

$

Not available

17

Cub Cadet YS-503-314B

1/2" X 3.5" SHEARBOLT W/NUT GR2
(Superseded to BF-503-314B)

$9.49

$

Usually ships in 3-6 days

0

Cub Cadet YS-050-0455

COMPLETE DRIVELINE

Note: Not shown

$

$

Not available
