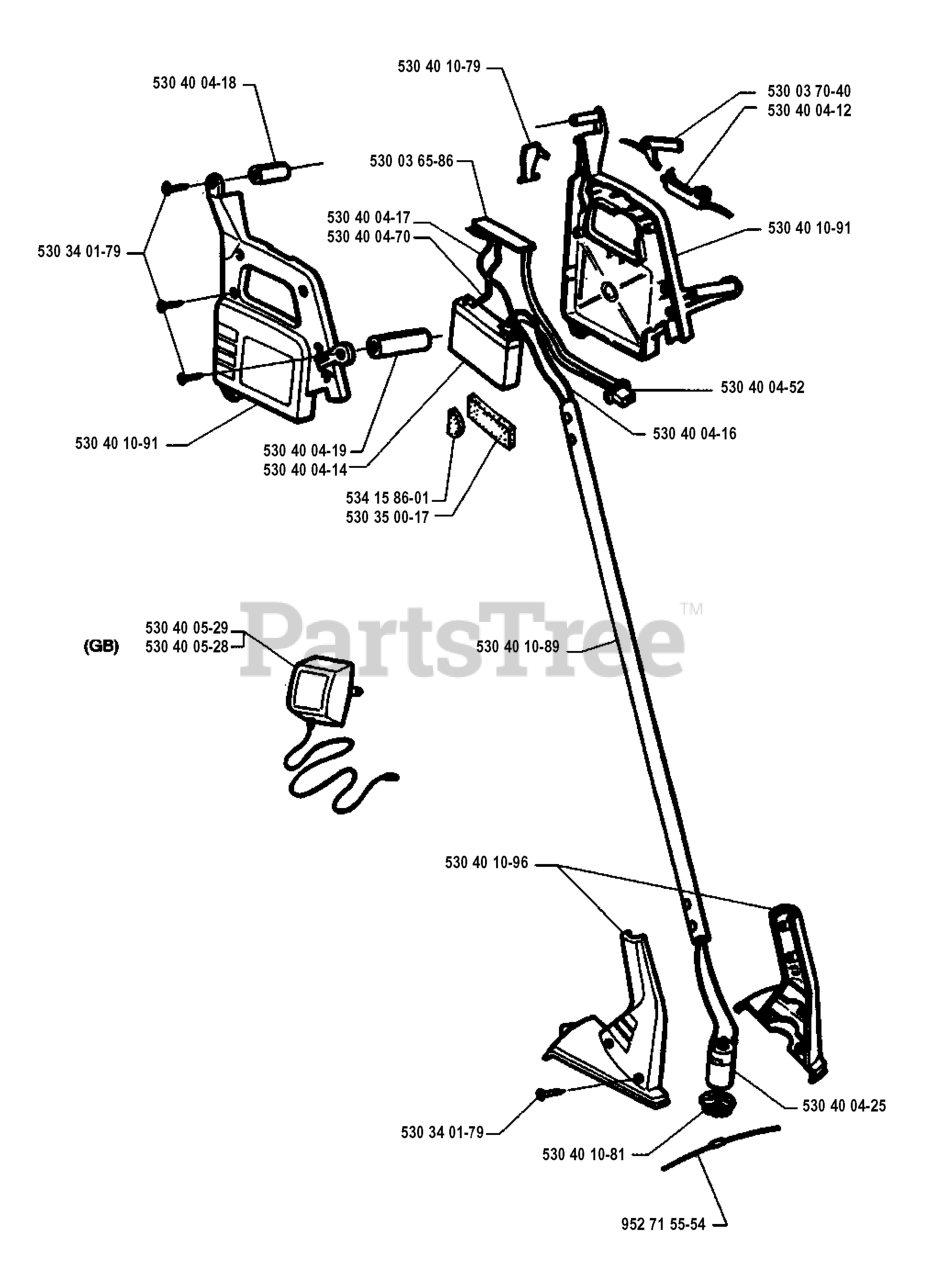

RC 6 - Husqvarna String Trimmer (Original) PRODUCT COMPLETE Parts Diagram

String Trimmer

PRODUCT COMPLETE Parts Diagram

  • Title

530 40 10-91

Husqvarna 530401091

HOUSING HOUSING. SET

$

$

Not available

530 40 05-29

Husqvarna 530400529

BATTERY CHARGER

$

$

Not available

530 40 04-14

Husqvarna 530400414

BATTERY
(Superseded to 530402816)

$

$

Not available

530 40 04-70

Husqvarna 530400470

WIRE

$

$

Not available

530 40 04-19

Husqvarna 530400419

DAMPER

$

$

Not available

530 35 00-17

Husqvarna 530350017

FOAM COUNTERWEIGHT

$0.99

$

In Stock, only 3 left!

0

530 40 04-52

Husqvarna 530400452

RECEPTICLE

$

$

Not available

530 40 10-89

Husqvarna 530401089

TUBE

$

$

Not available

530 40 04-12

Husqvarna 530400412

TRIGGER SWITCH
(Superseded to 530402856)

$3.99

$

In Stock, only 1 left!

0

530 40 05-28

Husqvarna 530400528

BATTERY CHARGER

Note: GB

$

$

Not available

952 71 55-54

Husqvarna 952715554

HUSKY ACCY LINE 7"

$8.49

$

Usually ships in 3-10 days

0

530 40 10-96

Husqvarna 530401096

HOUSING HOUSING. SET

$

$

Not available

530 34 01-79

Husqvarna 530340179

SCREW

$0.99

$

In Stock, Qty 8

0

530 03 65-86

Husqvarna 530036586

ASSY-CIRCUIT BOARD

$

$

Not available

530 03 70-40

Husqvarna 530037040

TRIGGER LOCK
(Superseded to 530402931)

$

$

Not available

530 40 04-25

Husqvarna 530400425

MOTOR

$

$

Not available

530 40 10-79

Husqvarna 530401079

DOOR

$

$

Not available

530 40 04-16

Husqvarna 530400416

WIRE

$

$

Not available

534 15 86-01

Husqvarna 534158601

PAD,FOAM 1/2-2"CTR=BAS/-2

$

$

Not available

530 40 04-17

Husqvarna 530400417

WIRE

$

$

Not available

530 40 10-81

Husqvarna 530401081

ASSY-LINE RETAINER

$1.99

$

In Stock, only 4 left!

0

530 40 04-18

Husqvarna 530400418

DAMPER

$

$

Not available
