RC 6 - Husqvarna String Trimmer (1994-04) General Assembly Parts Diagram

String Trimmer

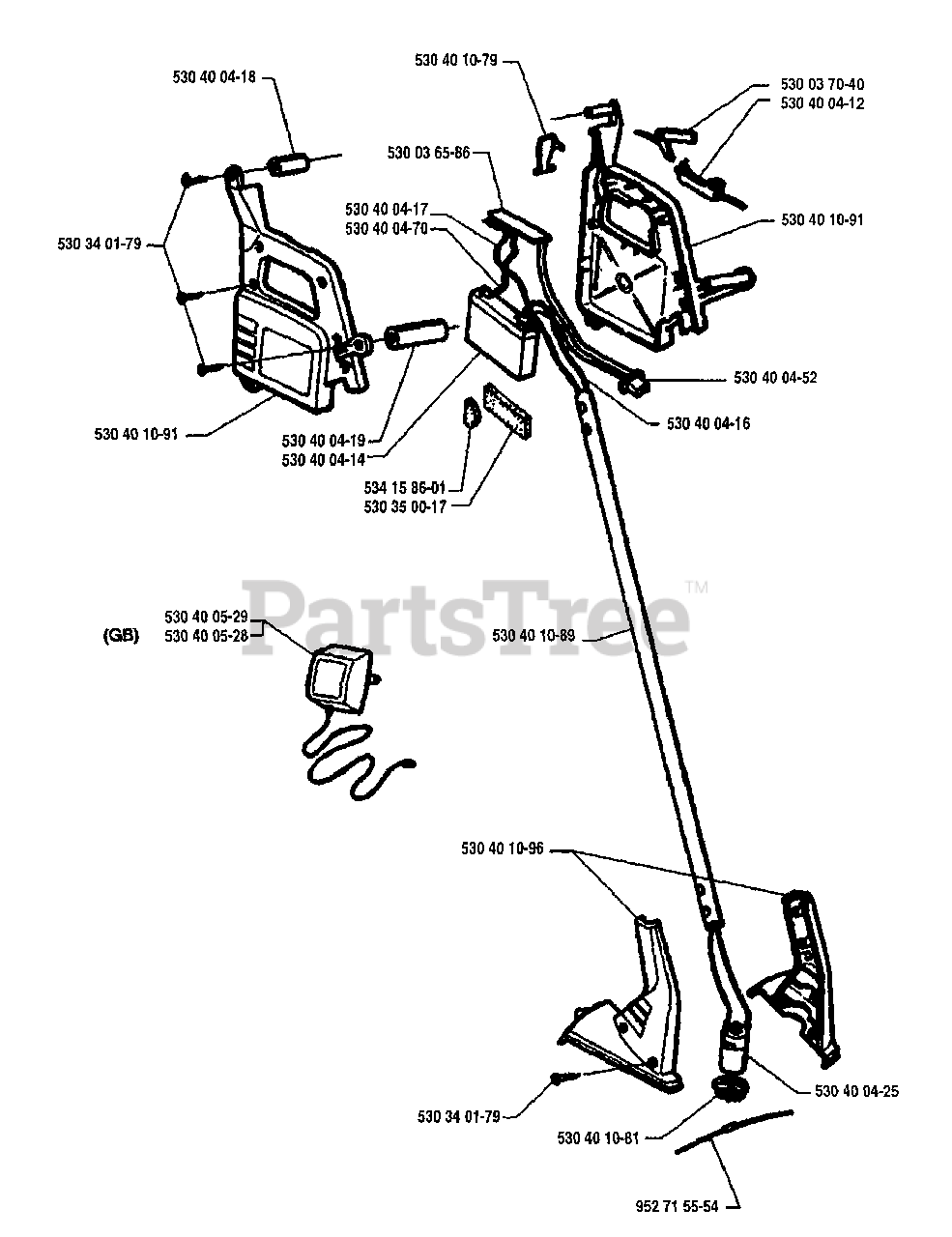

General Assembly Parts Diagram

  • Title

530400418

Husqvarna 530400418

DAMPER

$

$

Not available

530401079

Husqvarna 530401079

DOOR

$

$

Not available

530036586

Husqvarna 530036586

ASSYCIRCUIT BOARD

$

$

Not available

530400417

Husqvarna 530400417

WIRE

$

$

Not available

530400470

Husqvarna 530400470

WIRE

$

$

Not available

530340179

Husqvarna 530340179

Screw

$0.99

$

In Stock, Qty 8

0

530401091

Husqvarna 530401091

HOUSING HOUSING. SET

$

$

Not available

530400419

Husqvarna 530400419

DAMPER

$

$

Not available

530400414

Husqvarna 530400414

BATTERY
(Superseded to 530402816)

$

$

Not available

530350017

Husqvarna 530350017

FOAM COUNTERWEIGHT

$0.99

$

In Stock, only 3 left!

0

530400529

Husqvarna 530400529

BATTERY CHARGER

$

$

Not available

534158601

Husqvarna 534158601

PAD,FOAM 1/2-2"CTR=BAS/-2

$

$

Not available

530037040

Husqvarna 530037040

TRIGGER LOCK
(Superseded to 530402931)

$

$

Not available

530400412

Husqvarna 530400412

TRIGGER SWITCH
(Superseded to 530402856)

$3.99

$

In Stock, only 1 left!

0

530401091

Husqvarna 530401091

HOUSING HOUSING. SET

$

$

Not available

530400452

Husqvarna 530400452

RECEPTICLE

$

$

Not available

530400416

Husqvarna 530400416

WIRE

$

$

Not available

530401089

Husqvarna 530401089

TUBE

$

$

Not available

530401096

Husqvarna 530401096

HOUSING HOUSING. SET

$

$

Not available

530340179

Husqvarna 530340179

Screw

$0.99

$

In Stock, Qty 8

0

530400425

Husqvarna 530400425

Motor

$

$

Not available

530401081

Husqvarna 530401081

ASSY-LINE RETAINER

$1.99

$

In Stock, only 4 left!

0

952715554

Husqvarna 952715554

HUSKY ACCY LINE 7"

$8.49

$

Usually ships in 3-10 days

0

530400528

Husqvarna 530400528

BATTERY CHARGER

$

$

Not available
