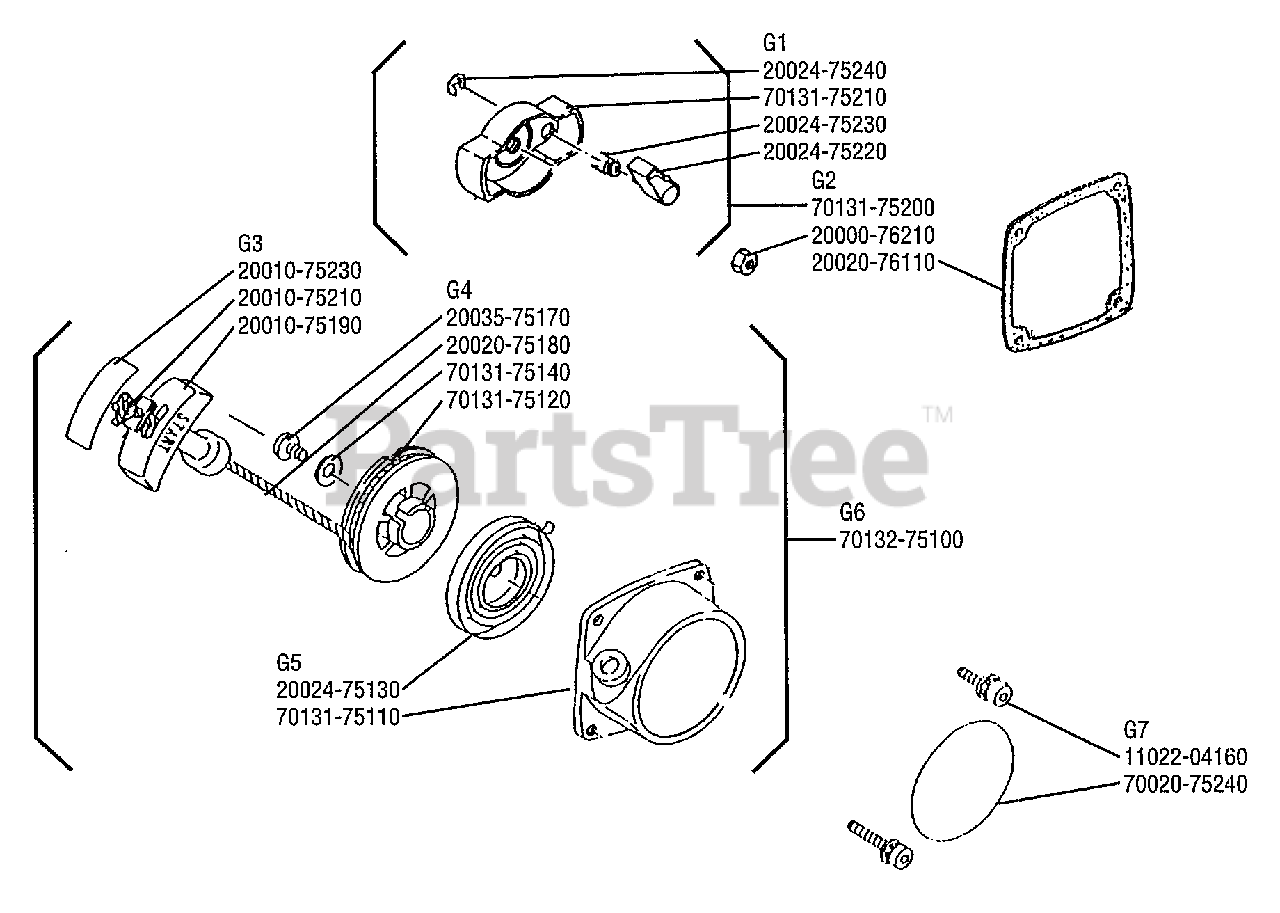

RC 45 - Shindaiwa String Trimmer / Brush Cutter Starter Parts Diagram

String Trimmer / Brush Cutter

Starter Parts Diagram

  • Title

G1-20024-75240

Echo 20024-75240

E-RING
(Superseded to V583000140)

$0.99

$

In Stock, Qty 6

0

G1-70131-75210

Echo 70131-75210

$

$

Currently unavailable

G1-20024-75230

Echo 20024-75230

SPRING, RETURN
(Superseded to V452000520)

$3.49

$

In Stock, only 2 left!

0

G1-20024-75220

Echo 20024-75220

RATCHET
(Superseded to A514000080)

$3.49

$

In Stock, Qty 8

0

G2-70131-75200

Echo 70131-75200

PULLEY ASSY
(Superseded to A052000370)

$13.99

$

In Stock, only 2 left!

0

G2-20000-76210

Echo 20000-76210

NUT
(Superseded to V265000170)

$0.99

$

Usually ships in 2-4 days

0

G2-20020-76110

Echo 20020-76110

GASKET, STARTER
(Superseded to 20020-76111)

$1.99

$

In Stock, Qty 7

0

G4-20035-75170

Echo 20035-75170

SCREW
(Superseded to V253000560)

$3.99

$

In Stock, Qty 14

0

G4-20020-75180

Echo 20020-75180

ROPE
(Superseded to A509000190)

$8.49

$

Usually ships in 2-4 days

0

G4-70131-75140

Echo 70131-75140

WASHER
(Superseded to V303000190)

$1.49

$

Usually ships in 2-4 days

0

G4-70131-75120

Echo 70131-75120

REEL
(Superseded to A506000150)

$15.99

$

Usually ships in 2-4 days

0

G3-20010-75230

Echo 20010-75230

KNOB TAPE
(Superseded to X707000050)

$1.99

$

Usually ships in 2-4 days

0

G3-20010-75210

Echo 20010-75210

STOPPER
(Superseded to A522000040)

$2.49

$

In Stock, Qty 7

0

G3-20010-75190

Echo 20010-75190

KNOB, STARTER
(Superseded to A511000160)

$5.99

$

In Stock, Qty 20+

0

G5-20024-75130

Echo 20024-75130

RECOIL SPRING
(Superseded to A504000060)

$14.99

$

In Stock, Qty 12

0

G5-70131-75110

Echo 70131-75110

STARTER CASE
(Superseded to A500000840)

$32.99

$

Usually ships in 2-4 days

0

G7-11022-04160

Echo 11022-04160

BOLT
(Superseded to V202000580)

$0.99

$

In Stock, Qty 6

0

G7-70020-75240

Echo 70020-75240

NAME PLATE

$4.49

$

Usually ships in 2-4 days

0

G6-70132-75100

Echo 70132-75100

STARTER
(Superseded to Discontinued)

$

$

Not available
