RC 45 - Shindaiwa String Trimmer / Brush Cutter Outer Shaft Parts Diagram

String Trimmer / Brush Cutter

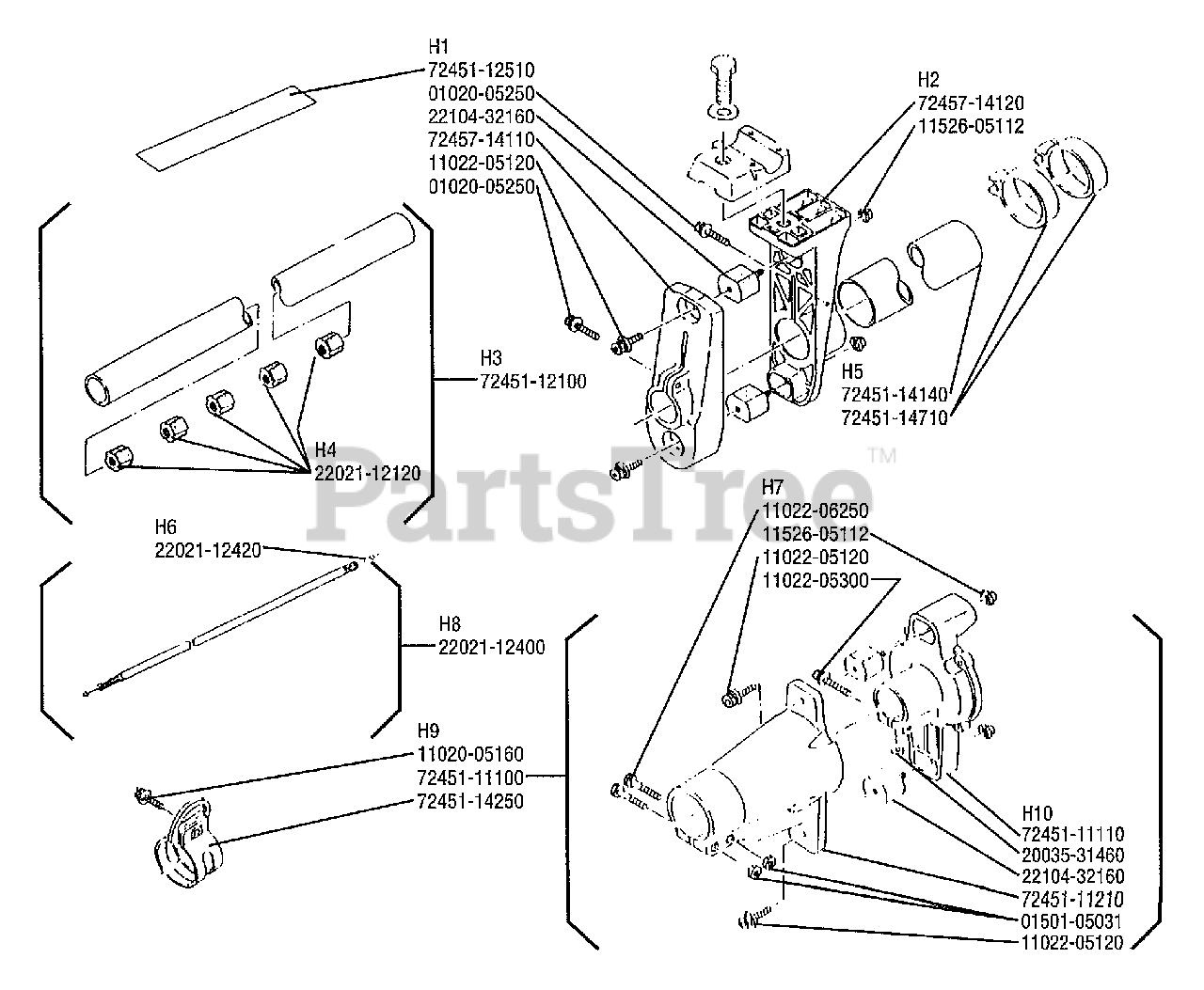

Outer Shaft Parts Diagram

  • Title
H1-72451-12510

Echo 72451-12510

LABEL, NAME PLATE
(Superseded to Discontinued)

$

$

Not available

H1-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

H1-22104-32160

Echo 22104-32160

CUSHION 22A

$5.49

$

Usually ships in 2-4 days

0

H1-72457-14110

Echo 72457-14110

BRACKET
(Superseded to Discontinued)

$

$

Not available

H1-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

H1-01020-05250

Echo 01020-05250

BOLT
(Superseded to 90010505025)

$1.49

$

In Stock, Qty 20+

0

H3-72451-12100

Echo 72451-12100

OUTER TUBE COMPLETE
(Superseded to Discontinued)

$

$

Not available

H4-22021-12120

Echo 22021-12120

BUSHING
(Superseded to C501000080)

$5.49

$

Usually ships in 2-4 days

0

H2-72457-14120

Echo 72457-14120

BRACKET
(Superseded to Discontinued)

$

$

Not available

H2-11526-05112

Echo 11526-05112

NUT, FLANGE
(Superseded to V263000340)

$0.99

$

Usually ships in 2-4 days

0

H5-72451-14140

Echo 72451-14140

PIPE
(Superseded to Discontinued)

$

$

Not available

H5-72451-14710

Echo 72451-14710

CABLE HOLDER
(Superseded to Discontinued)

$

$

Not available

H7-11022-06250

Echo 11022-06250

BOLT SPW
(Superseded to V204001210)

$1.99

$

Usually ships in 2-4 days

0

H7-11526-05112

Echo 11526-05112

NUT, FLANGE
(Superseded to V263000340)

$0.99

$

Usually ships in 2-4 days

0

H7-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

H7-11022-05300

Echo 11022-05305

BOLT M5X30
(Superseded to V203000480)

$3.99

$

In Stock, Qty 5

0

H10-72451-11110

Echo 72451-11110

JOINT BASE
(Superseded to 72451-11111)

$

$

Not available

H10-20035-31460

Echo 20035-31460

SHIM
(Superseded to V340000250)

$0.99

$

Usually ships in 2-4 days

0

H10-22104-32160

Echo 22104-32160

CUSHION 22A

$5.49

$

Usually ships in 2-4 days

0

H10-72451-11210

Echo 72451-11210

COVER, JOINT
(Superseded to Discontinued)

$

$

Not available

H10-01501-05031

Echo 01501-05031

NUT
(Superseded to 90050200005)

$0.99

$

In Stock, Qty 13

0

H10-11022-05120

Echo 11022-05120

BOLT SPW
(Superseded to V203000700)

$0.99

$

In Stock, Qty 20+

0

H9-11020-05160

Echo 11020-05160

BOLT SW
(Superseded to V203000720)

$0.99

$

In Stock, Qty 20+

0

H9-72451-11100

Echo 72451-11100

JOINT BASE ASSY
(Superseded to Discontinued)

$

$

Not available

$

$

Currently unavailable

H8-22021-12400

Echo 22021-12400

SHAFT, MAIN
(Superseded to C504000720)

$92.99

$

In Stock, only 1 left!

0

H6-22021-12420

Echo 22021-12420

STOPPER
(Superseded to V585000040)

$0.99

$

Usually ships in 2-4 days

0
