RC 45 - Shindaiwa String Trimmer / Brush Cutter Fuel Tank Parts Diagram

String Trimmer / Brush Cutter

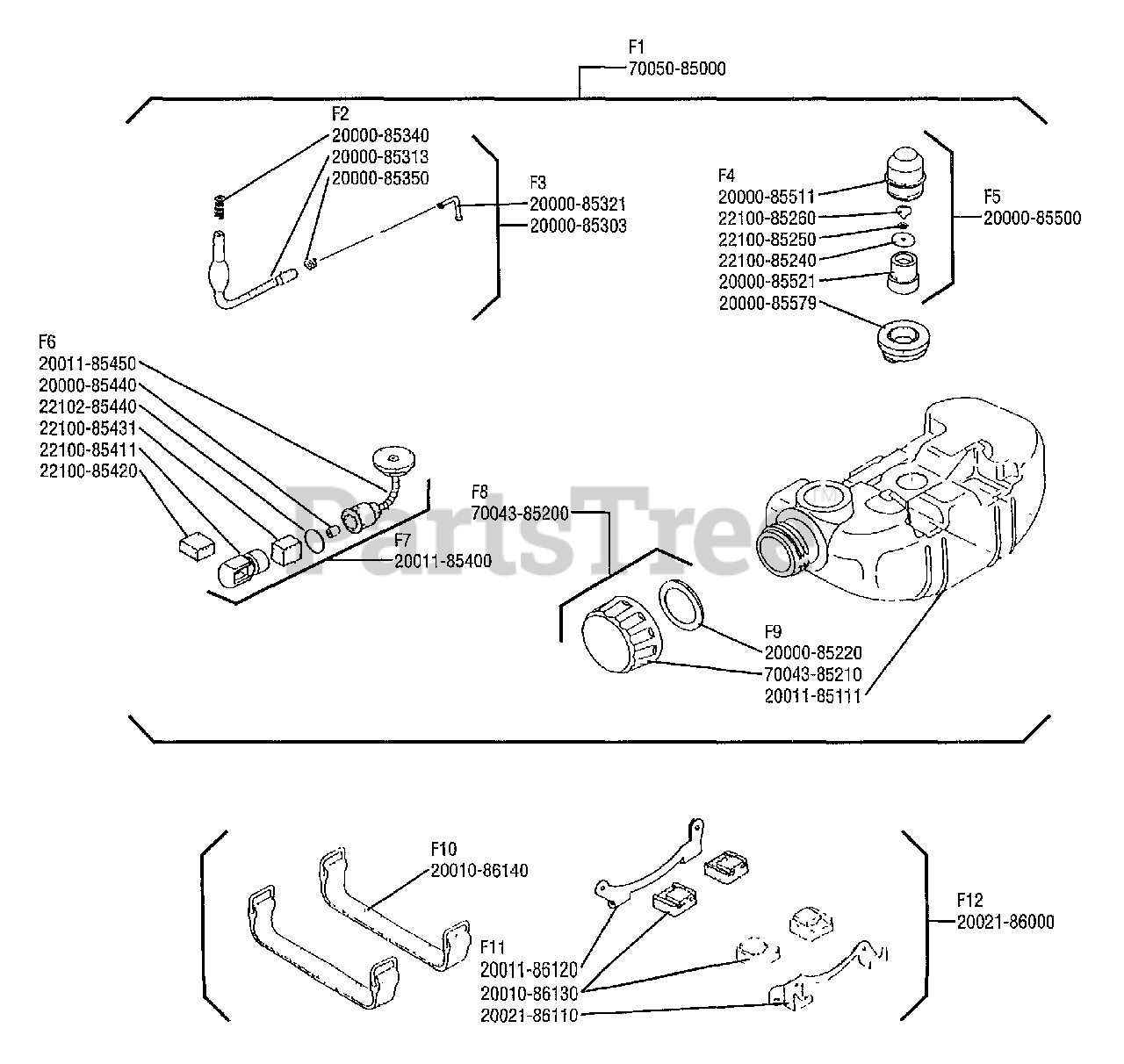

Fuel Tank Parts Diagram

  • Title

F1-70050-85000

Echo 70050-85000

FUEL TANK ASSY
(Superseded to 70050-85002)

$

$

Not available

F2-20000-85340

Echo 20000-85340

CLAMP A
(Superseded to V451000850)

$0.99

$

Usually ships in 2-4 days

0

F2-20000-85313

Echo 20000-85313

PIPE
(Superseded to V470001080)

$13.99

$

In Stock, Qty 13

0

F2-20000-85350

Echo 20000-85350

CLAMP B
(Superseded to V490000610)

$0.99

$

In Stock, Qty 12

0

F3-20000-85321

Echo 20000-85321

TUBE, CONNECTOR
(Superseded to V186000220)

$1.99

$

In Stock, Qty 12

0

F3-20000-85303

Echo 20000-85303

FUEL TUBE ASSY
(Superseded to P021017770)

$11.99

$

In Stock, only 1 left!

0

F4-20000-85511

Echo 20000-85511

BREATHER CAP
(Superseded to A362000000)

$1.99

$

Usually ships in 2-4 days

0

F4-22100-85260

Echo 22100-85260

VALVE, FUEL
(Superseded to A356000090)

$4.99

$

In Stock, only 4 left!

0

F4-22100-85250

Echo 22100-85250

WASHER
(Superseded to V303000170)

$0.99

$

Usually ships in 2-4 days

0

F4-22100-85240

Echo 22100-85240

RETAINER, FUEL
(Superseded to A359000010)

$0.99

$

Usually ships in 2-4 days

0

F4-20000-85521

Echo 20000-85521

VALVE HOLDER
(Superseded to A358000030)

$1.99

$

Usually ships in 2-4 days

0

F4-20000-85579

Echo 20000-85579

BREATHER GROMMET
(Superseded to V138000020)

$19.99

$

In Stock, Qty 16

0

F8-70043-85200

Echo 70043-85200

FUEL CAP ASSY, USE 70043-85201
(Superseded to 70043-85201)

$3.99

$

In Stock, Qty 12

0

F7-20011-85400

Echo 20011-85400

FUEL FILTER ASSY
(Superseded to 20011-85401)

$21.99

$

In Stock, only 1 left!

0

F6-20011-85450

Echo 20011-85450

SUCTION PIPE
(Superseded to 20011-85451)

$10.99

$

In Stock, Qty 6

0

F6-20000-85440

Echo 20000-85440

CHECK VALVE
(Superseded to A356000080)

$7.49

$

In Stock, only 4 left!

0

F6-22102-85440

Echo 22102-85440

CLIP, FILTER
(Superseded to V490000590)

$0.99

$

In Stock, Qty 20+

0

F6-22100-85431

Echo 22100-85431

FILTER B
(Superseded to A368000030)

$0.99

$

In Stock, Qty 9

0

F6-22100-85411

Echo 22100-85411

WEIGHT, FUEL
(Superseded to A369000030)

$3.49

$

In Stock, only 2 left!

0

F6-22100-85420

Echo 22100-85420

FILTER A
(Superseded to A368000020)

$1.99

$

In Stock, Qty 8

0

F5-20000-85500

Echo 20000-85500

BREATHER ASSY
(Superseded to A039000020)

$8.99

$

In Stock, only 1 left!

0

F9-20000-85220

Echo 20000-85220

GASKET, FUEL
(Superseded to 20000-85221)

$1.99

$

In Stock, Qty 20+

0

F9-70043-85210

Echo 70043-85210

FUEL CAP, USE 70168-85210
(Superseded to 70168-85210)

$7.49

$

In Stock, only 1 left!

0

F9-20011-85111

Echo 20011-85111

FUEL TANK
(Superseded to 20011-85112)

$21.99

$

Usually ships in 2-4 days

0

F12-20021-86000

Echo 20021-86000

$

$

Currently unavailable

F10-20010-86140

Echo 20010-86140

BAND
(Superseded to A392000070)

$5.49

$

In Stock, only 4 left!

0

F11-20011-86120

Echo 20011-86120

BRACKET M
(Superseded to A393000190)

$2.49

$

Usually ships in 2-4 days

0

F11-20010-86130

Echo 20010-86130

CUSHION
(Superseded to V420002390)

$0.99

$

In Stock, Qty 6

0

F11-20021-86110

Echo 20021-86110

BRACKET S
(Superseded to A393000180)

$3.49

$

Usually ships in 2-4 days

0
