RC 306 (22ACDDAE037) - MTD RoboMow Robotic Mower (2018) General Assembly Parts Diagram

RoboMow Robotic Mower

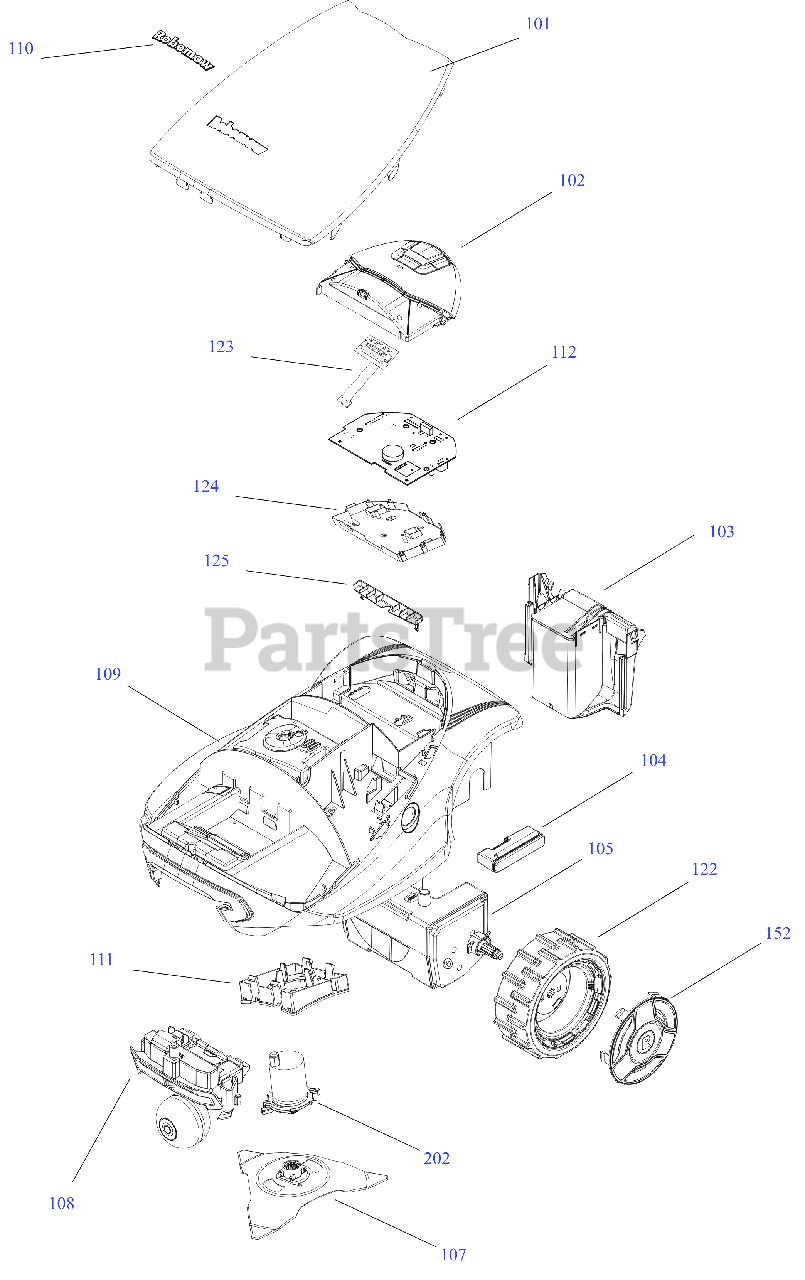

General Assembly Parts Diagram

  • Title

102

MTD FR-SMSB7008A

RC PANEL ASSEMBLY W/O LCD DISPLAY

$70.99

$

Usually ships in 3-6 days

0

103

MTD FR-MRK7005A

BATTERY (RC/TC/MC)

$426.99

$

Usually ships in 3-6 days

0

105

MTD FR-SPP7012A

GEAR CASE ASSEMBLY

$230.99

$

Usually ships in 3-6 days

0

111

MTD FR-INJ7011A

MOWING DECK FLANGE

$37.99

$

Usually ships in 3-6 days

0

117

MTD FR-GEN7016A

FASTENING STAKES FOR BASE STATION
(Superseded to FRPGEN7016A)

$17.99

$

Usually ships in 3-6 days

0

119

MTD FR-WSB7011A

15M EXTENSION CABLE
(Superseded to FR-WSB7011B)

$49.99

$

Usually ships in 3-6 days

0

121

MTD FR-WSB7006C

RC MOW MOTOR CABLE BRUSH

$48.99

$

Usually ships in 3-6 days

0

123

MTD FR-SESB7001A

RC LCD ASSEMBLY

$46.99

$

Usually ships in 3-6 days

0

124

MTD FR-INJ7156A

C MAIN BOARD MULCH PROTECTOR

$17.99

$

Usually ships in 3-6 days

0

125

MTD FR-INJ7157A

RC DRAIN PROTECTOR

$7.99

$

Usually ships in 3-6 days

0

126

MTD FR-INJ7164A

RC SHELTER LEG RIGHT

$

$

Not available

127

MTD FR-INJ7161A-13

RC SHELTER DOOR

$

$

Not available

128

MTD FR-INJ7163A-13

RC SHELTER LEG RIGHT

$

$

Not available

129

MTD FR-INJ7162A-13

RCSHELTER LEG LEFT

$

$

Not available

130

MTD FR-SPP7206A

BASE STATION BOARD WITH BLE

$101.99

$

Usually ships in 3-6 days

0

133

MTD FR-STC6036W

ALARM STICKER

$16.99

$

Usually ships in 3-6 days

0

134

MTD FR-WSB7001G

RC FRONT CABLE

$75.99

$

Usually ships in 3-6 days

0

135

MTD FR-WSB7007E

RC MOW MOTOR CABLE BL

$53.99

$

Usually ships in 3-6 days

0

137

MTD FR-WSB0101C

USB2RS232 UP TO WIN8

$137.99

$

Usually ships in 3-6 days

0

138

MTD FR-TOL0006B

BLADE REMOVAL TOOL

$24.99

$

Usually ships in 3-6 days

0

139

MTD FR-CON0054A

PLOT CONNECTOR

$

$

Not available

140

MTD FR-DOC7010B

ROBORULER FOR RC/TC/MC

$17.99

$

Usually ships in 3-6 days

0

152

MTD FR-INJ7155A

RC PREMIUM TAS

$9.49

$

Usually ships in 3-6 days

0

154

MTD FR-MRK0012A

PEGS-PACK OF 50

$33.99

$

Usually ships in 3-6 days

0

155

MTD FR-MRK0040A

PERIMETER WIRE

$74.99

$

Usually ships in 3-6 days

0

203

MTD FR-SPP6100A

POWER BOX HANGING
(Superseded to FR-GEN6034B)

$25.99

$

Usually ships in 3-6 days

0

204

MTD FR-SCR6000A

SCREW + "DIBEL" X 2 KIT

$5.99

$

Usually ships in 3-6 days

0

207

MTD FR-CON0144G

MINI JUMPER 2.54MM

$

$

Not available

208

MTD FR-GEN0175A

STAKE-PERIMETER SW

$6.49

$

Usually ships in 3-6 days

0

210

MTD FR-UNT5007C

PERIMETER SWITCH (ESB5009F)

$

$

Not available

211

MTD FR-MRK5006A

BATTERY PACK-PERIM

$150.99

$

Usually ships in 3-6 days

0

212

MTD FR-GEN0176A

PERIMETER SWITCH B

$

$

Not available

213

MTD FR-STC5009B

PERIMETER SWITCH STICKER

$12.99

$

Usually ships in 3-6 days

0

214

MTD FR-SPP7013A

MOWING MOTOR ASSEMBLY (BRUSH)

$147.99

$

Usually ships in 3-6 days

0

MTD FR-ESB7003F1

RC FRONT BOARD

Note: (Not Shown)

$96.99

$

Usually ships in 3-6 days

0

MTD FR-MRK7101A

SHORT PEGS (PKG OF 50)

Note: (Not Shown)

$15.99

$

Usually ships in 3-6 days

0

MTD FR-MSB7005B

RC FRONT WHEEL ASSEMBLY

Note: (Not Shown)

$61.99

$

Usually ships in 3-6 days

0

MTD FR-SCR6009A

EJOT WN 1452 K30 L

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SCR7003B

M6 SCREW DIN 16 912 12.9

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

MTD FR-SCR7006A

M4X10 PHILLIPS HEAD SCREW

Note: (Not Shown)

$4.99

$

Usually ships in 3-6 days

0

MTD FR-SPP7021A

POWER WHEEL C W/O PLATE

Note: (Not Shown)

$56.99

$

Usually ships in 3-6 days

0

MTD FR-SPP7023A

BASE STATION (2018)

Note: (Not Shown)

$282.99

$

Usually ships in 3-6 days

0

MTD FR-SPP7027A

WASHER FOR RC FRONT WHEELS (10PCS)

Note: (Not Shown)

$14.99

$

Usually ships in 3-6 days

0

MTD FR-SPP7216A

MAIN BOARD (2018)

Note: (Not Shown)

$354.99

$

Usually ships in 3-6 days

0
