RC 1236 A - Electrolux/AYP Lawn Tractor (1991) FENDER/CHASSIS Parts Diagram

Lawn Tractor

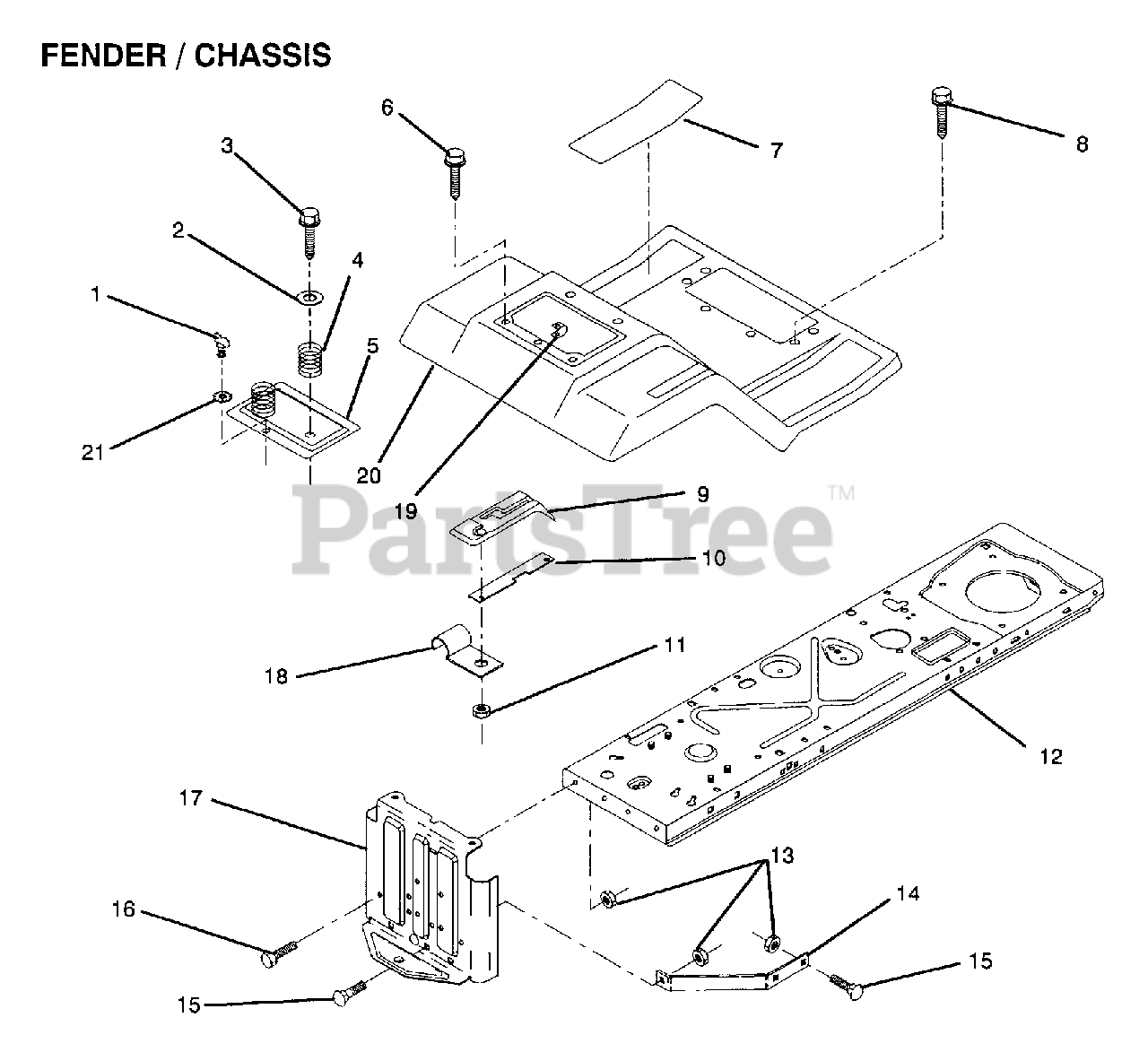

FENDER/CHASSIS Parts Diagram

  • Title
1

Electrolux/AYP 123650X

STUD.1/4.TURN
(Superseded to 532123650)

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 19132012

WASHER
(Superseded to 819132012)

$1.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 17490612

SCREW
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 124181X

SPRING COMPRESSIO
(Superseded to 587613301)

$6.99

$

In Stock, only 3 left!

0

$

$

Not available

6

Electrolux/AYP 17490508

SCREW LT
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 124144X

PAD FOOTREST
(Superseded to 134214)

$

$

Not available

8

Electrolux/AYP 17490512

SCREW
(Superseded to 583607701)

$7.49

$

In Stock, only 2 left!

0

9

Electrolux/AYP 126995X

SUB= 126995X428
(Superseded to 532166635)

$

$

Not available

10

Electrolux/AYP 124307X

"SHIFT LOCK, BAR"
(Superseded to 532124307)

$2.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 124346X

NUT
(Superseded to 532124346)

$7.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 123645X

FRAME ASS'Y
(Superseded to 532123645)

$

$

Not available

13

Murray 73680500

SUB= 73690500
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 123379X

"BRACE,DRAWBAR "
(Superseded to 532123379)

$

$

Not available

15

Electrolux/AYP 72140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

16

Electrolux/AYP 74760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 121904X

DRAWBAR
(Superseded to 532121904)

$

$

Not available

18

Electrolux/AYP 126470X

"CLIP,INSULATOR"
(Superseded to 532126470)

$3.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 105839X

RECEPTACLE LT
(Superseded to 532105839)

$3.99

$

In Stock, only 1 left!

0

20

Electrolux/AYP 124332X423

"FENDER,FOOTREST T"

$

$

Not available

21

Electrolux/AYP 105838X

RETAINER LT
(Superseded to 532105838)

$6.49

$

Usually ships in 3-10 days

0

Electrolux/AYP 120822X

DECAL
(Superseded to 532120822)

$

$

Not available

$

$

Not available

Electrolux/AYP 127037

"DECAL,FENDER"

$

$

Not available

Electrolux/AYP 123408X

DECAL DRIVE
(Superseded to 532123408)

$

$

Not available

Electrolux/AYP 121549X

DECAL
(Superseded to 532121549)

$

$

Not available
