RB-850 (215-418-190) - White Outdoor Roto Boss Tiller (1985) Engine, Wheels & Front Frame Parts Diagram

Roto Boss Tiller

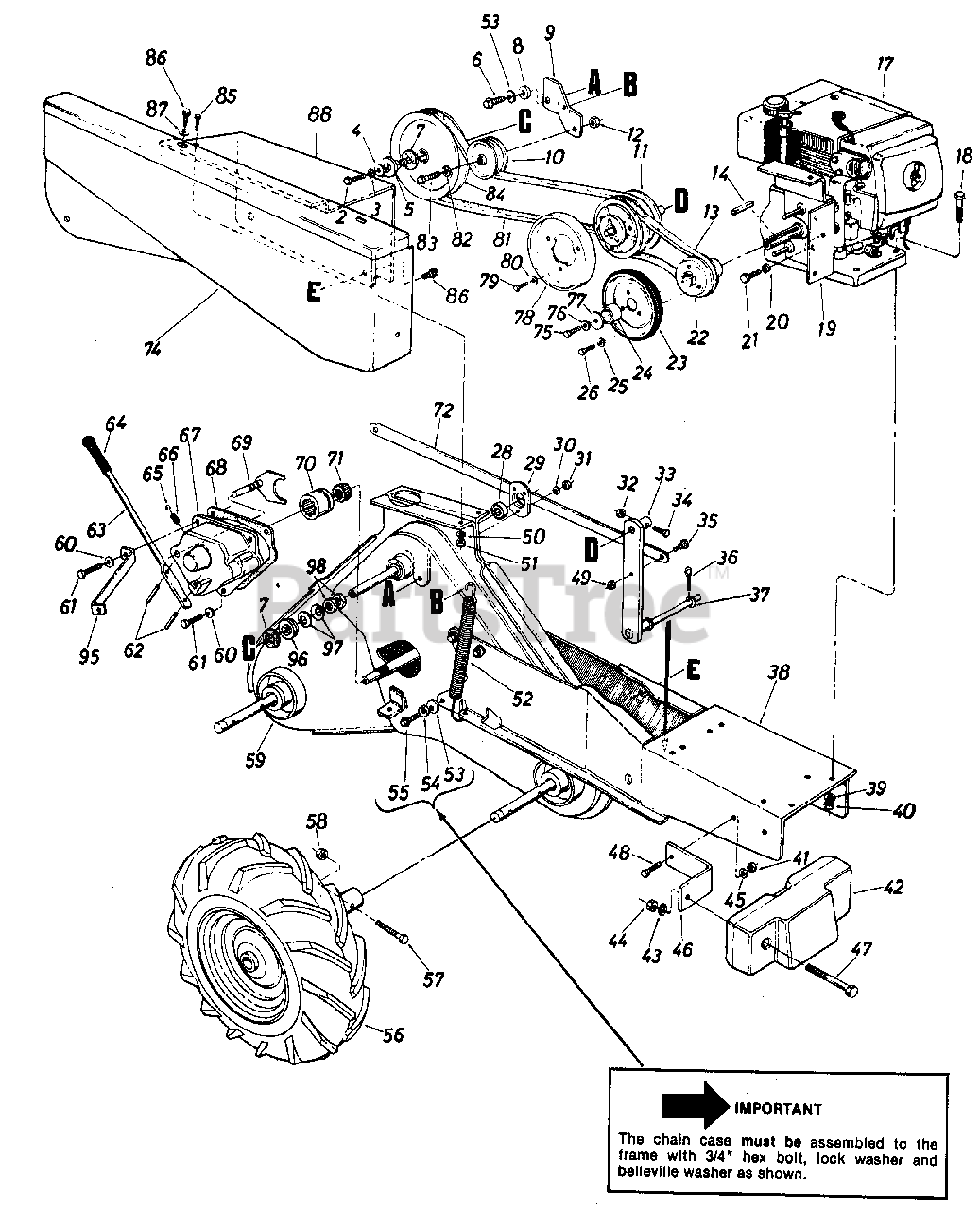

Engine, Wheels & Front Frame Parts Diagram

  • Title

2

MTD 710-0876

Hex L-Bolt 5/16-24 x 1.5" Lg.*

Note: NLA

$

$

Not available

3

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

4

MTD 936-0231

Fl-Wash. 5/16" I.D. x 1.125" O.D.
(Superseded to 736-0231)

$

$

Not available

5

MTD 15727

Friction Disc Ass'y.

Note: NLA

$

$

Not available

6

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

7

MTD 761-0189

Friction Pad

Note: NLA

$

$

Not available

8

MTD 738-0372B

Shoulder Spacer

$9.49

$

In Stock, Qty 20+

0

9

MTD 14740

Idler Bracket

Note: NLA

$

$

Currently unavailable

10

MTD 756-0225

Fl-ldler 2.75" Dia.

$

$

Not available

11

MTD 717-0343

Variable Speed Ass'y.

Note: NLA

$

$

Currently unavailable

12

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

13

MTD 954-0220

V-Belt 5/8" x 27.0" Lg.

$

$

Not available

14

MTD 914-0114

Sq. Key 1/4" x 2.00" Lg.*

$4.49

$

In Stock, only 1 left!

0

17

Engine

$

$

Not available

18

MTD 710-3180

Hex Bolt 5/16-18 x 1.75" Lg.*

$5.49

$

In Stock, Qty 15

0

19

MTD 784-0044

Belt Cover Support Ass'y.

Note: NLA

$

$

Currently unavailable

20

MTD 736-0114

Internal L-Wash. 1/2" I.D.

Note: NLA

$

$

Not available

21

MTD 710-0121

Hex Bolt 1/2-20 x .75" Lg.

Note: NLA

$

$

Not available

22

MTD 756-0296

Engine Pulley Ass'y.

Note: NLA

$

$

Not available

23

MTD 05080AP

Friction Wheel Ass'y.

$30.99

$

In Stock, Qty 12

0

24

MTD 750-0598

Spacer

Note: NLA

$

$

Currently unavailable

25

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

26

MTD 710-3039

Hex Bolt 5/16-18 x .50" Lg.*

$

$

Not available

28

MTD 941-0155

Ball Bearing

$23.99

$

In Stock, Qty 18

0

29

MTD 05034A

Bearing Housing 1-3/8" O.D.

$

$

Not available

30

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

31

MTD 912-0138

Hex Nut 1/4-28 Thd.*
(Superseded to 712-0138)

$

$

Not available

32

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

33

MTD 04837

Variable Speed Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

34

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.*

$3.99

$

In Stock, only 2 left!

0

35

MTD 938-0380

Shld. Bolt 1/2" Dia. x .25" Lg.
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

36

MTD 914-0115

Cotter Pin 1/8" Dia. x 1.0" Lg.*
(Superseded to 714-0115)

$3.99

$

In Stock, Qty 20+

0

37

MTD 736-0237

Fl-Wash. .686" I.D. x 1.25" O.D.

$4.49

$

In Stock, Qty 20+

0

38

MTD 784-0043

Frame Ass'y.

Note: NLA

$

$

Currently unavailable

39

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

40

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

41

MTD 912-0214

Hex Cent. L-Nut 3/8-24 Thd.
(Superseded to 712-0214)

$6.49

$

In Stock, only 3 left!

0

42

MTD 723-0340

Weight

Note: NLA

$

$

Not available

43

MTD 936-0326

Fl-Wash. .50" I.D. x 1.0" O.D.
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

44

MTD 912-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

45

MTD 936-0169

L-Wash. 3/8" I.D.'
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

46

MTD 04860

Weight Mtg. Brkt.

Note: NLA

$

$

Currently unavailable

47

MTD 710-1807

Hex Bolt 1/2-13 x 4.50" Lg.*

$11.99

$

In Stock, only 1 left!

0

48

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.*

$4.49

$

In Stock, Qty 5

0

49

MTD 712-0130

Hex Ins. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 13

0

50

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

51

MTD 912-0138

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 712-0138)

$

$

Not available

52

MTD 932-0384

Spring Idler Bracket

$14.99

$

In Stock, only 4 left!

0

53

MTD 736-0105

Belleville Wash. 3/8" I.D.

$4.49

$

In Stock, Qty 20+

0

54

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

55

MTD 710-0623

Hex Self-Tap Scr. 3/8-16 x .75" Lg.

$4.49

$

In Stock, only 2 left!

0

56

MTD 734-0806

Wheel Ass'y. Comp. R.H.

Note: NLA

$

$

Currently unavailable

56

MTD 734-0807

Wheel Ass'y. Comp. L.H.

Note: NLA

$

$

Currently unavailable

57

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.*

$4.99

$

In Stock, Qty 8

0

58

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

59

MTD 15385

Chain Case Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

60

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

61

MTD 710-1260A

Hex Tap Tite Scr. 5/16-18 x .75" Lg.

$3.99

$

In Stock, Qty 20+

0

62

MTD 915-0247

Headed Spiral Pin 3/16 x 13/16" Lg.

$

$

Not available

63

MTD 747-0265

Engagement Lever

Note: NLA

$

$

Currently unavailable

64

MTD 720-0143

Grip

Note: NLA

$

$

Not available

65

MTD 741-0862

Ball Detent.250" Dia.

$4.49

$

In Stock, only 1 left!

0

66

MTD 932-0863

Compression Spring
(Superseded to 932-05125)

$4.49

$

Usually ships in 3-6 days

0

67

MTD 719-0238

Shift Housing R.H.

Note: NLA

$

$

Not available

67

MTD 719-0237

Shift Housing L.H.

Note: NLA

$

$

Not available

68

MTD 721-0162

Gasket Shift Housing

Note: NLA

$

$

Not available

69

MTD 04858

Shift Yoke Ass'y. R.H.

Note: NLA

$

$

Not available

69

MTD 04859

Shift Yoke Ass'y. L.H.

Note: NLA

$

$

Not available

70

MTD 717-0383

Clutch Dog

Note: NLA

$

$

Not available

71

MTD 717-0382

Clutch Dog Driver

Note: NLA

$

$

Currently unavailable

72

MTD 04841

Control Brkt.

Note: NLA

$

$

Currently unavailable

74

MTD 15287

Shroud Belt Cover

Note: NLA

$

$

Currently unavailable

75

MTD 710-0483

Hex Bolt 7/16-20 x 2.25" Lg.

Note: NLA

$

$

Not available

76

MTD 936-0171

L-Wash. 7/16" I.D.
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

77

MTD 936-0319

Fl-Wash. .44 I.D. x 1.38" O.D.

$11.99

$

Usually ships in 3-6 days

0

78

MTD 04836

Friction Disc

Note: NLA

$

$

Currently unavailable

79

MTD 710-0230

Hex Bolt 1/4-28 x .50" Lg.

$

$

Not available

80

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

81

MTD 754-0268

V-Belt 5/8" x 51" Lg.

Note: NLA

$

$

Not available

82

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

83

MTD 710-0344

Hex Bolt 3/8" x 1.50" Lg.*

$5.99

$

In Stock, only 1 left!

0

84

MTD 756-0410

Input Pulley Chain Case

Note: NLA

$

$

Currently unavailable

85

MTD 910-0195

Hex Bolt 1/4-28 x .62" Lg.

$3.99

$

In Stock, only 1 left!

0

86

MTD 710-0599

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0173

Fl-Wash. 1/4" I.D.

$4.49

$

In Stock, only 4 left!

0

88

MTD 784-0046

Belt Cover Shroud

Note: NLA

$

$

Not available

95

MTD 15291

Brace

Note: NLA

$

$

Currently unavailable

96

MTD 748-0296

Floating Disc

$

$

Not available

97

MTD 736-0352

Spring Bell-Wash.

$

$

Not available

98

MTD 712-0331

Hex Jam Nut 1.0-14

Note: NLA

$

$

Not available
