RB-650 (21AB454B790) - White Outdoor Roto Boss Rear-Tine Tiller (2005) Gear Case Parts Diagram

Roto Boss Rear-Tine Tiller

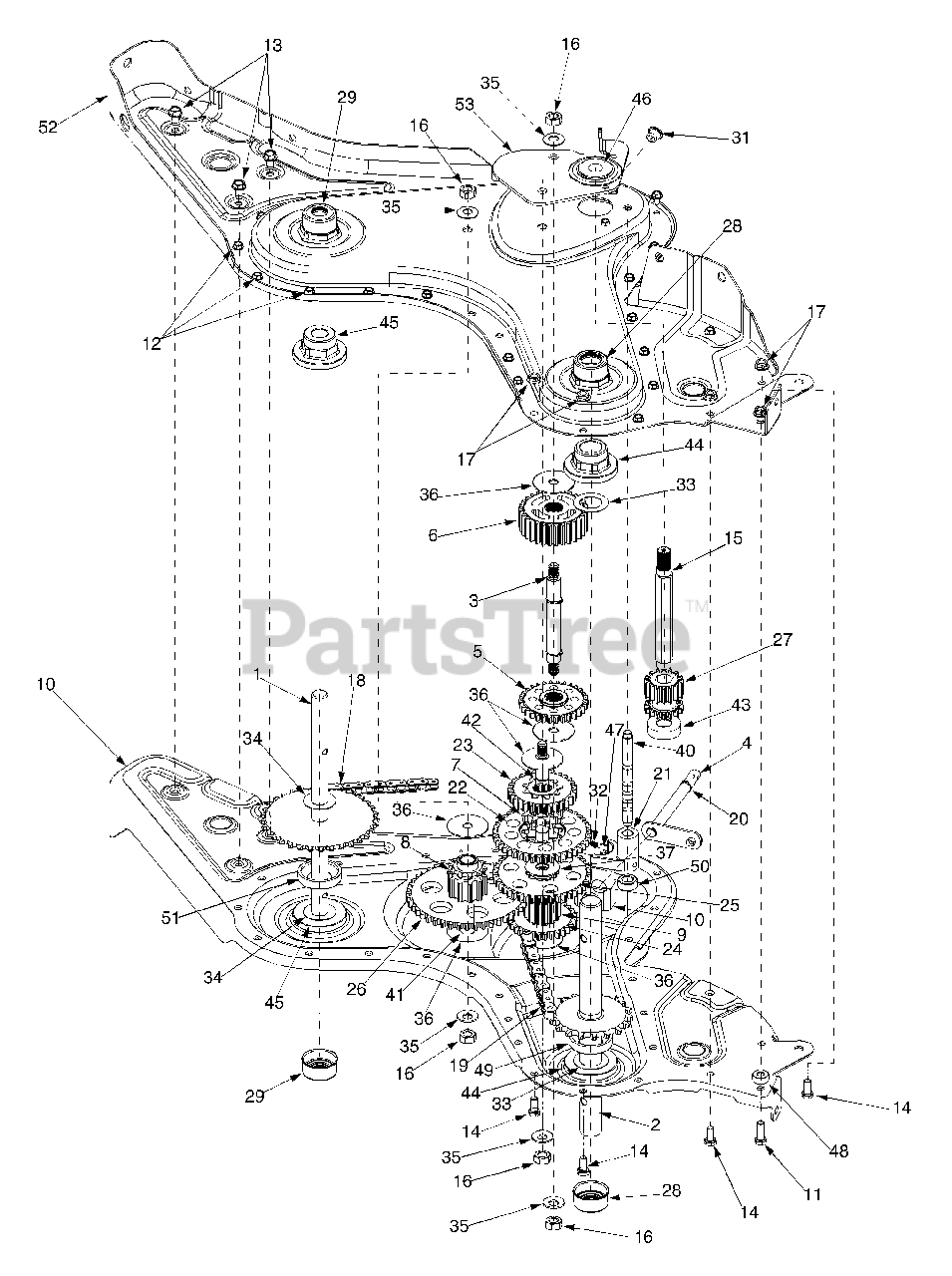

Gear Case Parts Diagram

  • Title
1

MTD 753-05575

Wheel Shaft Ass'y 33T

$587.99

$

Usually ships in 3-6 days

0

2

MTD 611-0021

Tine Shaft Ass'y: 18T
(Superseded to 611-0021A)

$154.99

$

In Stock, only 1 left!

0

3

MTD 611-0128

Jack Shaft Ass'y

$55.99

$

In Stock, only 1 left!

0

4

MTD 611-0129

Input Shaft Ass'y

$58.99

$

In Stock, only 3 left!

0

5

MTD 617-0058

Rev. Idler Gear Ass'y: 30T
(Superseded to 617-0058A)

$80.99

$

Usually ships in 3-6 days

0

6

MTD 617-0059

Tine Idler Gear Ass'y: 30T
(Superseded to 917-0059B)

$139.99

$

In Stock, only 1 left!

0

7

MTD 617-0060

Tine Input Sprocket Ass'y: 9T
(Superseded to 617-0060A)

$162.99

$

In Stock, only 4 left!

0

8

MTD 617-0061

Wheel Input Sprocket Ass'y: 10T

$117.99

$

Usually ships in 3-6 days

0

9

MTD 617-0062

Gear Ass'y: 11T
(Superseded to 617-0062A)

$124.99

$

Usually ships in 3-6 days

0

10

MTD 686-0108A-0637

R.H. Housing Ass'y

$268.99

$

Usually ships in 3-6 days

0

11

MTD 710-0376

Hex Bolt 5/16-18 x 1" Lg.

$3.99

$

In Stock, Qty 20+

0

12

MTD 710-0599

Hex S-Tap Scr. 1/4- 20 x.5"

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0604A

Hex S-Tap Scr. 5/16-18 x.625"

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-3008

Hex Bolt 5/16-18 x.75"

$4.49

$

In Stock, Qty 20+

0

15

MTD 711-1349A

Input Shaft
(Superseded to 711-1349B)

$51.99

$

In Stock, only 1 left!

0

16

MTD 712-0378

Hex Nut 7/16-20

$6.99

$

Usually ships in 3-6 days

0

17

MTD 712-3004A

Flange Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 913-0367

#420 Chain 1/2 Pitch x 50 Links

$51.99

$

In Stock, only 2 left!

0

19

MTD 913-0484

#50 Chain 5/8 Pitch x 54 Links

$74.99

$

In Stock, only 1 left!

0

20

MTD 716-0865

Snap Ring

$4.49

$

In Stock, Qty 20+

0

21

MTD 717-0853A

Shifting Fork

$83.99

$

Usually ships in 3-6 days

0

22

MTD 717-1582A

Spur Gear 44T
(Superseded to 717-1582B)

$100.99

$

In Stock, only 1 left!

0

23

MTD 717-1583

Spur Gear 30T

$53.99

$

In Stock, only 1 left!

0

24

MTD 717-1584

Spur Gear 30T

$42.99

$

In Stock, only 1 left!

0

25

MTD 717-1585

Spur Gear 44T

$84.99

$

In Stock, only 1 left!

0

26

MTD 717-1587

Spur Gear 44T

$97.99

$

Usually ships in 3-6 days

0

27

MTD 717-1594

Spur Gear 16T

$198.99

$

Usually ships in 3-6 days

0

28

MTD 921-0378

Seal 1.0 Shaft

$18.99

$

In Stock, only 2 left!

0

29

MTD 721-0379

Seal.75 Shaft

$18.99

$

In Stock, only 2 left!

0

31

MTD 726-0277

Taper Cap Ring

$4.99

$

Usually ships in 3-6 days

0

32

MTD 932-0496

Compression Spring.50" Leg.

$4.99

$

In Stock, Qty 10

0

33

MTD 936-0163

Thrust Wash. 1.03" I.D. X. 1.62"
(Superseded to 736-0163)

$

$

Not available

34

MTD 936-0351

Fl-Wash.76" I.D. x 1.5" O.D.
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

35

MTD 736-0407

Bell-Wash .45" I.D. x 1.0"

$3.99

$

In Stock, Qty 11

0

36

MTD 736-0518

Thrust Wash. .445 x 1.92 x .060

$10.99

$

Usually ships in 3-6 days

0

37

MTD 736-3088

Fl-Wash. .635" I.D. x 1.59 O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 738-0645

Detent Shaft 1/2" Dia.

$61.99

$

Usually ships in 3-6 days

0

41

MTD 738-0648

Jack Shaft .625 x 2.385

$51.99

$

Usually ships in 3-6 days

0

42

MTD 738-1013

Jack Shaft .625 x 5.0

$52.99

$

Usually ships in 3-6 days

0

43

MTD 941-0600

Ball Bearing

$25.99

$

In Stock, Qty 20+

0

44

MTD 941-0420

Flange Bearing 1.0 x 2.5 x 1.38
(Superseded to 941-0420B)

$38.99

$

In Stock, Qty 11

0

45

MTD 741-0421

Flange Bearing .75 x 2.5 x 1.38

$

$

Not available

46

MTD 941-0563

Ball Bearing .6692 x 5745 x .466

$36.99

$

In Stock, Qty 7

0

47

MTD 741-0862

Detent Ball .250

$4.49

$

In Stock, Qty 20+

0

48

MTD 750-0258

Spacer .315

$11.99

$

In Stock, only 1 left!

0

49

MTD 950-0570

Spacer 1.0 I.D x 2.0 O.D. x .440

$10.99

$

In Stock, Qty 6

0

50

MTD 750-0664

Spacer .505 I.D. x .88 O.D. x .440

$6.99

$

In Stock, only 2 left!

0

51

MTD 950-0671

Spacer .75 x 2.0 x .50

$11.99

$

Usually ships in 3-6 days

0

52

MTD 786-0171-0637

L.H. Chain Case Ass'y
(Superseded to 686-04129-0637)

$229.99

$

Usually ships in 3-6 days

0

53

MTD 786-0238

Gear Positioner Bracket
(Superseded to 786-0238A)

$21.99

$

Usually ships in 3-6 days

0

MTD 753-05331

Gear Case Assembly Complete

$

$

Not available
