RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower Transmission Assembly, With Cable Shift Parts Diagram

Walk-Behind Mower

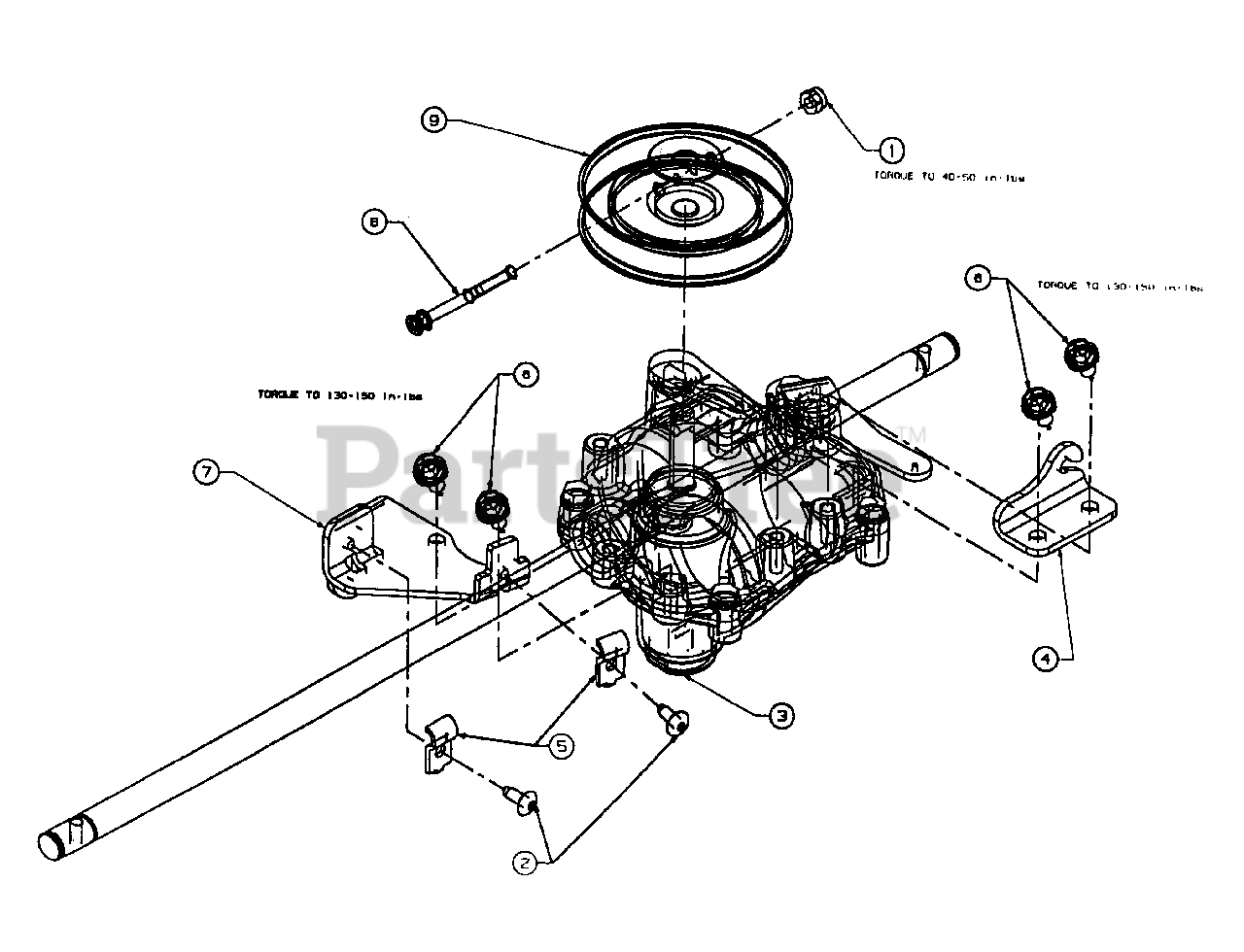

Transmission Assembly, With Cable Shift Parts Diagram

  • Title
1

Cub Cadet 01000523

NUT:NYL:LOCK #10-24
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 01000880

SCR:8:#10-16:0.500: TRUSTRX1
(Superseded to 710-0351)

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 01002035P

TRANS ASM: 3-SPEED: WBM

$

$

Not available

4

Cub Cadet 01002798

BRKT:SPG;TRANS, TUFF TORQ

$

$

Not available

5

Cub Cadet 01002762

CLAMP:CBL: 3/16

$

$

Not available

6

Cub Cadet 01000628

SCR:TT:1/4-20: .500:HX INDWSH
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01003139

BRKT:CLUTCH:TRANS, TUFF TORQ

$

$

Not available

8

Cub Cadet 01003133

SCR:SOC:10-24 X 1.25

$3.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 01002036

PULLEY: TRANS:3/8 V X 3.50 OD

$

$

Not available
