RB 600 (52A-399O101) - Cub Cadet Walk-Behind Mower Engine Starter Parts Diagram

Walk-Behind Mower

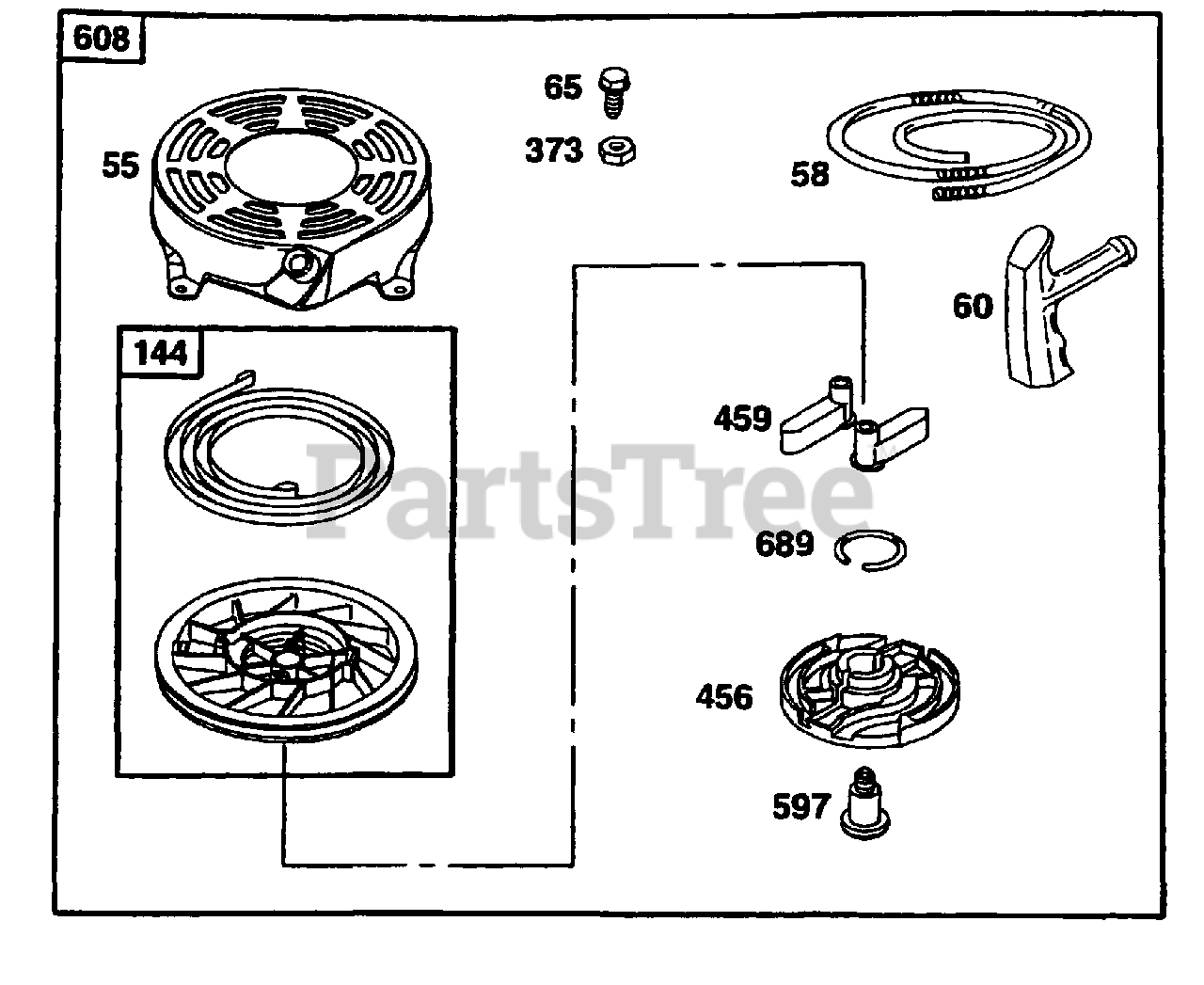

Engine Starter Parts Diagram

  • Title
55

Cub Cadet BS-497440

Rewind Starter Housing
(Superseded to BS-691421)

$64.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-280399

Starter Rope (Cut To Required Length)
(Superseded to BS-280399S)

$5.99

$

In Stock, Qty 8

0

60

Cub Cadet BS-281434

Starter Rope Grip
(Superseded to BS-281434S)

$3.99

$

In Stock, only 4 left!

0

65

Cub Cadet BS-94904

Hex Screw
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 20+

0

144

Cub Cadet BS-498144

Starter Pulley

$19.99

$

In Stock, Qty 20+

0

373

Cub Cadet BS-94908

Hex Nut
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

456

Cub Cadet BS-281503

Spring Retainer
(Superseded to BS-692299)

$4.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-281505

Paul
(Superseded to BS-281505S)

$3.49

$

In Stock, Qty 13

0

597

Cub Cadet BS-94943

Shoulder Screw
(Superseded to BS-691696)

$11.99

$

In Stock, Qty 5

0

608

Cub Cadet BS-497680

Rewind Stater Assembly

$49.99

$

In Stock, Qty 20+

0

689

Cub Cadet BS-263073

Friction Spring
(Superseded to BS-691855)

$4.49

$

In Stock, only 2 left!

0
