RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Wheel Component Parts Diagram

Walk-Behind Mower

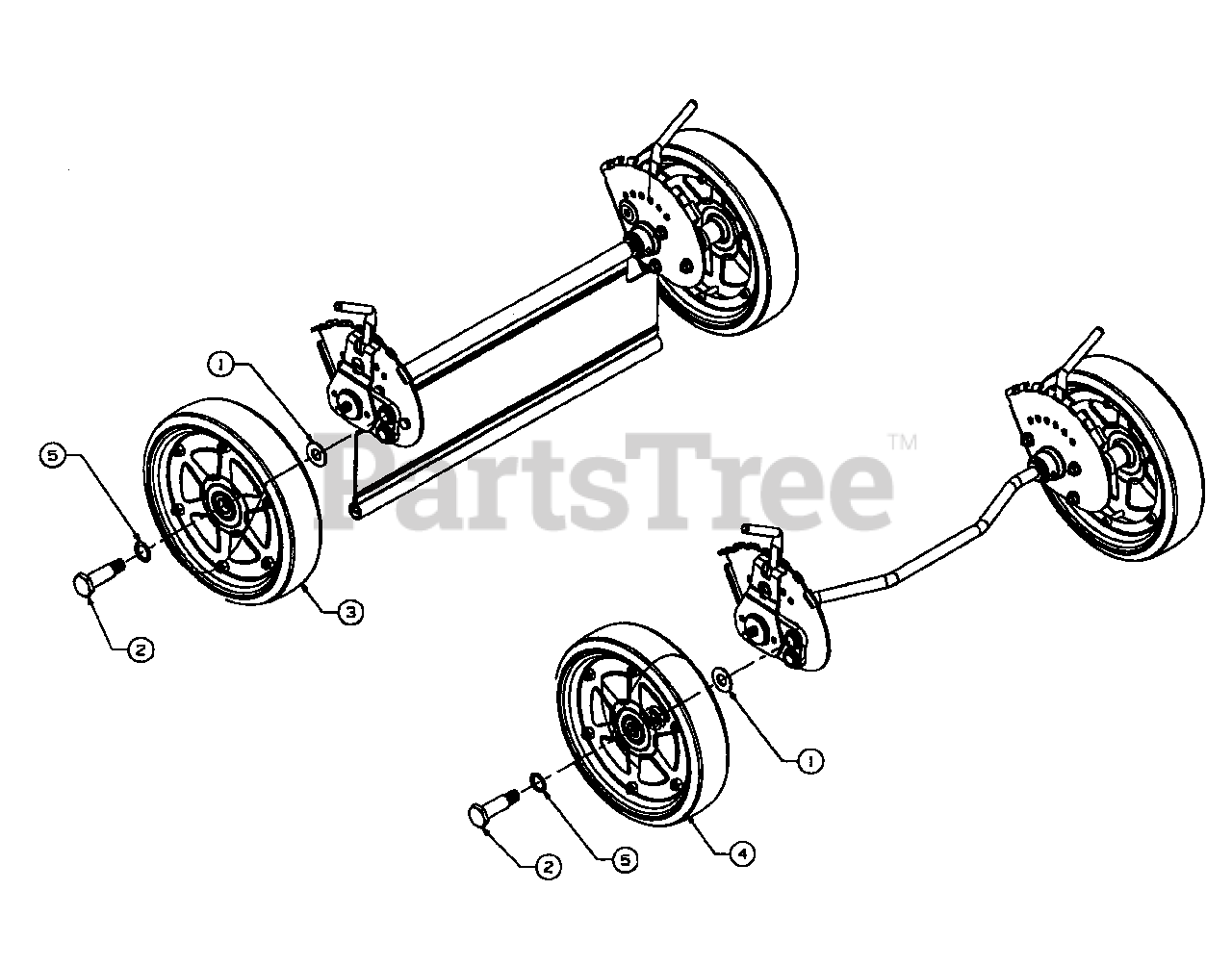

Wheel Component Parts Diagram

  • Title
1

Cub Cadet 00012577

WASHER: THRUST

$5.49

$

In Stock, Qty 12

0

2

Cub Cadet 01000922

BOLT:SHLDR:1/2-20 X 1.48

$

$

Not available

3

Cub Cadet 01003227

WHL:COMP: 9 X 2.125 W/GEAR (BIEGE)

$

$

Not available

4

Cub Cadet 01004183

WHL:COMP: 9 X 2.125 W/O, GEAR (BIEGE)

$

$

Not available

5

Cub Cadet 01004454

WASH: SHIM: .625 X .875 X .031

$

$

Not available

Cub Cadet 01000915

TIRE: 9 X 2.125 ATT

Note: (Not Shown; Quantities Per Wheel)

$

$

Not available

Cub Cadet 01000916

BRG:BALL: 15MM X 28MM X 7MM

Note: (Not Shown; Quantities Per Wheel)

$

$

Not available

Cub Cadet 01000917

SPCR: .635 ID X .86 LG.
(Superseded to 750-3065)

Note: (Not Shown; Quantities Per Wheel)

$9.49

$

Usually ships in 3-6 days

0
