RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Rear Axle Self Propelled Parts Diagram

Walk-Behind Mower

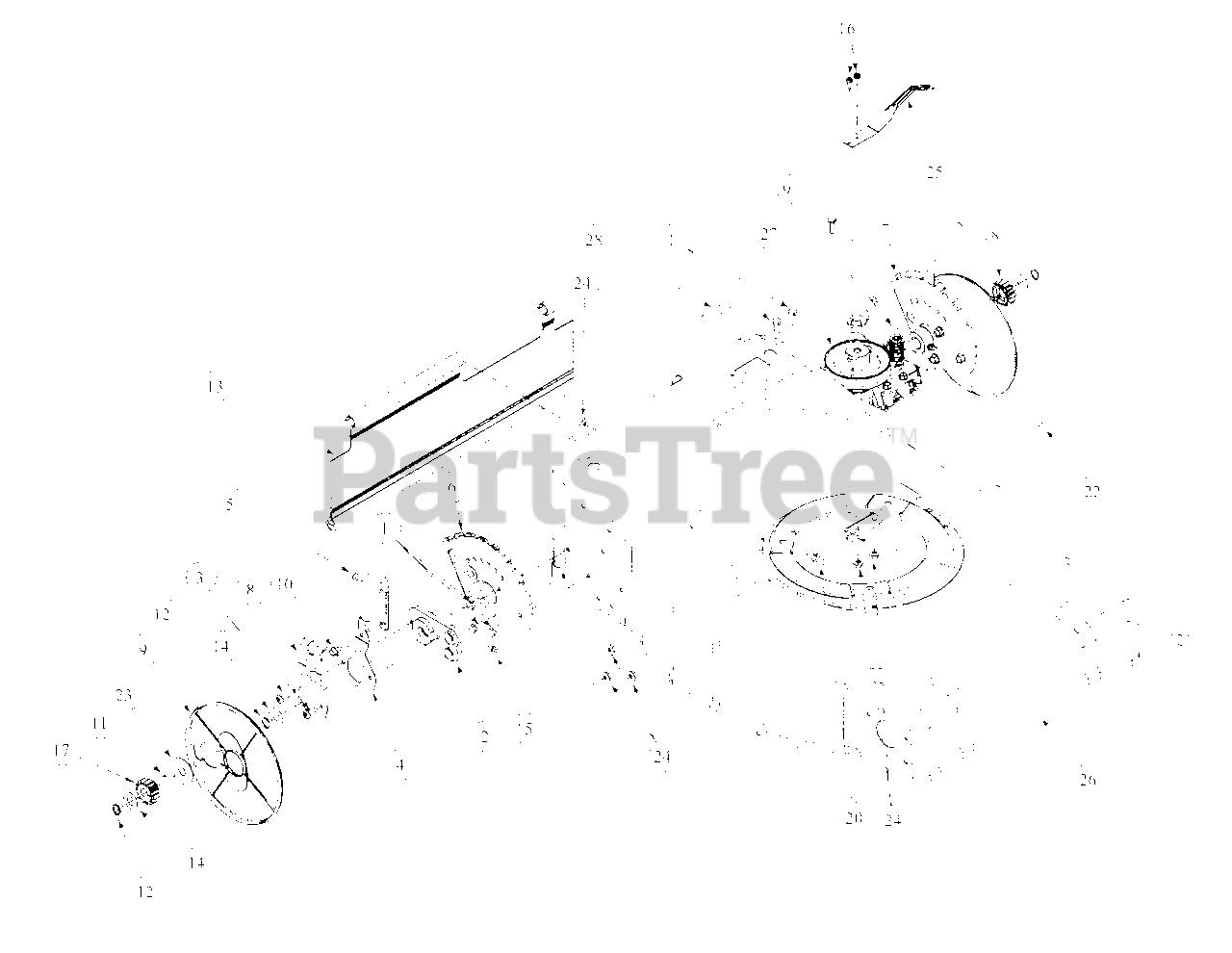

Rear Axle Self Propelled Parts Diagram

  • Title

1

Cub Cadet 01000338

Hex, Cap Screw, 1/4-20, .620
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000861

Pivot, Wheel, Bracket Assembly, 2 Pos

$91.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 01000865

Screw, TT, 1/4-20, .625
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 01000871

Height Adjuster, Spring Plate
(Superseded to 732-0864)

$

$

Not available

5

Cub Cadet 01002829

Height Adjuster, Handle

$

$

Not available

6

Cub Cadet 01002830

Height Adjuster, Bracket, Right Rear

$

$

Not available

7

Cub Cadet 01002831

Height Adjuster, Bracket, Left Rear

$

$

Not available

8

Cub Cadet 01002832

Spring Lever, Support, Bracket

$

$

Not available

9

Cub Cadet 01000920

Drive Wheel, Dust, Cover

$19.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01000925

Screw, 1/4-20, .375, Index Washer
(Superseded to 710-0653)

$4.49

$

In Stock, Qty 8

0

11

Cub Cadet 01000927

Dowel Pin, 3/16 x 3/4

$

$

Not available

12

Cub Cadet 01000928

Retainer Ring, .500 Dia Heavy Duty

$

$

Not available

13

Cub Cadet 01000929

Trailshield, 6.12 x 17.91 Long

$

$

Not available

14

Cub Cadet 01000930

Flat Washer, .508 ID x 1.00 OD x .020
(Superseded to 936-0369)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01000931

Grease Fitting
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

16

Cub Cadet 01001864

Screw, #10-24-24, 0.500, Hex Index Washer
(Superseded to 1767754)

$

$

Not available

17

Cub Cadet 01002033

Pinion Gear, 15T, With Ratchet, R

$

$

Not available

18

Cub Cadet 01002034

Pinion Gear, 15T, With Ratchet, L

$

$

Not available

19

Cub Cadet 01002526

Extension Spring, .75 OD x 2.37

$

$

Not available

20

Cub Cadet 01002688

Belt, Pin, Keeper
(Superseded to 711-1293)

$4.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01004290

Transmission, Spring Bracket, Tuff Torque

$

$

Not available

22

Cub Cadet 01002700

Belt, V Type, 3/8 x 32.92 Long

$

$

Not available

23

Cub Cadet 01002759

Thrust Washer, .510 x 1.562 x .03

$

$

Not available

24

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange, Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 01003822

Shift Spring

$

$

Not available

26

Cub Cadet 01003162

21" Deck

$

$

Currently unavailable

27

Cub Cadet 01002035

Transmission Assembly, 3-Speed
(Superseded to 01002035P)

$

$

Not available

28

Cub Cadet 01004433

Label, Shift, 21

$

$

Not available
