RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Engine Muffler & Air Cleaner Parts Diagram

Walk-Behind Mower

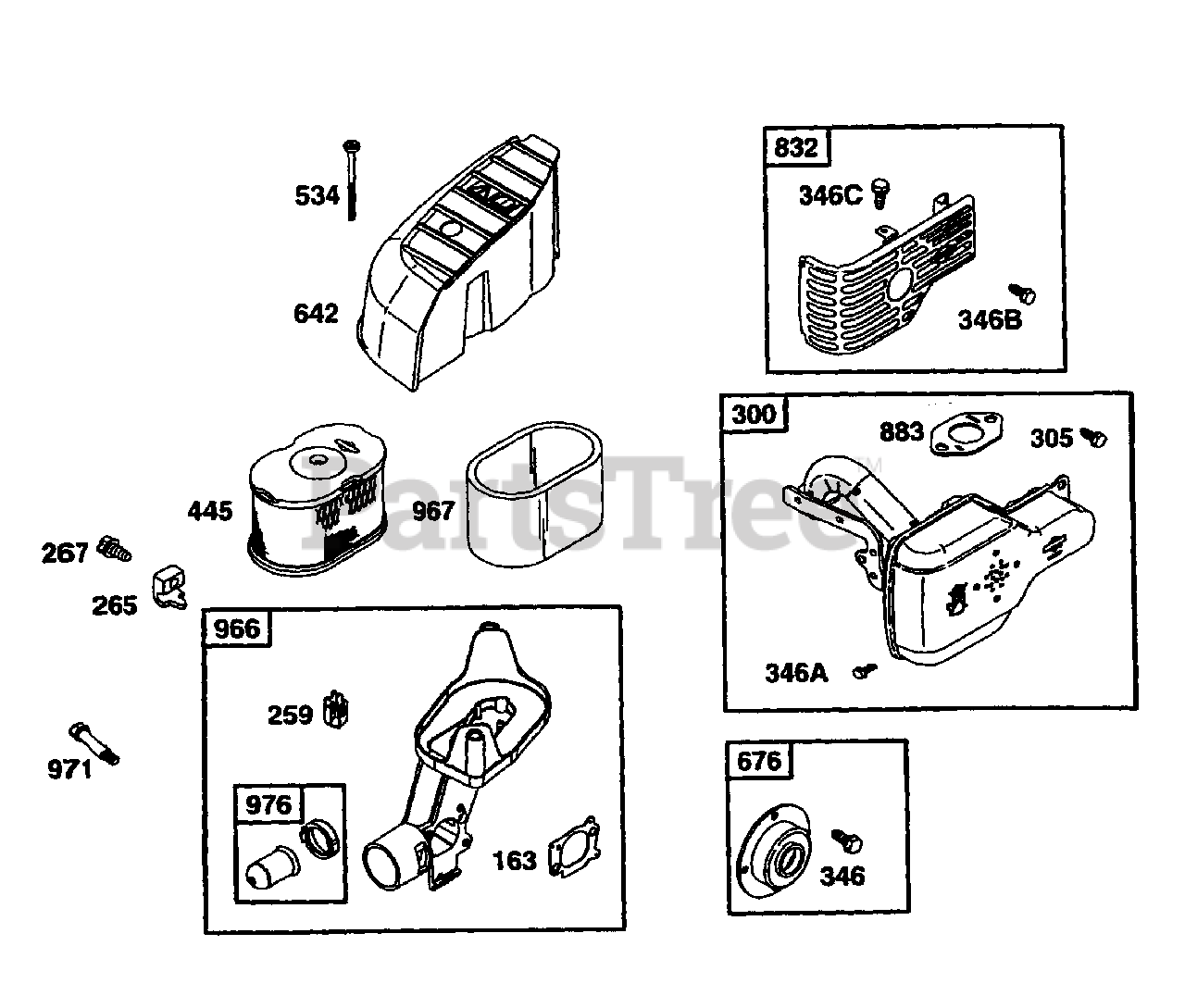

Engine Muffler & Air Cleaner Parts Diagram

  • Title

163

Cub Cadet BS-273364

Air Cleaner Gasket
(Superseded to BS-691894)

$4.99

$

In Stock, Qty 5

0

259

Cub Cadet BS-224348

Casing Clamp Bracket

$

$

Not available

265

Cub Cadet BS-213146

Casing Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

267

Cub Cadet BS-94694

Slotted Hex Screw

$

$

Not available

300

Cub Cadet BS-692276

Muffler

$

$

Currently unavailable

305

Cub Cadet BS-94744

Hex Screw
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

346

Cub Cadet BS-93705

Hex Screw
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

346A

Cub Cadet BS-95062

Hex Screw

$

$

Not available

346B

Cub Cadet BS-94874

Hex Screw
(Superseded to BS-690664)

$5.49

$

In Stock, only 2 left!

0

346C

Cub Cadet BS-94786

Hex Screw
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

445

Cub Cadet BS-690610

Air Filter
(Superseded to BS-697029)

$13.99

$

In Stock, Qty 20+

0

534

Cub Cadet BS-95059

Shoulder Screw
(Superseded to BS-690244)

$3.99

$

In Stock, only 2 left!

0

642

Cub Cadet BS-692692

Air Cleaner Cover

$

$

Not available

676

Cub Cadet BS-397931

Muffler Deflector

$14.99

$

Usually ships in 2-12 days

0

832

Cub Cadet BS-692984

Muffler Guard

$19.99

$

Usually ships in 2-12 days

0

883

Cub Cadet BS-273348

Exhaust Gasket
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

966

Cub Cadet BS-499684

Air Cleaner Base
(Superseded to BS-690243)

$

$

Not available

967

Cub Cadet BS-273356

Pre Filter
(Superseded to BS-273356S)

$5.49

$

In Stock, only 4 left!

0

971

Cub Cadet BS-95103

Shoulder Screw
(Superseded to BS-690255)

$5.99

$

In Stock, only 1 left!

0

976

Cub Cadet BS-496115

Carb Primer
(Superseded to BS-694395)

$4.49

$

In Stock, Qty 20+

0
