RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Engine & Head Parts Diagram

Walk-Behind Mower

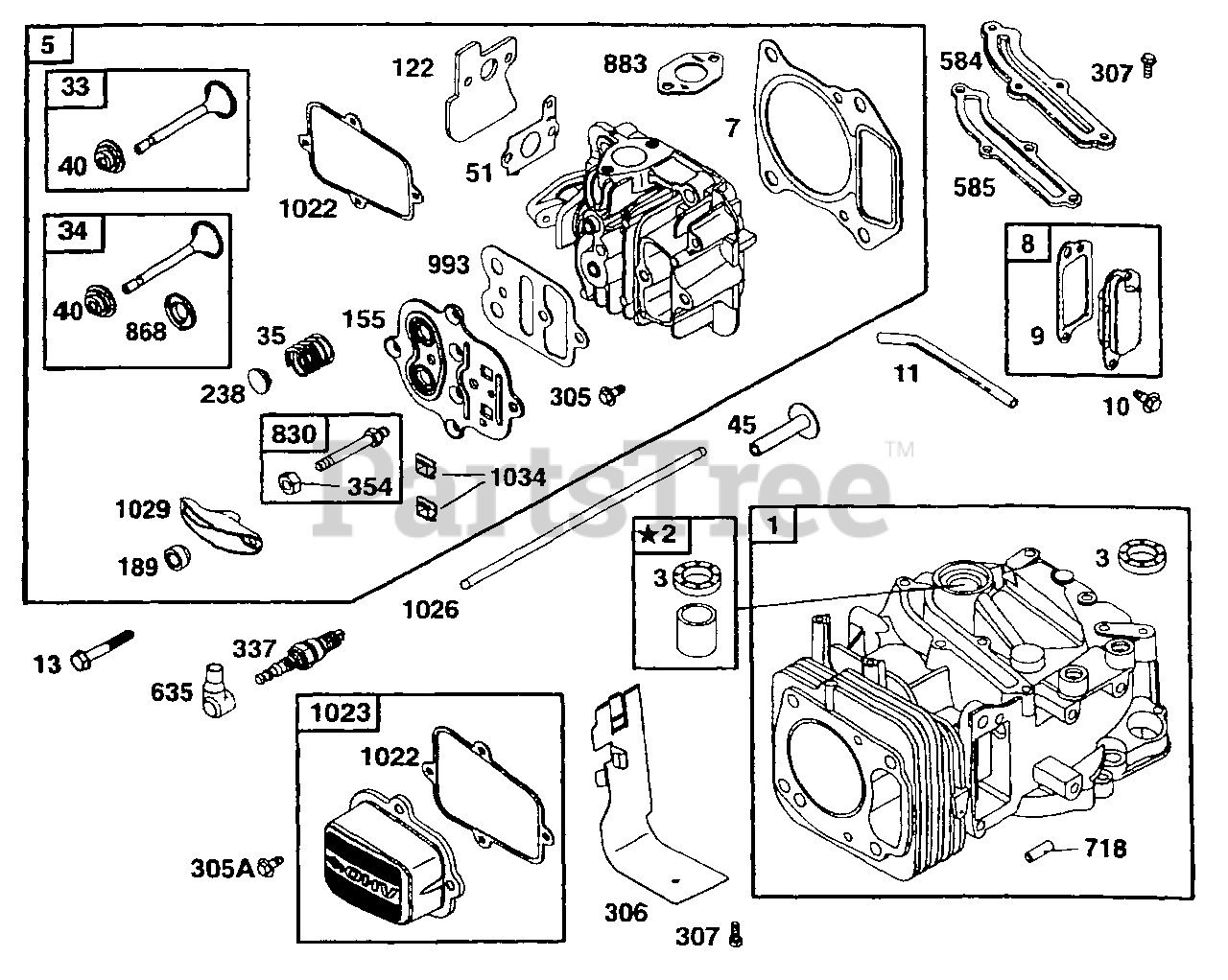

Engine & Head Parts Diagram

  • Title

Cub Cadet 01000951

Complete Engine Assembly
(Superseded to BS-122672-0020)

$

$

Not available

1

Cub Cadet BS-499678

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399269

Bushing

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-299819

Seal-Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 17

0

5

Cub Cadet BS-692801

Cylinder Head

$

$

Currently unavailable

7

Cub Cadet BS-273240

Cylinder Head Gasket
(Superseded to BS-697230)

$9.99

$

In Stock, Qty 6

0

8

Cub Cadet BS-495786

Breather Assembly
(Superseded to BS-590395)

$14.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet BS-94955

Screw-Hex

$

$

Not available

11

Cub Cadet BS-232123

Breather Tube
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

13

Cub Cadet BS-95049

Screw-Hex
(Superseded to BS-691137)

$

$

Not available

33

Cub Cadet BS-499642

Exhaust Valve

$35.99

$

In Stock, only 3 left!

0

34

Cub Cadet BS-499641

Intake Valve
(Superseded to BS-795443)

$27.99

$

In Stock, only 1 left!

0

35

Cub Cadet BS-263149

Valve Spring

$

$

Not available

40

Cub Cadet BS-93312

Valve Retainer
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 11

0

45

Cub Cadet BS-262679

Valve Tappet
(Superseded to BS-690977)

$7.99

$

Usually ships in 2-12 days

0

51

Cub Cadet BS-692688

Intake Gasket

$

$

Currently unavailable

122

Cub Cadet BS-692799

Carburetor Spacer

$14.99

$

In Stock, only 1 left!

0

155

Cub Cadet BS-225325

Cylinder Head Plate
(Superseded to BS-696268)

$

$

Not available

189

Cub Cadet BS-263108

Rocker Arm Ball

$

$

Not available

238

Cub Cadet BS-263131

Valve Cap
(Superseded to BS-691300)

$9.49

$

In Stock, Qty 9

0

305

Cub Cadet BS-94744

Screw-Hex
(Superseded to BS-691108)

$3.49

$

In Stock, Qty 20+

0

305A

Cub Cadet BS-94974

Screw-Hex
(Superseded to BS-691127)

$4.49

$

In Stock, Qty 13

0

306

Cub Cadet BS-225366

Cylinder Shield

$

$

Not available

307

Cub Cadet BS-94515

Screw-Hex

$

$

Not available

337

75-93336

Spark Plug

$

$

Not available

354

Cub Cadet BS-95137

Lock Nut

$

$

Not available

584

Cub Cadet BS-224328

Breather Passage Cover

$

$

Not available

585

Cub Cadet BS-272238

Breather Passage Gasket
(Superseded to BS-691879)

$6.99

$

In Stock, only 1 left!

0

635

Cub Cadet BS-66538

Spark Plug Boot
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 7

0

718

Cub Cadet BS-230192

Locating Pin
(Superseded to BS-690959)

$6.99

$

In Stock, only 1 left!

0

830

Cub Cadet BS-499756

Rocker Arm Stud
(Superseded to BS-694543)

$

$

Not available

868

Cub Cadet BS-498592

Valve Seal
(Superseded to BS-692044)

$

$

Not available

883

Cub Cadet BS-273348

Exhaust Gasket
(Superseded to BS-691893)

$4.49

$

In Stock, Qty 20+

0

993

Cub Cadet BS-273346

Plate Gasket
(Superseded to BS-694088)

$8.49

$

In Stock, Qty 16

0

1022

Cub Cadet BS-273787

Rocker Cover Gasket
(Superseded to BS-691890)

$7.99

$

In Stock, Qty 5

0

1023

Cub Cadet BS-692694

Rocker Cover

$35.99

$

Usually ships in 2-12 days

0

1026

Cub Cadet BS-498597

Push Rod
(Superseded to BS-692045)

$11.99

$

Usually ships in 2-12 days

0

1029

Cub Cadet BS-225246

Rocker Arm
(Superseded to BS-691230)

$9.49

$

Usually ships in 2-12 days

0

1034

Cub Cadet BS-281621

Push Rod Guide
(Superseded to BS-691343)

$9.99

$

In Stock, only 2 left!

0
