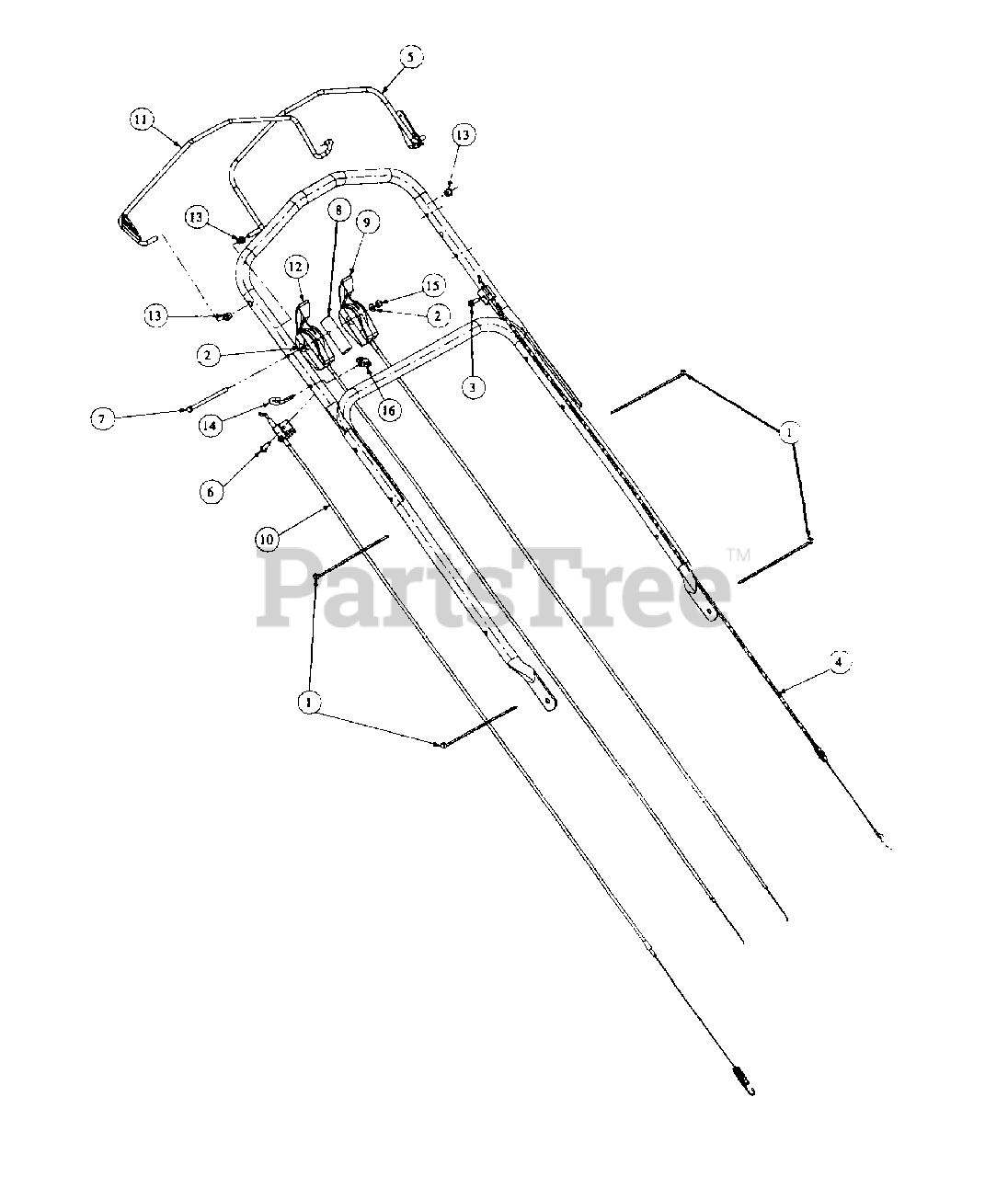

RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower Control Self Propelled, With Cable Shift Parts Diagram

Walk-Behind Mower

Control Self Propelled, With Cable Shift Parts Diagram

  • Title
1

Cub Cadet 00012470

CBL: TIE:3/16 X .05 X 7.4
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000600

FLAT WASHER 1/4 X .630 X .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01000629

SCR:TT:1/4-20:0.750:HX INDWSH
(Superseded to 710-0642)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 0100859

CBL: CONT: 43" LG. BRIGGS

$

$

Currently unavailable

5

Cub Cadet 01002842

LVR:CONT:COMMERCIAL W/0 BBC
(Superseded to 01000860-0637)

$

$

Not available

6

Cub Cadet 01000897

SCR:TT:1/4-20:1.000:HX INDWSH
(Superseded to 710-0788)

$7.49

$

In Stock, only 2 left!

0

7

Cub Cadet 01002774

HHCS:1/4-20 X 3.75: GR5
(Superseded to 710-0825)

$5.49

$

In Stock, only 3 left!

0

8

Cub Cadet 01000900

SPCR:7/8 DIA. X 2.875

$

$

Not available

9

Cub Cadet 01000902

CONT:SHFT:3 SPEED W/CABLE

$

$

Not available

10

Cub Cadet 01000903

CABLE: CLUTCH: S/P ADJ.
(Superseded to 01000903P)

$

$

Not available

11

Cub Cadet 01002857

BAIL: CLUTCH: TRANS,COMM WBM

$

$

Not available

12

Cub Cadet 01001289

CONT:THROT:W/CABLE, BRIGGS

$

$

Not available

13

Cub Cadet 01002527

BUSH: .3125 DIA., SNAP

$

$

Not available

14

Cub Cadet 01002924

BOLT:EYE:1/4-20:BENT ROPE GDE
(Superseded to 710-1205)

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01000446

NUT:HX:1/4-20:GRC:LOCK
(Superseded to 712-0324)

$3.99

$

In Stock, Qty 16

0

16

Cub Cadet 01002925

WING NUT
(Superseded to 720-0279)

$4.49

$

In Stock, Qty 20+

0
