RB 600 (52A-399O100) - Cub Cadet Walk-Behind Mower 21" Cutter Deck Parts Diagram

Walk-Behind Mower

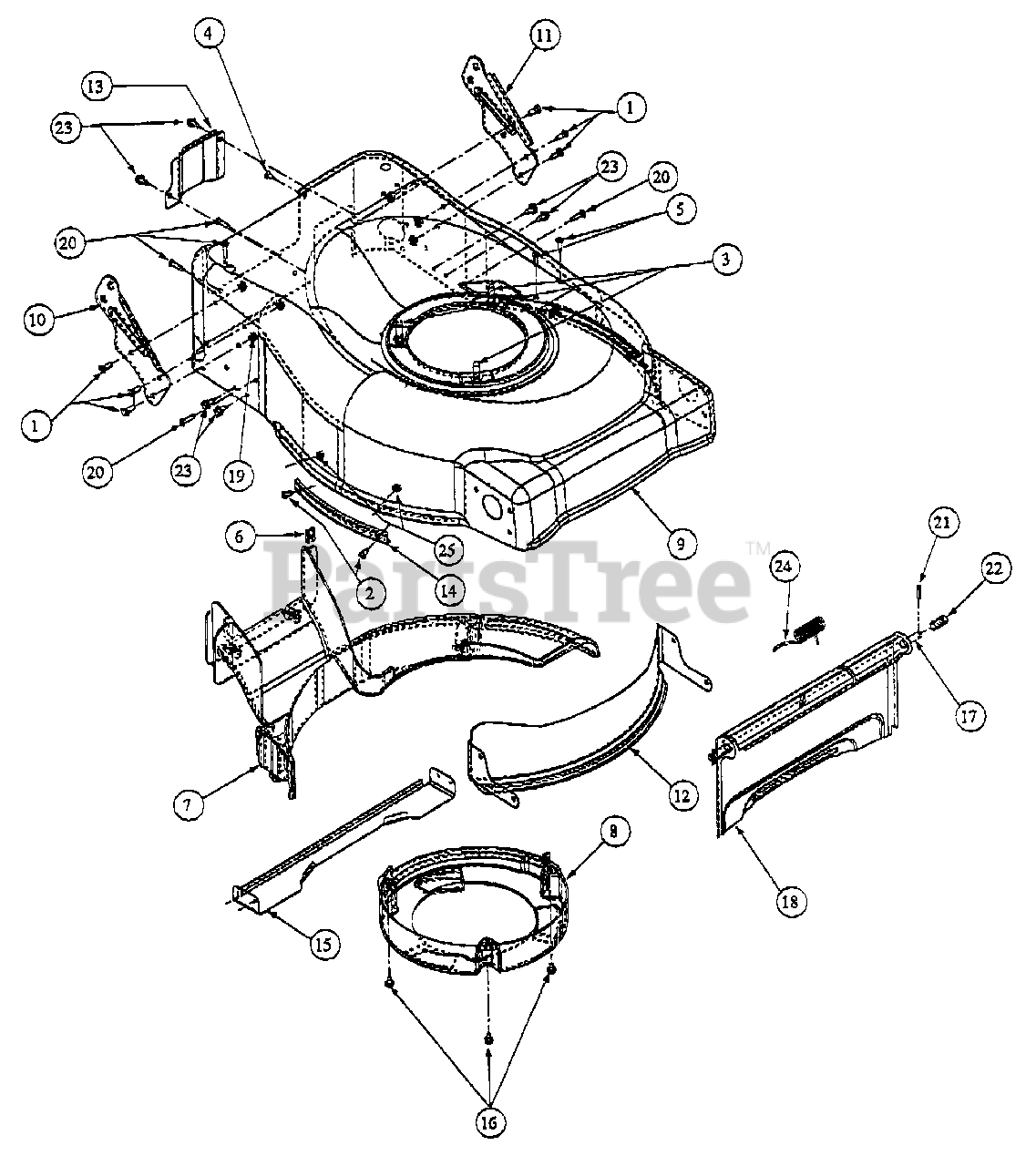

21" Cutter Deck Parts Diagram

  • Title

1

Cub Cadet 01000338

HHCS, 1/4-20, .620, GR5, Standard
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 01000443

Screw Button HD, 1/4-20 x .5
(Superseded to 710-3256)

$10.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 01000812

Screw, TTSems, 3/8-16, 1.250, HXLWS
(Superseded to 710-0502A)

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 01000880

Screw, B, 10-16, 0.500, TRUSTRX1
(Superseded to 710-0351)

$4.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 01000882

Screw, HL, 12-16:0.750, TRUSTRX1
(Superseded to 710-1220)

$4.99

$

In Stock, only 4 left!

0

6

Cub Cadet 01000884

U-Nut, 10-16
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01000885

Baffle, RR, 21" Commercial

$

$

Not available

8

Cub Cadet 01000886

Cover, 21" Commercial

$

$

Not available

9

Cub Cadet 01002786

Deck, 21 Commercial

$

$

Not available

10

Cub Cadet 01002788

Bracket, Handle, RH Commercial

$

$

Not available

11

Cub Cadet 01002789

Bracket, Handle, LH Commercial

$

$

Not available

12

Cub Cadet 01002791

Baffle Front Commercial 10.81 R

$

$

Not available

13

Cub Cadet 01002796

Cover Plate

$

$

Not available

14

Cub Cadet 01002801

Guard, Deck Side Flange

$

$

Not available

15

Cub Cadet 01002803

Bracket, Support Baffle

$

$

Not available

16

Cub Cadet 01000925

Screw, TT, 1/4-20, 0.375, Hex indicator Washer
(Superseded to 710-0653)

$4.49

$

In Stock, Qty 7

0

17

Cub Cadet 01002524

Rod, Pivot, Chute Door, .375 D1

$

$

Not available

18

Cub Cadet 01002793

Door, Grassbag, 21" RB

$

$

Not available

19

Cub Cadet 01002766

Nut, 1/4-20, Hex Flange, Lock Group F
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 01002770

Screw, HL, 12-16. 1.000, TRUSTRX1
(Superseded to 710-0969)

$4.49

$

In Stock, only 2 left!

0

21

Cub Cadet 01002771

Cotter Pin, INT .072 x 1.12 LG
(Superseded to 914-0104)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 01002772

Spacer, .375 x .50 x 1.02 LG
(Superseded to 750-0434)

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01002775

Screw, AB, 1/4-14, 0.625, Hex Indicator Washer

$

$

Not available

24

Cub Cadet 01002782

Spacer, Torsion, LH 0.120 x 15C
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01002925

Hex Nut, 1/4-20 GRC, Lock
(Superseded to 720-0279)

$4.49

$

In Stock, Qty 20+

0
