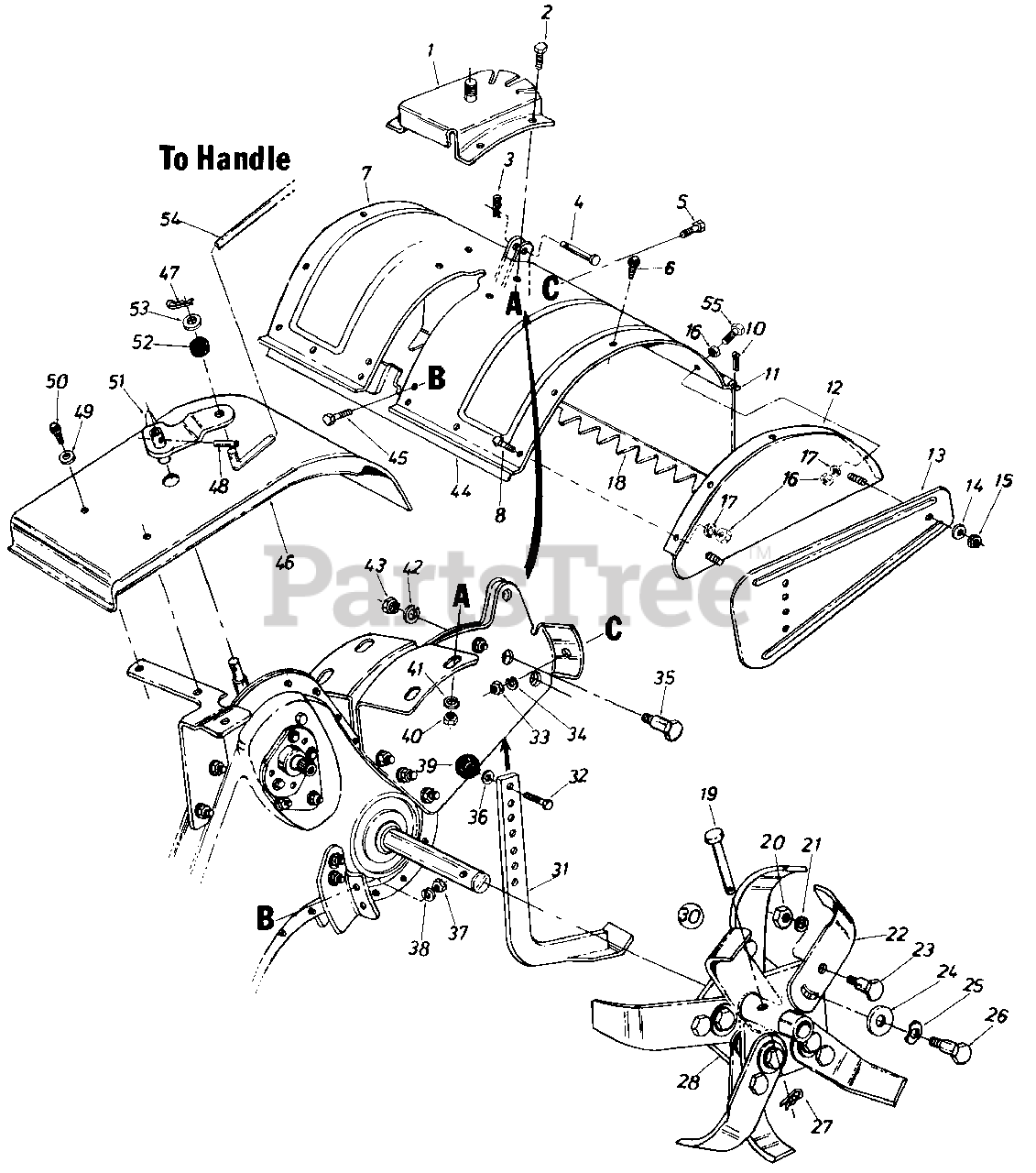

RB-580 (218-430-190) - White Outdoor Roto Boss Tiller (1988) Tine Assembly Parts Diagram

Roto Boss Tiller

Tine Assembly Parts Diagram

  • Title

1

MTD 686-0071

Handle Positioner Brkt. Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 686-0071-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 686-0071-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 686-0071-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0071-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

MTD 686-0071-0638

BRACKET ASSY-POSITIONER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 686-0071-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

MTD 686-0071-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

MTD 686-0071-4015

BRACKET ASSY-POSITIONER - FIRE RED (4015)

$

$

Not available

$

$

2

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

3

MTD 914-0145

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

4

MTD 911-0415

Clevis Pin .375" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

5

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0607

Hex Wash. Tap Scr.

$6.99

$

In Stock, Qty 11

0

7

MTD 784-0156

Tine Shield 18"

Note: NLA

Variations

MTD 784-0156-0483

No Longer Available SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0156-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0156-0499

No Longer Available SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

MTD 784-0156-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0156-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0156-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0156-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

8

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

8

MTD 784-0210

Bracket Reinforcement-18"

Note: NLA

$

$

Not available

10

MTD 914-0507

Cotter Pin 3132" Dia. x .75"*

$4.49

$

In Stock, Qty 17

0

11

MTD 747-0432

Tiller Flap Rod

$13.99

$

Usually ships in 3-6 days

0

12

MTD 984-0179A-0637

End Cover Ass'y.

$

$

Not available

13

MTD 15390

Side Shield

Note: NLA

Variations

MTD 15390-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 15390-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 15390-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 15390-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)

$

$

Not available

MTD 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 15390-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 15390-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 15390-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 15390-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

$

$

14

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

15

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

16

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

18

MTD 786-0113

Tine Shield Hinge Flap

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-4015

REAR TINE SHIELD - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0606

No Longer Available SHIELD-TIN - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 786-0113-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

19

MTD 911-0415

Clevis Pin .375" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

20

MTD 712-0241

Hex Nut 3/8-24 Thd.*

$4.49

$

In Stock, Qty 13

0

21

MTD 936-0217

L-Wash. 3/8" I.D.-H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

22

MTD 742-0305A-0637

13" Dia. Articulating Tine

$20.99

$

In Stock, Qty 20+

0

23

MTD 938-0689

Shld. Bolt 1/2" Dia. x .175

$8.99

$

In Stock, only 2 left!

0

24

MTD 936-0208

Fl-Wash. .51" I.D. x 1.50"
(Superseded to 736-0208)

$

$

Not available

25

MTD 936-0255

Bell-Wash. .515" I.D. x 1.14"
(Superseded to 736-0255)

$

$

Not available

26

MTD 938-0688

Shld. Bolt 1/2" Dia. x .320

$9.99

$

In Stock, Qty 15

0

27

MTD 914-0149B

Intern. Cotter Pin
(Superseded to 714-0149B)

$

$

Not available

28

MTD 784-0160-0637

Tine AdaDter Ass'y. 18"

$115.99

$

In Stock, only 3 left!

0

30

MTD 984-0205A-0637

Tine Ass'y. Comp. 18"

$215.99

$

In Stock, only 2 left!

0

31

MTD 786-0120-0637

Depth Bar Ass'y.

$66.99

$

In Stock, only 1 left!

0

32

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

33

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

34

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

35

MTD 938-0148

Shld. Bolt 1/2" I.D. x .62" Lg.

$16.99

$

Usually ships in 3-6 days

0

36

MTD 936-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.

$7.49

$

Usually ships in 3-6 days

0

37

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

38

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

39

MTD 920-0232

Ball Knob

$10.99

$

In Stock, Qty 10

0

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

41

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

42

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

43

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

45

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

46

MTD 784-0208

Shift Cover

Note: NLA

$

$

Not available

47

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

48

MTD 715-0120

Spring Roll Pin 3/16" Dia. x 1.00" Lg.

$10.99

$

Usually ships in 3-6 days

0

49

MTD 936-0463

Fl-Wash. .281" I.D. x .62"
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

50

MTD 710-0599

Hex Wash. Self-Tap Scr. l/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

51

MTD 784-0173

Shifting Crank Ass'y. D 0 x 2.05

Note: NLA

$

$

Not available

52

MTD 735-0127

Rubber Washer

$6.99

$

Usually ships in 3-6 days

0

53

MTD 936-0133

Fl-Wash. .400" I.D. x 1.250"
(Superseded to 736-0133)

$

$

Not available

54

MTD 747-0664

Control Rod 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

55

MTD 710-0528

Hex Bolt 5/16-18 x 1 1/4" Lg.

$4.49

$

In Stock, Qty 20+

0
