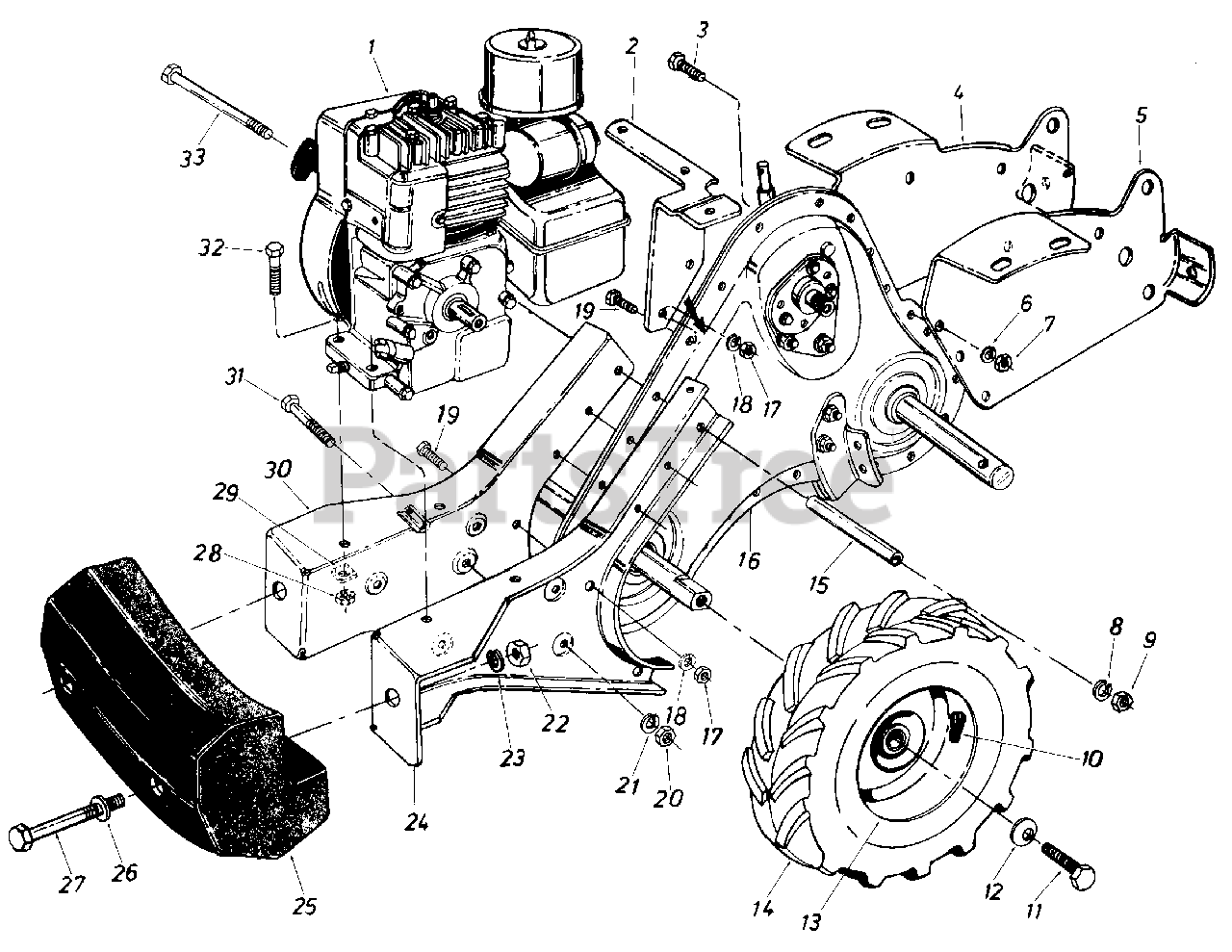

RB-580 (217-430-190) - White Outdoor Roto Boss Tiller (1987) Front Frame & Wheel Assembly Parts Diagram

Roto Boss Tiller

Front Frame & Wheel Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

White Outdoor 784-0199

Belt Cover Mounting Brkt.

$

$

Not available

3

White Outdoor 710-0253

Hex Bolt 3/8-16 x 1.00" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 784-0178

Tine Shield Mtg. Brkt.-R.H.
(Superseded to 784-0178-0637)

Variations

White Outdoor 784-0178-0483

BRACKET-MOUNTING-RH - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-0178-0637

BRACKET-MOUNTING-RH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0178-0638

BRACKET-MOUNTING-RH - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0178-0665

BRACKET-MOUNTING-RH - YARDMAN GREEN (0665)

$

$

Not available

$

$

5

White Outdoor 784-0177

Tine Shield Mtg. Brkt.-L.H.

Variations

White Outdoor 784-0177-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 784-0177-0637

No Longer Available BRACKET-MTG-LH - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0177-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 784-0177-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

8

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

9

White Outdoor 712-0267

Hex Nut 5/16-18" Thd.
(Superseded to 912-3010)

$

$

Not available

10

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

12

White Outdoor 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

13

734-1376

Wheel Rim Ass'y. Only

$

$

Not available

14

White Outdoor 734-1377

L.H. Wheel Ass'y. Comp.

$

$

Not available

734-1378

R.H. Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-1154

Tire Only 13 x 5.0
(Superseded to 734-1154-0901)

Variations

White Outdoor 734-1154-0901

TIRE 13 X 5.0 X 6 - Carlisle (0901)

$

$

Not available

White Outdoor 734-1154-0902

TIRE 13 X 5.0 X 6 - Dico (0902)

$

$

Not available

$

$

15

White Outdoor 750-0688

Spacer 3/8" I.D. x 3.38" Lg.

$

$

Not available

16

White Outdoor 784-0150

Transmission Comp.
(Superseded to 986-0030)

$

$

Not available

17

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

18

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

20

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

21

White Outdoor 736-0217

L-Wash. 3/8" I.D.-H.D.

$4.49

$

In Stock, Qty 8

0

22

White Outdoor 712-0206

Hex Nut 1/2-13 Thd.

$4.49

$

In Stock, Qty 20+

0

23

White Outdoor 736-0921

L-Wash. 1/2" I.D.*

$4.49

$

In Stock, Qty 6

0

24

White Outdoor 784-0155

Engine Mounting Rail-R.H.

Variations

White Outdoor 784-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0155-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0155-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

White Outdoor 723-0381

#40 Counter Weight

$

$

Not available

26

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

27

White Outdoor 710-0382

Hex Bolt 1/2-13 x 5.00" Lg.

$12.99

$

In Stock, only 2 left!

0

28

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

29

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

30

White Outdoor 784-0154

Engine Mounting Rail-L.H.

Variations

White Outdoor 784-0154-0498

No Longer Available RAIL-ENGINE MTG - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 784-0154-0637

No Longer Available RAIL-ENGINE MTG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 784-0154-0665

No Longer Available RAIL-ENGINE MTG - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

White Outdoor 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

32

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50"
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

33

White Outdoor 710-0974

Hex Bolt 5/16-18 x 4.75" Lg.-Gr. 2

$11.99

$

Usually ships in 3-6 days

0
