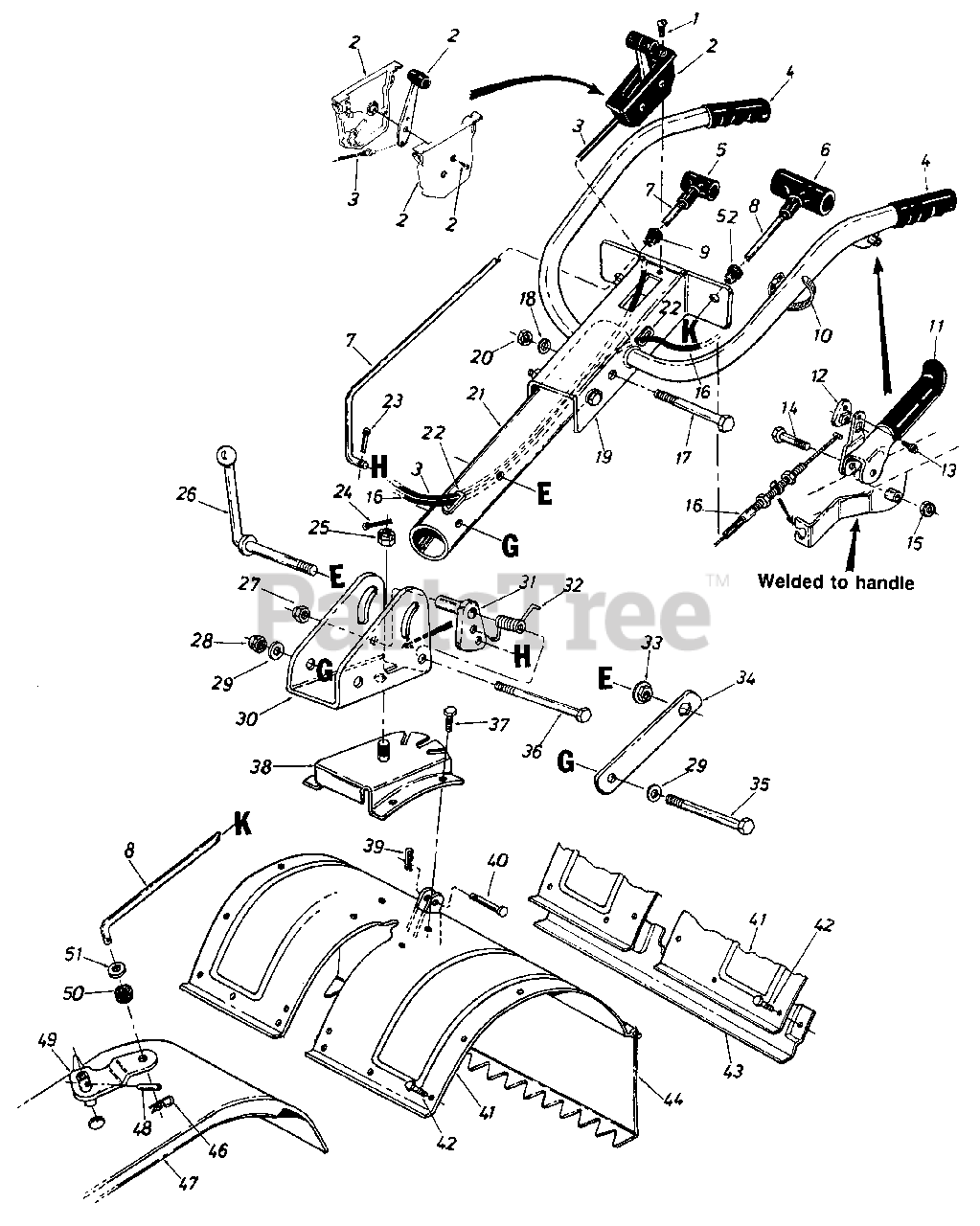

RB-580 (216-430-190) - White Outdoor Roto Boss Tiller (1986) Handle Assembly Parts Diagram

Roto Boss Tiller

Handle Assembly Parts Diagram

  • Title

1

MTD 710-0779A

Truss Mach. AB-Tap. Scr. #10 x .50" Lg.

$4.49

$

In Stock, Qty 12

0

2

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

3

MTD 946-0513A

Throttle Control Wire
(Superseded to 946-0513B)

$19.99

$

In Stock, only 3 left!

0

4

MTD 720-04083

Handle Grip

$14.99

$

In Stock, only 2 left!

0

5

MTD 720-0210A

Small "T" Knob

$15.99

$

In Stock, only 2 left!

0

6

MTD 720-0209

Large "T" Knob

$21.99

$

In Stock, only 2 left!

0

7

MTD 747-0666

Clutch Rod

$25.99

$

Usually ships in 3-6 days

0

8

MTD 747-0664

Control Rod .33 Dia. x 37" Lg.

$23.99

$

Usually ships in 3-6 days

0

9

MTD 735-0228

Snap On Bushing 3/8" Dia.

Note: NLA

$

$

Not available

10

MTD 725-0157

Cable Tie-Self Clinching

$3.99

$

In Stock, only 2 left!

0

11

MTD 984-0202B

Clutch Grip Ass'y.-L.H.
(Superseded to 684-04399A-0637)

Note: *CHOOSE COLOR WHEN ORDERING*

$33.99

$

In Stock, only 4 left!

0

12

MTD 946-0605

Barrel Cable Hold Down

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0919

Hex B-Tap Scr. #10 x .44" Lg.

$4.99

$

In Stock, Qty 7

0

14

MTD 710-3144

Hex Bolt 3/8-16 x 2.0" Lg.

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0266A

Hex Cent. L-Nut 3/8-16 Thd.

$3.99

$

In Stock, Qty 11

0

16

MTD 946-0612

Clutch Control Cable 53" Lg.

$71.99

$

In Stock, only 3 left!

0

17

MTD 710-0194

Hex Bolt 3/8-16 x 3.00" Lg.

Note: NLA

$

$

Not available

18

MTD 936-0217

L-Wash. 3/8" I.D.-H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 8

0

19

MTD 649-0030-0638

Handle Ass'y.

$

$

Not available

20

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

21

MTD 784-0189

Handle Tubing Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0189-0480

TUBING ASSY HANDLE - BRILLIANT GREEN (0480)

$

$

Not available

MTD 784-0189-0498

TUBE ASM-HNDL - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0189-0637

TUBE ASM-HNDL - POWDER BLACK (0637)

$

$

Not available

MTD 784-0189-0638

TUBE ASM-HNDL - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0189-0648

TUBE ASM-HNDL - TECH GRAY (0648)

$

$

Not available

MTD 784-0189-0650

TUBE ASM-HNDL - RED METALLIC (0650)

$

$

Not available

MTD 784-0189-0662

TUBE ASM-HNDL - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0189-0665

TUBE ASM-HNDL - YARDMAN GREEN (0665)

$

$

Not available

MTD 784-0189-0691

TUBE ASM-HNDL - BLACK JACK (0691)

$

$

Not available

MTD 784-0189-4015

TUBING ASSY HANDLE - FIRE RED (4015)

$

$

Not available

$

$

22

MTD 735-0226

Rubber Grommet .66" I.D. x 1.12" O.D.

$10.99

$

Usually ships in 3-6 days

0

23

MTD 914-0507

Cotter Pin 3/32" Dia. x .75" Lg.*

$4.49

$

In Stock, Qty 17

0

24

MTD 914-0111

Cotter Pin 3/32" Dia. x 1.25" Lg.*
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

25

MTD 712-0386A

Hex Slotted Nut 5/8-18 Thd.

$7.99

$

Usually ships in 3-6 days

0

26

MTD 784-0190

Handle Adj. Crank

$24.99

$

Usually ships in 3-6 days

0

27

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .87" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 684-0263A-0637

Handle Pivot Bracket

$

$

Not available

31

MTD 784-0183

Positioner Crank Ass'y.

Note: NLA

$

$

Not available

32

MTD 732-0493

Spring Handle Adj. (Torsion)

$16.99

$

Usually ships in 3-6 days

0

33

MTD 712-0379

Hex Flange Nut 3/8-24 Thd.

$4.99

$

Usually ships in 3-6 days

0

34

MTD 784-0191

Bracket Hex Nut Retainer

$7.49

$

Usually ships in 3-6 days

0

35

MTD 710-0644

Hex Bolt 3/8-16 x 3.25" Lg.
(Superseded to 710-3130)

Note: NLA

$10.99

$

In Stock, only 1 left!

0

36

MTD 710-0521

Hex Bolt 3/8-16 x 3.00" Lg.-Gr. 8

$5.49

$

In Stock, Qty 10

0

37

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

38

MTD 686-0071

Handle Positioner Brkt. Ass'y.

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 686-0071-0480

BRACKET ASSY-POSITIONER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 686-0071-0483

BRACKET ASSY-POSITIONER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 686-0071-0498

BRACKET ASSY-POSITIONER - OLD CUB YELLOW (0498)

$

$

Not available

MTD 686-0071-0637

BRACKET ASSY-POSITIONER - POWDER BLACK (0637)

$

$

Not available

MTD 686-0071-0638

BRACKET ASSY-POSITIONER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 686-0071-0662

BRACKET ASSY-POSITIONER - OYSTER GRAY (0662)

$

$

Not available

MTD 686-0071-0665

BRACKET ASSY-POSITIONER - YARDMAN GREEN (0665)

$

$

Not available

MTD 686-0071-4015

BRACKET ASSY-POSITIONER - FIRE RED (4015)

$

$

Not available

$

$

39

MTD 914-0145

Intern. Cotter Pin
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

40

MTD 911-0415

Clevis Pin .375" Dia.
(Superseded to 711-0415)

$4.99

$

In Stock, Qty 18

0

41

MTD 784-0156

Tine Shield 18"

Note: NLA

Variations

MTD 784-0156-0483

No Longer Available SHIELD-TIN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0156-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0156-0499

No Longer Available SHIELD-TIN - CUB BEIGE (0499)

$

$

Not available

MTD 784-0156-0637

No Longer Available SHIELD-TIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0156-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0156-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

MTD 784-0156-0665

No Longer Available SHIELD-TIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

42

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 784-0210

Bracket Reinforcement-18"

Note: NLA

$

$

Not available

44

MTD 786-0113

Tine Shield Hinge Flap

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 786-0113-0498

Rear Tine Shield - OLD CUB YELLOW (0498)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0716

Rear Tine Shield - CUB YELLOW-99 (0716)

$90.99

$

In Stock, only 4 left!

0

MTD 786-0113-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0650

SHIELD-REAR TINE - RED METALLIC (0650)

$90.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)

$73.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0709

SHIELD-REAR TINE - MASTERCRAFT GREEN (0709)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-4015

REAR TINE SHIELD - FIRE RED (4015)

$83.99

$

Usually ships in 3-6 days

0

MTD 786-0113-0606

No Longer Available SHIELD-TIN - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 786-0113-0662

No Longer Available SHIELD-TIN - OYSTER GRAY (0662)

$

$

Not available

$68.99

$

Usually ships in 3-6 days

0

46

MTD 914-0104

Intern. Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

47

MTD 784-0208

Shift Cover

Note: NLA

$

$

Not available

48

MTD 715-0120

Spring Roll Pin 3/16" Dia. x 1.00" Lg.

$10.99

$

Usually ships in 3-6 days

0

49

MTD 784-0173

Shifting Crank Ass'y. D x 2.05

Note: NLA

$

$

Not available

50

MTD 735-0127

Rubber Washer .33" I.D. x .87" O.D.

$6.99

$

Usually ships in 3-6 days

0

51

MTD 936-0133

Fl-Wash. .400" I.D. x 1.250" O.D.
(Superseded to 736-0133)

$

$

Not available

52

MTD 735-0227

Snap On Bushing 1/2" Dia.

Note: NLA

$

$

Not available
