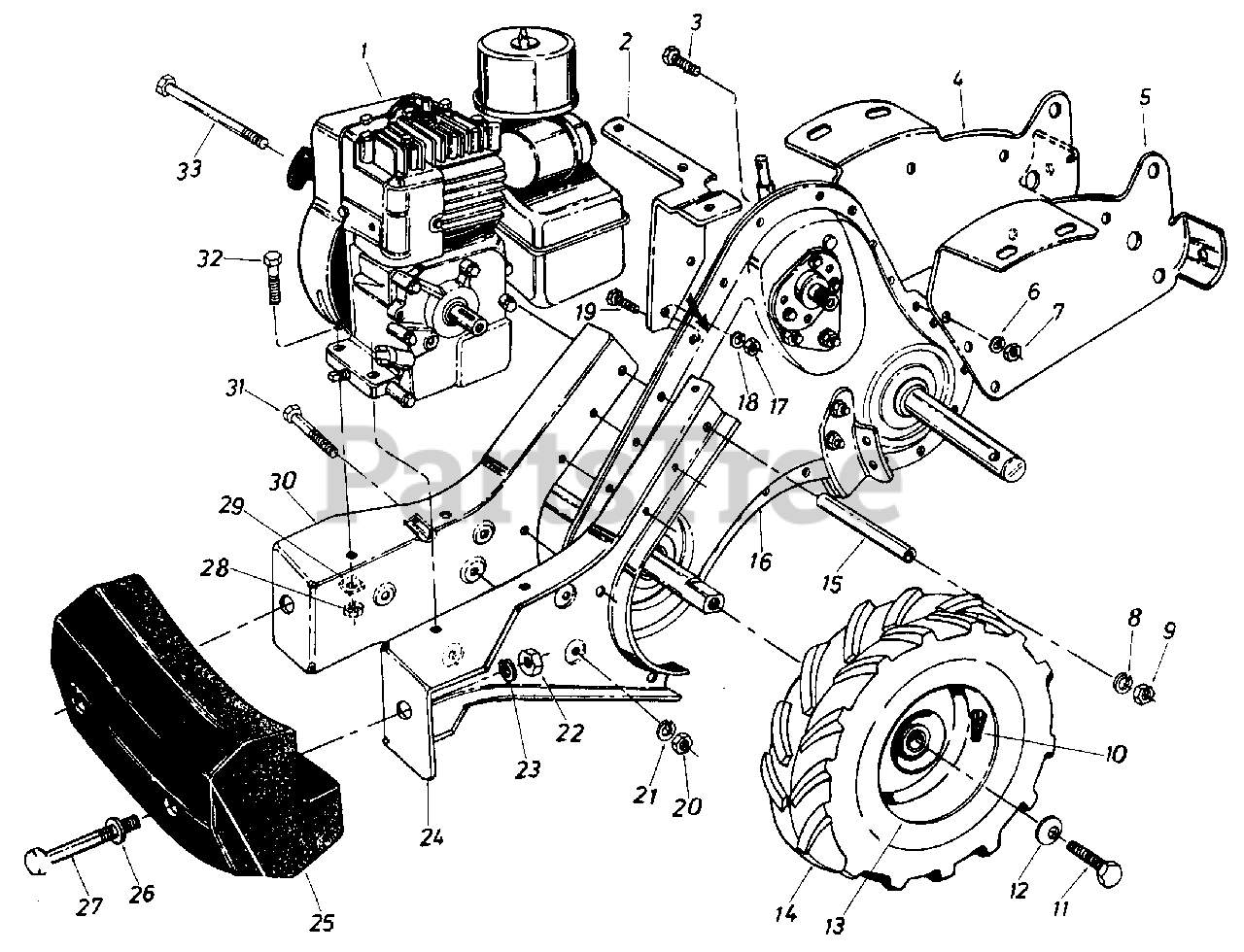

RB-580 (216-430-190) - White Outdoor Roto Boss Tiller (1986) Frame Assembly Parts Diagram

Roto Boss Tiller

Frame Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 784-0199

Belt Cover Mounting Brkt.

Note: NLA

$

$

Not available

3

MTD 910-0253

Hex Bolt 3/8-16 x 1.00" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

MTD 784-0178-0637

Tine Shield Mtg. Brkt.-R.H.

$

$

Not available

5

MTD 784-0177

Tine Shield Mtg. Brkt.-L.H.

Note: NLA

Variations

MTD 784-0177-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 784-0177-0637

No Longer Available BRACKET-MT - POWDER BLACK (0637)

$

$

Not available

MTD 784-0177-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 784-0177-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

6

MTD 936-0169

L-Wash. 3/8" I.D.*
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

7

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

8

MTD 936-0119

L-Wash. 5/16' I.D.*

$4.99

$

In Stock, Qty 20+

0

9

MTD 912-0267

Hex Nut 5/16-18" Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

10

MTD 934-0255

Air Valve

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.*

$4.49

$

In Stock, only 1 left!

0

12

MTD 736-0242

Bell-Wash. .345" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

13

MTD 734-1376

Wheel Rim Ass'y. Only

Note: NLA

$

$

Currently unavailable

14

MTD 734-1377

L.H. Wheel Ass'y. Comp.

Note: NLA

$

$

Not available

14

MTD 734-1378

R.H. Wheel Ass'y. Comp.

Note: NLA

$

$

Currently unavailable

14

MTD 734-1154-0901

Tire Only 13 x 5.0

$

$

Not available

15

MTD 750-0688

Spacer 3/8" I.D. x 3.38" Lg.

Note: NLA

$

$

Not available

16

MTD 784-0150

Transmission Comp.

Note: NLA

$

$

Not available

17

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

18

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

19

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.*

$4.49

$

In Stock, Qty 20+

0

20

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

21

MTD 936-0217

L-Wash. 3/8" I.D.-H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

22

MTD 912-0206

Hex Nut 1/2-13 Thd.*
(Superseded to 712-0206)

$4.49

$

In Stock, Qty 20+

0

23

MTD 936-0921

L-Wash. 1/2" I.D.*
(Superseded to 736-0921)

$4.49

$

In Stock, Qty 5

0

24

MTD 784-0155

Engine Mounting Rail-R.H.

Note: NLA

Variations

MTD 784-0155-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0155-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 784-0155-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

25

MTD 723-0381

#40 Counter Weight

$

$

Not available

26

MTD 936-0326

Fl-Wash. .510" I.D. x 1.0"
(Superseded to 736-0326)

$4.49

$

In Stock, only 4 left!

0

27

MTD 710-0382

Hex Bolt 1/2-13 X 5.00" Lg.*

$12.99

$

In Stock, only 2 left!

0

28

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

29

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

30

MTD 784-0154

Engine Mounting Rail-L.H.

Note: NLA

Variations

MTD 784-0154-0498

No Longer Available RAIL-ENGIN - OLD CUB YELLOW (0498)

$

$

Not available

MTD 784-0154-0637

No Longer Available RAIL-ENGIN - POWDER BLACK (0637)

$

$

Not available

MTD 784-0154-0665

No Longer Available RAIL-ENGIN - YARDMAN GREEN (0665)

$

$

Not available

$

$

31

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.*

$4.49

$

In Stock, Qty 16

0

32

MTD 710-0805

Hex Bolt 5/16-18 x 1.50"*
(Superseded to 710-0805A)

$4.49

$

In Stock, only 3 left!

0

33

MTD 710-0974

Hex Bolt 5/16-18 x 4.75" Lg.Gr. 2

$11.99

$

Usually ships in 3-6 days

0
