RB-580 (216-430-190) - White Outdoor Roto Boss Tiller (1986) Drive Assembly Parts Diagram

Roto Boss Tiller

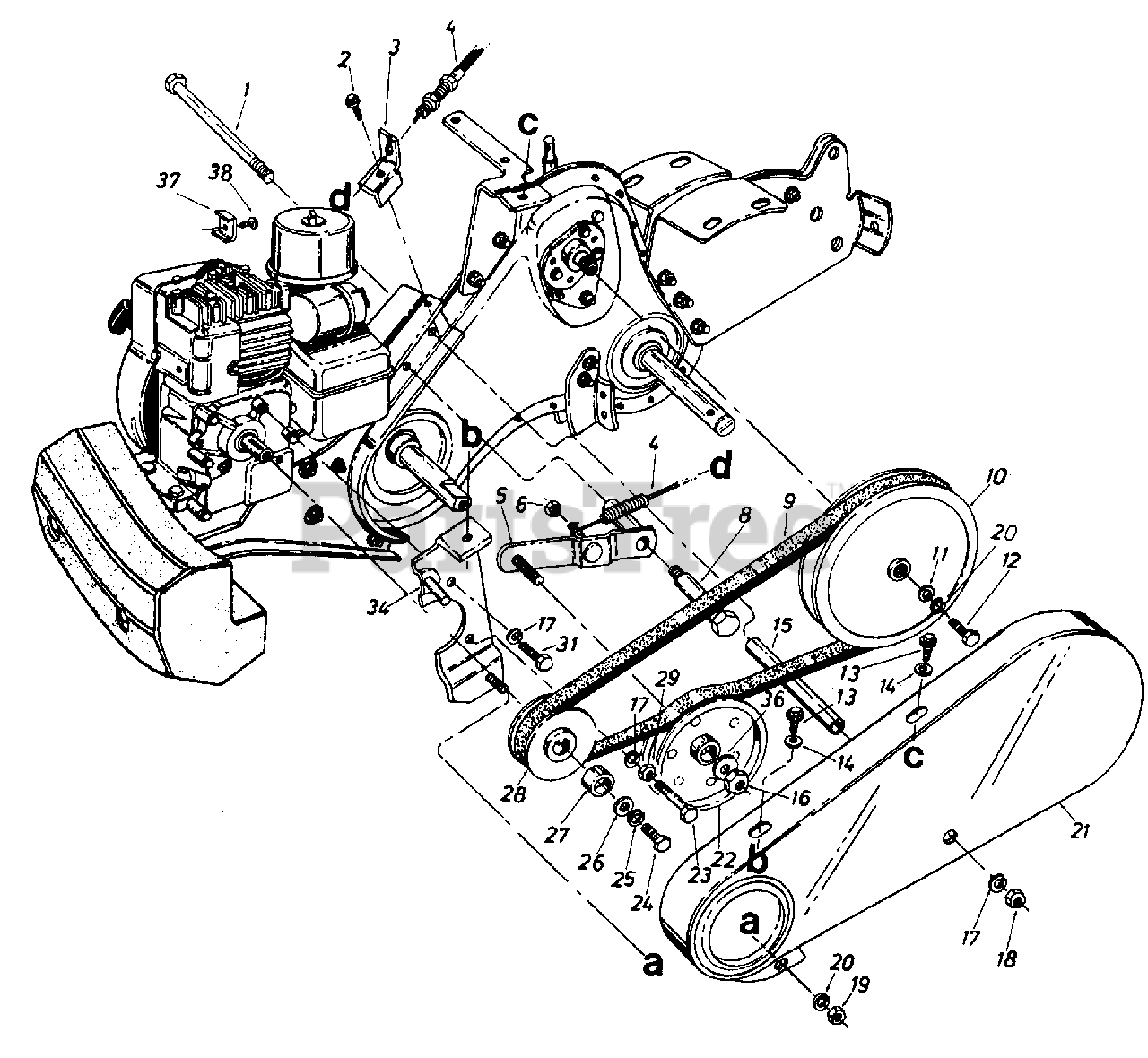

Drive Assembly Parts Diagram

  • Title

1

MTD 710-0974

Hex Bolt 5/16-18 x 4.75" Lg.Gr. 2

$11.99

$

Usually ships in 3-6 days

0

2

MTD 710-0604A

Hex Wash. TT-Tap Scr. 5/16-18 x .62" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 784-0203

Bracket Clutch Cable

Note: NLA

$

$

Not available

4

MTD 946-0612

Clutch Control Cable 53" Lg.

$71.99

$

In Stock, only 3 left!

0

5

MTD 784-0175

Idler Bracket Ass'y.

Note: NLA

Variations

MTD 784-0175-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

6

MTD 912-0158

Hex Cent. L-Nut 5/16-18 Thd.

$3.49

$

In Stock, Qty 18

0

8

MTD 738-0681

Shld. Bolt .500" Dia. x 2.27"

Note: NLA

$

$

Not available

9

MTD 954-0325

V-Belt 1/2" X 58" Lg.

$

$

Not available

10

MTD 756-0472

V-Pulley Split 5/8" I.D.

Note: NLA

$

$

Not available

11

MTD 936-0176

Fl-Wash. 1/4" l.D. x .93" O.D.
(Superseded to 736-0176)

$4.99

$

In Stock, only 4 left!

0

12

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 9

0

13

MTD 710-0599

Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg.

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0463

Fl-Wash. .281" I.D. x .625"
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

15

MTD 750-0688

Spacer 3/8" I.D. x 3.38" Lg.

Note: NLA

$

$

Not available

16

MTD 712-0262

Hex Cent. L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

17

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

18

MTD 936-0123

Fl-Wash. 5/16" I.D.

$6.49

$

Usually ships in 3-6 days

0

19

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

20

MTD 936-0329

L-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 11

0

21

MTD 784-0158A

Belt Cover
(Superseded to 784-0158B)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-0158A-0638

COVER-BELT - MTD/TROY-BILT RED (0638)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0498

Belt Cover, Yellow - OLD CUB YELLOW (0498)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0716

Belt Cover, Yellow - CUB YELLOW-99 (0716)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4021

Belt Cover, Yellow - CUB YELLOW 2 (4021)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0606

COVER-BELT - MAJESTIC ORANGE (0606)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0640

COVER-BELT - CO-OP GREEN (0640)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0650

COVER-BELT - RED METALLIC (0650)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0662

COVER-BELT - OYSTER GRAY (0662)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0665

COVER-BELT - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0691

COVER-BELT - BLACK JACK (0691)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-0709

COVER-BELT - MASTERCRAFT GREEN (0709)

$95.99

$

Usually ships in 3-6 days

0

MTD 784-0158A-4015

COVER-BELT - FIRE RED (4015)

$95.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

22

MTD 756-0405

Fl-ldler w/ Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

23

MTD 710-0409

Hex Bolt 5/16-24 x 1.75"

$4.99

$

Usually ships in 3-6 days

0

24

MTD 710-1039

Hex Bolt 3/8-24 x 1.00" Lg.

$4.49

$

In Stock, Qty 20+

0

25

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

26

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

Usually ships in 3-6 days

0

27

MTD 750-0345

Spacer .758" I.D. x .990"

Note: NLA

$

$

Not available

28

MTD 748-0282

Engine Pulley

Note: NLA

$

$

Not available

29

MTD 912-3057

Hex Nut 5/16-24 Thd.

$6.99

$

In Stock, only 3 left!

0

31

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

34

MTD 784-0197

Belt Keeper Ass'y.

Note: NLA

Variations

MTD 784-0197-0637

No Longer Available GUIDE ASM - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 736-0258

Fl-Wash. 3/8" I.D. x 1.00"

$4.49

$

Usually ships in 3-6 days

0

37

MTD 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

38

MTD 710-0899A

Hex Sems Scr. #10-32 x .62"

$6.99

$

Usually ships in 3-6 days

0
