RB-560 (215-406-190) - White Outdoor Roto Boss Tiller (1985) Drive Assembly Parts Diagram

Roto Boss Tiller

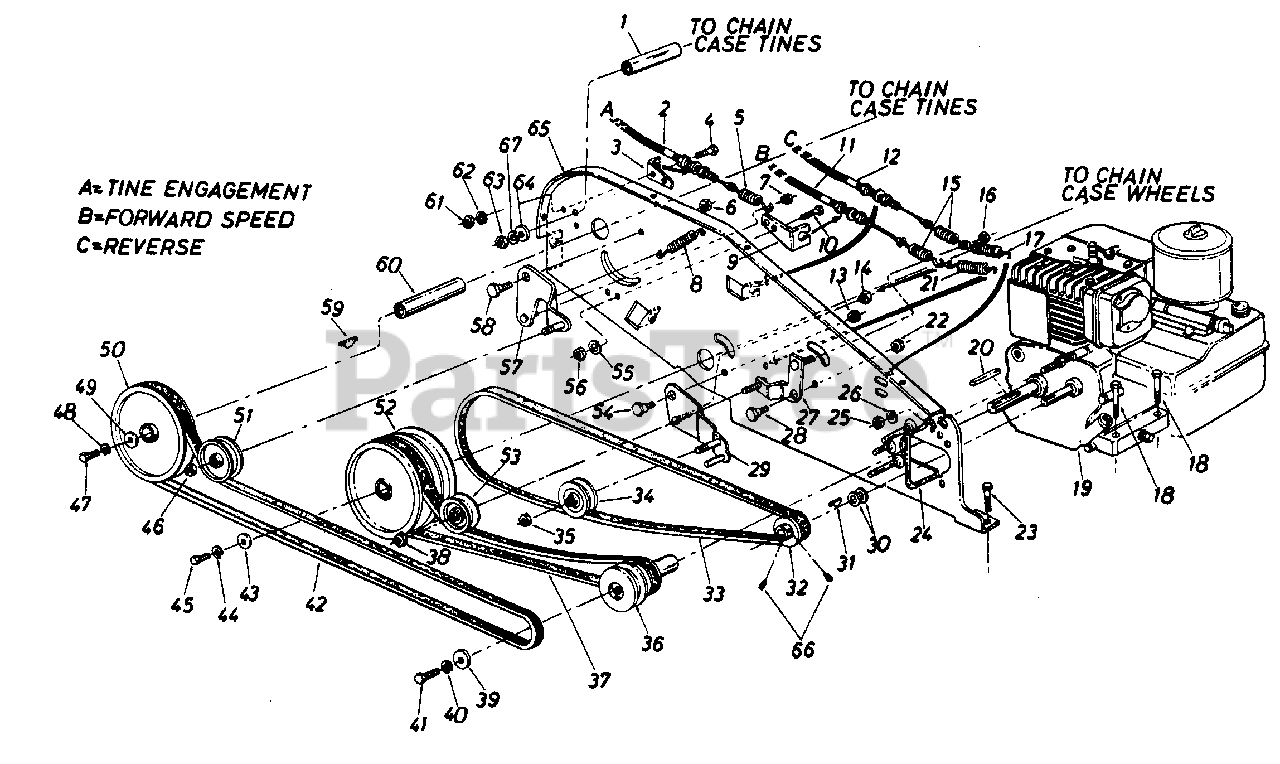

Drive Assembly Parts Diagram

  • Title

1

750-0219

Spacer.375" I.D. x .500" O.D. x 2.00" Lg.

$

$

Not available

2

White Outdoor 746-0535

Clutch Control Cable
(Superseded to 946-0535)

Note: (Tines)

$69.99

$

In Stock, Qty 10

0

3

White Outdoor 15093

Clutch Cable Bracket
(Superseded to 15093C)

$

$

Not available

4

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 732-0387

Extension Spring .50" O.D. x 2.50" Lg.

$

$

Not available

6

White Outdoor 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 712-0107

Hex Cent. L-Nut 1/4" Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

8

White Outdoor 732-0445

Extension Spring .50" O.D. x 1.55" Lg.

$8.99

$

In Stock, only 2 left!

0

9

White Outdoor 15093

Clutch Cable Bracket
(Superseded to 15093C)

$

$

Not available

10

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 746-0571

Clutch Control Cable 42" Lg.
(Superseded to 946-0571)

Note: (Forward)

$69.99

$

In Stock, Qty 5

0

12

White Outdoor 746-0572

Clutch Control Cable 41" Lg.
(Superseded to 946-0572)

Note: (Reverse)

$

$

Not available

13

White Outdoor 712-0266

Hex Cent. Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

14

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

15

Springs

Note: (Part of Ref. No. 11 and 12)

$

$

Not available

16

White Outdoor 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

17

White Outdoor 732-0486

Extension Spring .41" O.D. x 2.05" Lg.

$

$

Not available

18

White Outdoor 710-0442

Hex Bolt 5/16-18 x 1.50" Lg.*
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

19

5 H.P. Engine B&S 130292-1785-01

$

$

Not available

20

White Outdoor 714-0105

Sq. Key 3/16 x 1.00" Lg.
(Superseded to 914-0105)

$3.99

$

Usually ships in 3-6 days

0

21

White Outdoor 732-0433

Extension Spring .50" O.D. x 2.75" Lg.

$

$

Not available

22

White Outdoor 712-0266

Hex Cent. L-Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

747-0507

Belt Keeper

$

$

Not available

25

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

26

White Outdoor 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 784-0131

Idler Brkt. Ass'y.

Note: (Wheel Reverse)

Variations

White Outdoor 784-0131-0637

No Longer Available BRACKET ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

28

White Outdoor 738-0147

Shld. Bolt .500" Dia. x .170

$

$

Not available

29

White Outdoor 784-0127

Idler Brkt. Ass'y.

Note: (Wheel Forward)

Variations

White Outdoor 784-0127-0637

No Longer Available BRACKET ASSY-IDLER - POWDER BLACK (0637)

$

$

Not available

$

$

30

White Outdoor 736-0326

Fl-Wash. .510" I.D. x 1.0" O.D.

$4.49

$

In Stock, only 2 left!

0

31

White Outdoor 714-0131

#5 Hi-Pro-Key 1/8" x 5/8" Dia.

$

$

Not available

32

White Outdoor 756-0386

1/2" V-Pulley 2.25" O.D. x .503" I.D.

$

$

Not available

33

White Outdoor 754-0109

"V"-Belt 1/2" X 43.0" Lg.
(Superseded to 954-0109)

$42.99

$

In Stock, Qty 6

0

34

White Outdoor 756-0166

"V"-Belt Idler 2.62" O.D.
(Superseded to 756-1035A)

$34.99

$

In Stock, only 3 left!

0

35

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

36

White Outdoor 756-0465

1/2" "V" Pulley Ass'y.

$

$

Not available

37

White Outdoor 754-0190

"V"-Belt 1/2" X 39.0" Lg.
(Superseded to 954-0190)

$32.99

$

In Stock, Qty 5

0

38

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

39

White Outdoor 736-0231

Fl-Wash. .344" I.D. x 1.125" O.D.

$4.99

$

In Stock, Qty 20+

0

40

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

41

White Outdoor 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.*
(Superseded to 710-0888)

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 754-0195

"V"-Belt 1/2" X 54.0" Lg.
(Superseded to 954-0195A)

$54.99

$

In Stock, only 4 left!

0

43

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

44

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

45

White Outdoor 710-0412

Hex Bolt 1/4-28 X .75" Lg.

$5.99

$

In Stock, Qty 9

0

46

White Outdoor 712-0116

Hex Ins. L-Nut 3/8-24 Thd.

$4.99

$

In Stock, Qty 6

0

47

White Outdoor 710-0412

Hex Bolt 1/4-28 X .75" Lg.

$5.99

$

In Stock, Qty 9

0

48

White Outdoor 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

49

White Outdoor 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

50

White Outdoor 756-0389

Fl-Pulley w/ Flanges 6.0" O.D.
(Superseded to 756-0389A)

$

$

Not available

51

White Outdoor 756-0405

Fl-Idler w/ Flanges 3.75" O.D.

$71.99

$

Usually ships in 3-6 days

0

52

White Outdoor 756-0464

Double Fl-Pulley 5/8" I.D. x 6.0" O.D.

$

$

Not available

53

White Outdoor 756-0313

Fl-Idler with Flanges 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

54

White Outdoor 738-0147

Shld. Bolt .500" Dia. x .170"Lg.

$

$

Not available

55

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

56

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

57

White Outdoor 784-0129

Idler Brkt. Ass'y.-Tines

Variations

White Outdoor 784-0129-0637

No Longer Available BRKT ASSY-IDLER TI - POWDER BLACK (0637)

$

$

Not available

$

$

58

White Outdoor 738-0183

Shld. Bolt. .500" Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

59

White Outdoor 714-0388

61 Hi-Pro-Key 3/16" x 5/8" Dia.
(Superseded to 914-0388)

$7.99

$

In Stock, Qty 20+

0

60

White Outdoor 750-0551

Spacer .647" I.D. x 2.75" Lg.

$

$

Not available

61

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

62

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

63

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$

$

Not available

64

White Outdoor 736-0185

Fl-Wash. .406" I.D. x .750" O.D.

$3.99

$

In Stock, Qty 20+

0

65

White Outdoor 14991

Side Plate Ass'y.

$

$

Not available

66

White Outdoor 710-0938

Set Scr. 1/4-28 X .25" Lg.

$

$

Not available

67

White Outdoor 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

MTD 777-4553

"WHITE" Plastic Logo

$

$

Not available

MTD 777-4539

"ROTO BOSS 560" Label

$

$

Not available

777-3774

Throttle Label

$

$

Not available

777-3650

Tine Label-Left Handle

$

$

Not available

777-4031

Choke Label

$

$

Not available

777-2751

Tilling Depth Label

$

$

Not available

777-4455

Tine Shield Caution Label

$

$

Not available
